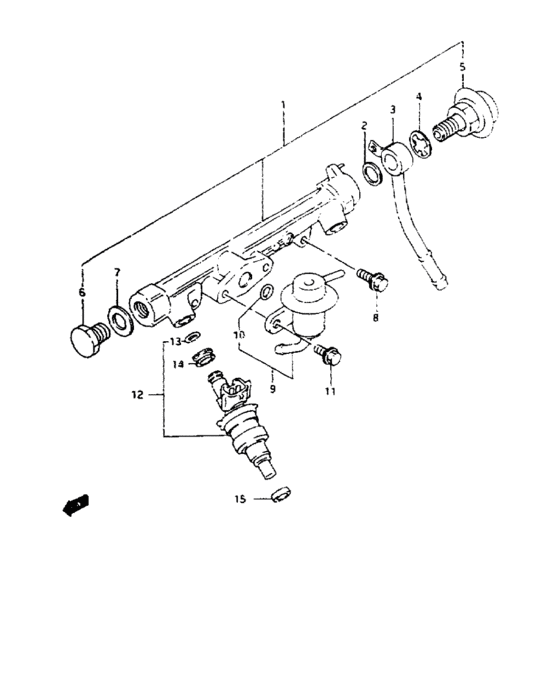

Delivery pipe (DELIVERY PIPE) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15700-81812-000
パイプセット,デリバリ
|
15700-81812-000 |
— | ||
|
2
|
2
13925-85553-000 GASKET,UNION BOLTGasket |
13925-85553-000 |
from US $1.60 |
||
|
3
|
3
15830-80F00-000
ジョイント,デリバリ
|
15830-80F00-000 |
— | ||
|
4
|
4
13926-84151-000
Gasket,joint
|
13926-84151-000 |
— | ||
|
5
|
5
15620-84150-000
ダンパ,フューエルパルセーシヨン
|
15620-84150-000 |
— | ||
|
6
|
6
13926-85551-000
プラグ,デリバリパイプ
|
13926-85551-000 |
— | ||
| replacement | |||||
|
6
|
6
09247-12003-000 PLUGPlug (12x13) |
09247-12003-000 |
US $0.96 |
||
|
7
|
7
09168-12013-000 GASKET(11.8X22X1.2)Gasket, union |
09168-12013-000 |
from US $1.12 |
||
|
8
|
8
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
8
|
8
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
15610-80F00-000
REGULATOR ASSY,FUEL PRESSURE
|
15610-80F00-000 |
— | ||
|
10
|
10
15710-09300-000 O-RING |
15710-09300-000 |
from US $1.60 |
||
|
11
|
11
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
15710-64D00-000 INJECTOR ASSY,FUEL |
15710-64D00-000 |
US $340.40 |
||
|
13
|
13
15710-09300-000 O-RING |
15710-09300-000 |
from US $1.60 |
||
|
14
|
14
15720-09300-000 GROMMET |
15720-09300-000 |
from US $1.52 |
||
|
15
|
15
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.32 |
||
