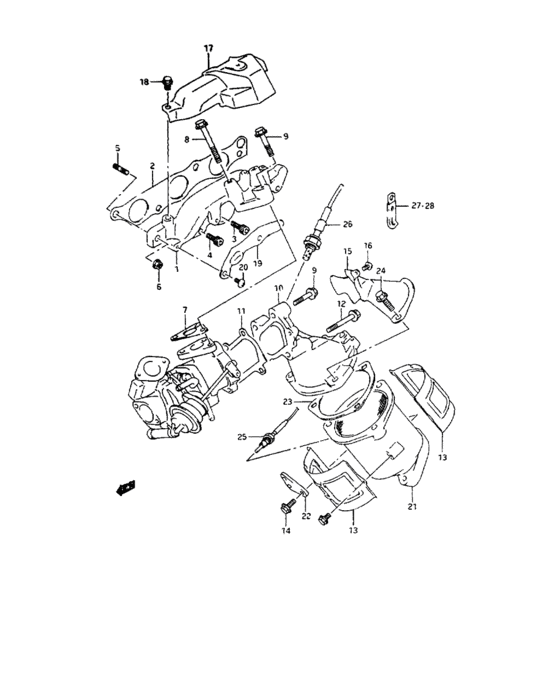

Exhaust manifold (EXHAUST MANIFOLD) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-54A50-000
MANIFOLD,EXH
|
14111-54A50-000 |
— | ||
|
2
|
2
14141-54A50-000 GASKET,EXH MANF |
14141-54A50-000 |
US $91.20 |
||
|
3
|
3
14118-54A50-000
ボルト
|
14118-54A50-000 |
— | ||
| replacement | |||||
|
3
|
3
14118-73G01-000 BOLT,EXH MANF |
14118-73G01-000 |
from US $15.45 |
||
|
4
|
4
09106-08022-000
BOLT(8X20)
|
09106-08022-000 |
— | ||
|
5
|
5
14118-81400-000
スタッドボルト
|
14118-81400-000 |
— | ||
| replacement | |||||
|
5
|
5
14119-81402-000 STUD BOLT |
14119-81402-000 |
US $2.72 |
||
|
6
|
6
09159-08056-000 NUT |
09159-08056-000 |
US $1.28 |
||
|
7
|
7
14181-54A50-000
ガスケット,エキゾーストマニホールド
|
14181-54A50-000 |
— | ||
| replacement | |||||
|
7
|
7
14181-54A51-000 GASKET,EXH MANFGasket, exhaust manifold |
14181-54A51-000 |
from US $18 |
||
|
8
|
8
14119-54A50-000 BOLT,EXH T/C L:58 |
14119-54A50-000 |
from US $12.47 |
||
|
9
|
9
09103-08118-000 BOLT(8X35) |
09103-08118-000 |
from US $10.55 |
||
|
10
|
10
14115-80F00-000
パイプ,ターボ,アウトレット
|
14115-80F00-000 |
— | ||
| replacements | |||||
|
10
|
10
14115-80F01-000
Pipe,turbo,outlet
|
14115-80F01-000 |
— | ||
|
10
|
10
14133-80F01-000
COVER,TURBO OUTLET PIPE
|
14133-80F01-000 |
— | ||
|
11
|
11
14182-85550-000
ガスケット,エキゾーストパイプ
|
14182-85550-000 |
— | ||
| replacement | |||||
|
11
|
11
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe |
14182-85551-000 |
from US $5.31 |
||
|
12
|
12
09103-08120-000 BOLT(8X51) |
09103-08120-000 |
US $28 |
||
|
13
|
13
14171-80F00-000
カバー,キャタリストケース
|
14171-80F00-000 |
— | ||
|
14
|
14
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
14
|
14
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
15
|
15
14133-80F00-000
カバー,ターボアウトレットパイプ
|
14133-80F00-000 |
— | ||
|
16
|
16
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
16
|
16
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
17
|
17
14131-54A51-000
カバー,エキゾーストマニホールド
|
14131-54A51-000 |
— | ||
| replacement | |||||
|
17
|
17
14131-54A5V-000
COVER,EXH MANF,INSIDE
|
14131-54A5V-000 |
— | ||
|
18
|
18
09103-06029-000
ボルト,6X10
|
09103-06029-000 |
— | ||
| replacement | |||||
|
18
|
18
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.01 |
||
|
19
|
19
14135-73B50-000
COVER,EXH MANF
|
14135-73B50-000 |
— | ||
|
20
|
20
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
20
|
20
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
20
|
20
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
21
|
21
14100-81811-000
ケースセット,キャタリスト
|
14100-81811-000 |
— | ||
| replacements | |||||
|
21
|
21
14100-81812-000
Case set,catalyst
|
14100-81812-000 |
— | ||
|
21
|
21
14810-80FV0-000 FUSE,THERMO CATALYST |
14810-80FV0-000 |
US $147.57 |
||
|
22
|
22
14173-80F00-000
BRACKET,CTLST CASE
|
14173-80F00-000 |
— | ||
|
23
|
23
14181-53E00-000
ガスケット,キャタリストケース
|
14181-53E00-000 |
— | ||
| replacement | |||||
|
23
|
23
14181-50F01-000
GASKET,CATALYST CASE
|
14181-50F01-000 |
— | ||
|
24
|
24
09103-10020-000 BOLT(10X25) |
09103-10020-000 |
US $6.88 |
||
|
25
|
25
14810-80F00-000
Fuse,thermo ctlst
|
14810-80F00-000 |
— | ||
| replacement | |||||
|
25
|
25
14810-80F0V-000 FUSE,THERMO CTLST |
14810-80F0V-000 |
US $348.80 |
||
|
26
|
26
18213-64D10-000
センサ,オキシジェン
|
18213-64D10-000 |
— | ||
| replacement | |||||
|
26
|
26
18213-64D11-000
SENSOR,OXYGEN
|
18213-64D11-000 |
— | ||
|
27
|
27
09404-10403-000
Clamp
|
09404-10403-000 |
— | ||
| replacement | |||||
|
27
|
27
09404-10205-000 CLAMP(L:82)Clamp, lead |
09404-10205-000 |
US $1.28 |
||
|
28
|
28
09404-08403-000
Clamp
|
09404-08403-000 |
— | ||
| replacement | |||||
|
28
|
28
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
