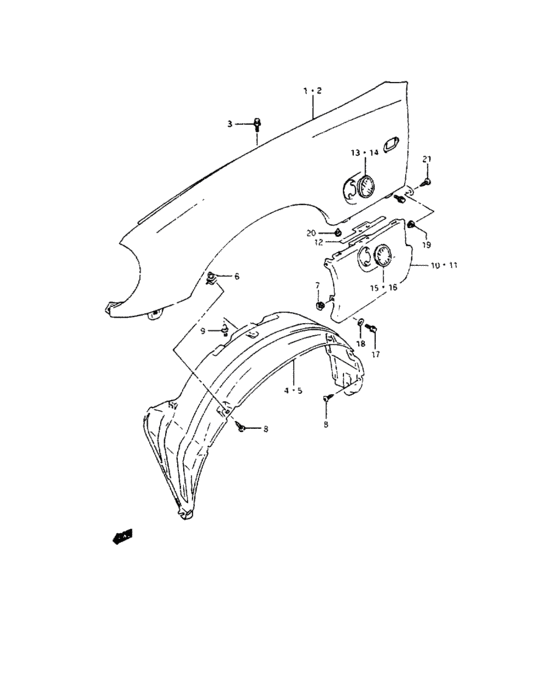

Front fender (FRONT FENDER) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57610-80F00-000
PANEL,FR FENDER,R
|
57610-80F00-000 |
— | ||
|
1
|
1
57610-80F20-000
PANEL,FR FENDER,R
|
57610-80F20-000 |
— | ||
|
2
|
2
57710-80F00-000
PANEL,FR FENDER,L
|
57710-80F00-000 |
— | ||
|
2
|
2
57710-80F20-000
PANEL,FR FENDER,L
|
57710-80F20-000 |
— | ||
|
3
|
3
09128-06065-000 SCREW(6X12)Screw, fuel cock |
09128-06065-000 |
from US $0.70 |
||
|
4
|
4
72321-80F00-000
LINING,FR FENDER,R
|
72321-80F00-000 |
— | ||
|
5
|
5
72322-80F00-000
LINING,FR FENDER,L
|
72322-80F00-000 |
— | ||
|
6
|
6
72312-60B01-000 NUT,FR FENDER LINING |
72312-60B01-000 |
from US $1.31 |
||
|
7
|
7
09148-05018-000 NUT |
09148-05018-000 |
from US $0.61 |
||
|
8
|
8
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
9
|
9
09409-07303-5ES CLIP(BLACK) |
09409-07303-5ES |
from US $1.52 |
||
|
10
|
10
77110-80F00-000
ガーニッシュ,フロントフェンダロア,ライト
|
77110-80F00-000 |
— | ||
| replacement | |||||
|
10
|
10
77110-80F0V-000 GARNISH,FR FENDER LWR,R |
77110-80F0V-000 |
US $145.36 |
||
|
11
|
11
77120-80F00-000
ガーニッシュ,フロントフェンダロア,レフト
|
77120-80F00-000 |
— | ||
| replacement | |||||
|
11
|
11
77120-80F0V-000
GARNISH,FR FENDER LWR,L
|
77120-80F0V-000 |
— | ||
|
12
|
12
77113-80F00-000 PROTECTOR,FENDER LOWER GARNISH |
77113-80F00-000 |
US $12.29 |
||
|
13
|
13
77153-80F00-0CC
GARNISH,FENDER AIR OUT UPR,R
|
77153-80F00-0CC |
— | ||
|
14
|
14
77163-80F00-0CC
GARNISH,FENDER AIR OUT UPR,L
|
77163-80F00-0CC |
— | ||
|
15
|
15
77151-80F00-0CC
GARNISH,FENDER AIR OUT LWR,R
|
77151-80F00-0CC |
— | ||
|
16
|
16
77161-80F00-0CC
GARNISH,FENDER AIR OUT LWR,L
|
77161-80F00-0CC |
— | ||
|
17
|
17
09128-06058-000 SCREW(6X10) |
09128-06058-000 |
from US $1.28 |
||
|
18
|
18
09161-06017-000 WASHER(6X14X1) |
09161-06017-000 |
US $12.90 |
||
|
19
|
19
09148-05018-000 NUT |
09148-05018-000 |
from US $0.61 |
||
|
20
|
20
09409-07326-000 CLIP |
09409-07326-000 |
US $20.60 |
||
|
21
|
21
03241-05083-000
Screw
|
03241-05083-000 |
— | ||
| replacement | |||||
|
21
|
21
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
