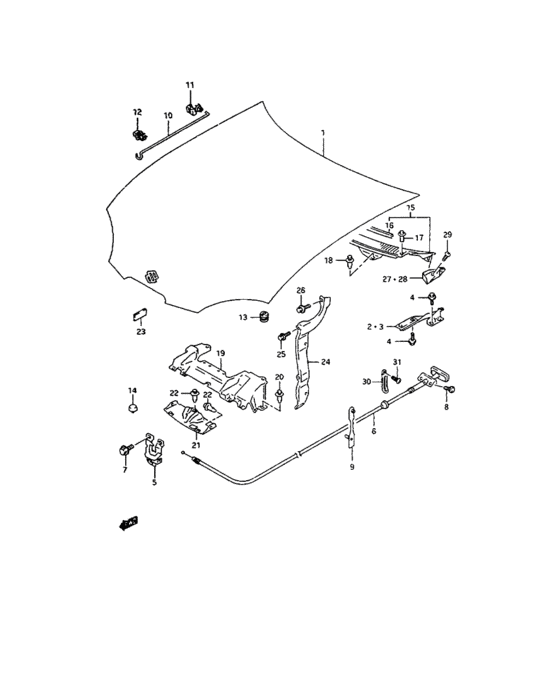

Front hood panel (FRONT HOOD PANEL) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-80F00-000 PANEL,FRONT HOOD |
57300-80F00-000 |
US $3,168 |
||
|
2
|
2
57410-80F00-000
HINGE,FR HOOD,R
|
57410-80F00-000 |
— | ||
|
3
|
3
57420-80F00-000
HINGE,FR HOOD,L
|
57420-80F00-000 |
— | ||
|
4
|
4
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
82110-80F00-000
ラッチ,フード
|
82110-80F00-000 |
— | ||
| replacement | |||||
|
5
|
5
82110-80F01-000 LATCH,HOOD |
82110-80F01-000 |
US $54.46 |
||
|
6
|
6
82160-80F00-000
CABLE,HOOD LATCH RELEASE
|
82160-80F00-000 |
— | ||
|
7
|
7
09138-06049-000 BOLT(6X12) |
09138-06049-000 |
US $1.12 |
||
|
8
|
8
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
9
|
9
09408-00084-000
クランプ
|
09408-00084-000 |
— | ||
| replacement | |||||
|
9
|
9
09403-04401-000 CLAMP |
09403-04401-000 |
US $9.90 |
||
|
10
|
10
72311-80F00-000
ステー,フロントフード
|
72311-80F00-000 |
— | ||
| replacement | |||||
|
10
|
10
72311-80F0V-000
STAY,FRONT HOOD
|
72311-80F0V-000 |
— | ||
|
11
|
11
09209-09007-000 LINKAGEConnector |
09209-09007-000 |
from US $1.92 |
||
|
12
|
12
09403-07311-000 CLAMP |
09403-07311-000 |
US $2.24 |
||
|
13
|
13
72372-82000-000 CUSHION,BACK DR SIDECushion |
72372-82000-000 |
US $2.24 |
||
|
14
|
14
09321-10028-000 CUSHION |
09321-10028-000 |
US $70.30 |
||
|
15
|
15
72330-80F01-5PK
Garnish, cowling top
|
72330-80F01-5PK |
— | ||
| replacements | |||||
|
15
|
15
72331-80F01-5PK
GARNISH,COWL TOP
|
72331-80F01-5PK |
— | ||
|
15
|
15
72336-80F01-5PK CUSHION,COWL TOP GARNISH |
72336-80F01-5PK |
US $58.40 |
||
|
15
|
15
72341-76F00-000 SEAL,HOOD RR |
72341-76F00-000 |
US $35.33 |
||
|
16
|
16
72337-80F00-000
Seal, wiper motor
|
72337-80F00-000 |
— | ||
| replacement | |||||
|
16
|
16
72341-76F00-000 SEAL,HOOD RR |
72341-76F00-000 |
US $35.33 |
||
|
17
|
17
09409-07019-5PK CLIP(BLACK) |
09409-07019-5PK |
US $1.60 |
||
|
18
|
18
09409-07328-5PK CLIP(BLACK) |
09409-07328-5PK |
US $20.60 |
||
|
19
|
19
72351-80F00-000
COVER,ENG ROOM FR
|
72351-80F00-000 |
— | ||
|
20
|
20
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
US $1.76 |
||
|
21
|
21
72361-80F00-000
COVER,ENG ROOM FR LOWER
|
72361-80F00-000 |
— | ||
|
22
|
22
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
US $1.76 |
||
|
23
|
23
72371-80F00-000
Film, fr hood lock striker
|
72371-80F00-000 |
— | ||
| replacement | |||||
|
23
|
23
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
24
|
24
72430-80F00-000 STAY,RADIATOR |
72430-80F00-000 |
US $68.08 |
||
|
25
|
25
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
25
|
25
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
26
|
26
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
26
|
26
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
27
|
27
72342-80F00-5PK
COVER,FR PLR LWR,R
|
72342-80F00-5PK |
— | ||
|
28
|
28
72347-80F00-5PK
COVER,FR PLR LWR,L
|
72347-80F00-5PK |
— | ||
|
29
|
29
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
29
|
29
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
30
|
30
09404-06405-000
Clamp
|
09404-06405-000 |
— | ||
| replacements | |||||
|
30
|
30
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
30
|
30
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
30
|
30
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
US $2.13 |
||
|
30
|
30
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
31
|
31
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
31
|
31
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
