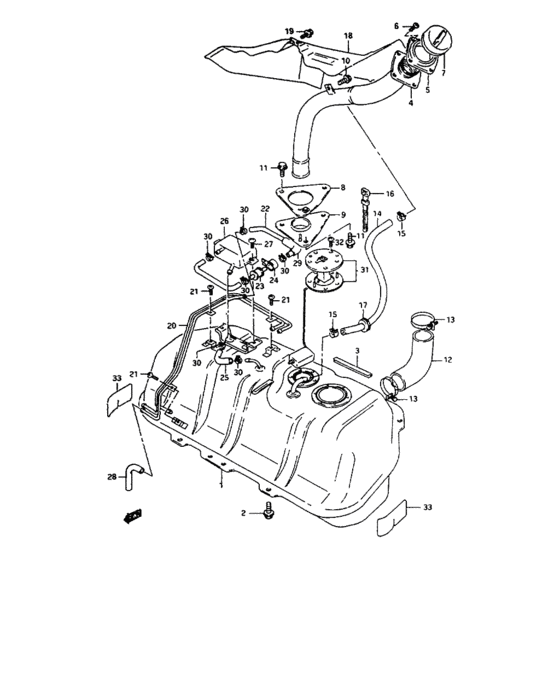

Fuel tank (FUEL TANK) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-80F00-000 TANK ASSY,FUEL |
89101-80F00-000 |
US $1,129.80 |
||
|
2
|
2
09118-08151-000
Bolt (8x25)
|
09118-08151-000 |
— | ||
| replacement | |||||
|
2
|
2
09118-08151-XC0 BOLT(8X25) |
09118-08151-XC0 |
US $21.70 |
||
|
3
|
3
89521-80F00-000 PAD,FUEL TANK FLANGE |
89521-80F00-000 |
US $10.75 |
||
|
4
|
4
89210-80F00-000
ネック,フューエルフィラ
|
89210-80F00-000 |
— | ||
| replacement | |||||
|
4
|
4
89210-80F0V-000
NECK,FUEL FILLER
|
89210-80F0V-000 |
— | ||
|
4
|
4
89210-80F10-000
Neck, fuel filler
, Hong Kong |
89210-80F10-000 |
— | ||
|
5
|
5
89285-82000-000
パッキング,フューエルフィラ
|
89285-82000-000 |
— | ||
| replacement | |||||
|
5
|
5
89285-75F00-000 PACKING,FUEL FILLER |
89285-75F00-000 |
US $5.17 |
||
|
6
|
6
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
7
|
7
89260-82031-000
キャップアッシ,フューエルフィラ
|
89260-82031-000 |
— | ||
| replacement | |||||
|
7
|
7
89260-73H00-000 CAP ASSY,FUEL FILLER |
89260-73H00-000 |
from US $19.82 |
||
|
8
|
8
89291-80F00-000
ブラケット,フューエルフィラネック
|
89291-80F00-000 |
— | ||
|
9
|
9
89282-80F00-000
シール,フューエルフィラネック
|
89282-80F00-000 |
— | ||
|
10
|
10
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
10
|
10
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
11
|
11
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
11
|
11
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
12
|
12
89241-80F00-000 HOSE,FUEL TANK FILLER |
89241-80F00-000 |
US $31.28 |
||
|
13
|
13
09400-52312-000 CLAMP |
09400-52312-000 |
US $20.20 |
||
|
14
|
14
09354-11163-600
ホース,11X16X600
L : 600->390 |
09354-11163-600 |
— | ||
| replacement | |||||
|
14
|
14
09355-11165-600 HOSE(11X16X600)L : 600->390 |
09355-11165-600 |
from US $8.64 |
||
|
15
|
15
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
16
|
16
09407-22403-000 CLAMP(L:220) |
09407-22403-000 |
US $12.90 |
||
|
17
|
17
89295-80F00-000
Seal,fuel breather hose
|
89295-80F00-000 |
— | ||
|
18
|
18
89231-80F00-000
COVER,FUEL NECK
|
89231-80F00-000 |
— | ||
|
19
|
19
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
19
|
19
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
20
|
20
89460-80F01-000
パイプ,フューエル,アウトレット
|
89460-80F01-000 |
— | ||
| replacement | |||||
|
20
|
20
89460-80F0V-000 PIPE,FUEL OUTLET |
89460-80F0V-000 |
US $110.77 |
||
|
21
|
21
02112-75103-000
Screw
|
02112-75103-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-7510A-000 SCREW |
02112-7510A-000 |
from US $1.97 |
||
|
22
|
22
89421-80F00-000 HOSE,2WAY CHECK |
89421-80F00-000 |
US $8.28 |
||
|
23
|
23
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
24
|
24
89485-80F00-000
クランプ,チェックバルブ
|
89485-80F00-000 |
— | ||
|
25
|
25
89412-60A00-000
HOSE,EVAPO PIPE TO SEPARATOR
|
89412-60A00-000 |
— | ||
|
26
|
26
89411-60A01-000
SEPARATOR,FUEL AND VAPOR
|
89411-60A01-000 |
— | ||
|
27
|
27
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
27
|
27
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
28
|
28
09354-54115-300
ホース,5.4X11.4X300
L : 300->135 |
09354-54115-300 |
— | ||
| replacement | |||||
|
28
|
28
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L : 300->135 |
09355-54115-600 |
from US $7.20 |
||
|
29
|
29
89489-80F00-000
PROTECTOR,FUEL EVAP HOSE
|
89489-80F00-000 |
— | ||
|
30
|
30
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
31
|
31
34810-80F00-000 GAUGE ASSY,FUEL LEVEL |
34810-80F00-000 |
US $80.80 |
||
|
32
|
32
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
33
|
33
89311-80F00-000 PROTECTOR,FUEL TANK FR |
89311-80F00-000 |
US $10.49 |
||
