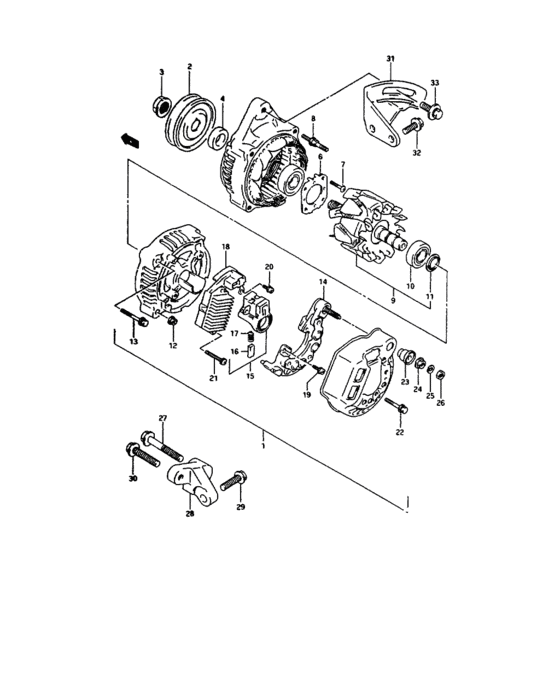

Generator (GENERATOR) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-60010-000
Generator assy
|
31400-60010-000 |
— | ||
|
2
|
2
31171-70B10-000 PULLEY |
31171-70B10-000 |
US $30.36 |
||
|
3
|
3
31775-85250-000 NUT |
31775-85250-000 |
US $1.82 |
||
|
4
|
4
31792-85250-000 SPACERSpacer, pulley |
31792-85250-000 |
US $5.92 |
||
|
5
|
5
31582-82610-000
ベアリング
|
31582-82610-000 |
— | ||
| replacement | |||||
|
5
|
5
31582-60F12-000 BEARING |
31582-60F12-000 |
US $22.40 |
||
|
6
|
6
31585-85251-000 RETAINER,BEARINGRetainer, bearing |
31585-85251-000 |
from US $7.36 |
||
|
7
|
7
31586-85250-000 SCREW |
31586-85250-000 |
US $1.21 |
||
|
8
|
8
31587-85250-000 STUD BOLT |
31587-85250-000 |
US $9.31 |
||
|
9
|
9
31710-85251-000 ROTOR ASSY |
31710-85251-000 |
US $309.12 |
||
|
10
|
10
31612-86510-000 BEARING |
31612-86510-000 |
US $29.60 |
||
|
11
|
11
31613-82610-000 COVER,BEARING |
31613-82610-000 |
from US $2.98 |
||
|
12
|
12
08310-00053-000
Nut
|
08310-00053-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
13
|
13
31651-85251-000
Bolt
|
31651-85251-000 |
— | ||
|
14
|
14
31621-85250-000
ホルダアッシ,レクチファイヤ
|
31621-85250-000 |
— | ||
| replacement | |||||
|
14
|
14
31621-50E11-000 Rectifier Assy |
31621-50E11-000 |
US $218.96 |
||
|
15
|
15
31656-82611-000
Holder assy, brush
|
31656-82611-000 |
— | ||
| replacement | |||||
|
15
|
15
31656-60G10-000 HOLDER ASSY,BRUSH |
31656-60G10-000 |
US $51.20 |
||
|
16
|
16
31631-82610-000 BRUSH |
31631-82610-000 |
US $6.15 |
||
|
17
|
17
31635-82610-000 SPRING,BRUSH |
31635-82610-000 |
US $1.95 |
||
|
18
|
18
32500-85251-000 REGULATOR ASSY |
32500-85251-000 |
US $320.16 |
||
|
19
|
19
02112-04063-000
Screw
|
02112-04063-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
20
|
20
02112-34253-000
No description
|
02112-34253-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-3425B-000 SCREW |
02112-3425B-000 |
from US $0.77 |
||
|
21
|
21
02112-04083-000
Screw
|
02112-04083-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.80 |
||
|
22
|
22
31691-85250-000
Bolt
|
31691-85250-000 |
— | ||
|
23
|
23
31514-85250-000 INSULATOR,TERMINAL |
31514-85250-000 |
US $7.36 |
||
|
24
|
24
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
24
|
24
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
25
|
25
08321-01063-000
Washer, lock
|
08321-01063-000 |
— | ||
| replacement | |||||
|
25
|
25
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
26
|
26
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
26
|
26
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
26
|
26
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
27
|
27
01550-10553-000
Bolt
|
01550-10553-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.44 |
||
|
28
|
28
17911-70B00-000
ブラケット,ジェネレータ
|
17911-70B00-000 |
— | ||
| replacement | |||||
|
28
|
28
11565-70G00-000
BRACKET,GENERATOR
|
11565-70G00-000 |
— | ||
|
29
|
29
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
29
|
29
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
30
|
30
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
30
|
30
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
31
|
31
11560-60000-000
Arm, generator adjusting
|
11560-60000-000 |
— | ||
|
32
|
32
01550-00203-000
Bolt
|
01550-00203-000 |
— | ||
|
33
|
33
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
