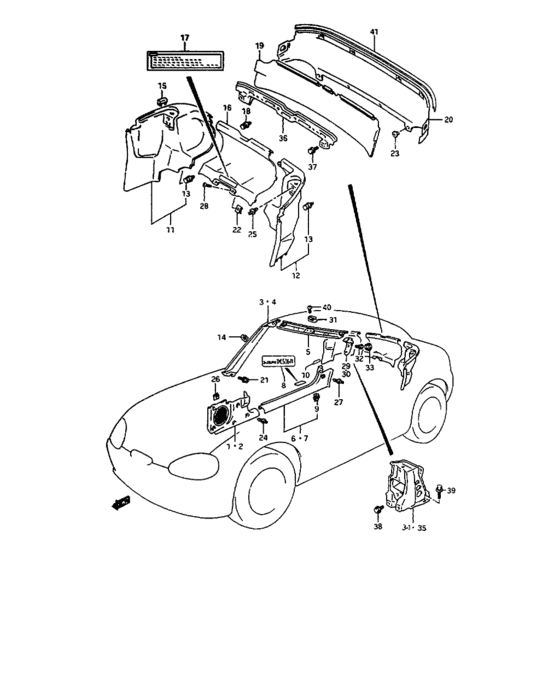

Interior trim (INTERIOR TRIM) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76121-80F00-5ES
Trim,dash side,r
|
76121-80F00-5ES |
— | ||
|
2
|
2
76131-80F00-5ES
Trim,dash side,l
|
76131-80F00-5ES |
— | ||
|
3
|
3
76141-80F00-5ES
トリム,フロントピラー,ライト(ブラック)
|
76141-80F00-5ES |
— | ||
|
4
|
4
76151-80F00-5ES
トリム,フロントピラー,レフト(ブラック)
|
76151-80F00-5ES |
— | ||
|
5
|
5
76161-80F01-5ES TRIM,HEADER UPPER |
76161-80F01-5ES |
US $53.36 |
||
|
6
|
6
76170-80F00-5ES
SCUFF,SIDE SILL,R
|
76170-80F00-5ES |
— | ||
|
7
|
7
76180-80F00-5ES
SCUFF,SIDE SILL,L
|
76180-80F00-5ES |
— | ||
|
8
|
8
76172-80F00-1PG
エンブレム,サイドシルスカッフ
|
76172-80F00-1PG |
— | ||
|
9
|
9
76212-50E00-000
クリップ,トリム
|
76212-50E00-000 |
— | ||
| replacement | |||||
|
9
|
9
09409-10308-000 CLIP |
09409-10308-000 |
US $1.60 |
||
|
10
|
10
76173-80F00-000
クッション,サイドシルスカッフ
|
76173-80F00-000 |
— | ||
|
11
|
11
76210-80F00-5ES
TRIM,SEAT BELT TOWER,R
|
76210-80F00-5ES |
— | ||
|
12
|
12
76220-80F00-5ES
TRIM,SEAT BELT TOWER,L
|
76220-80F00-5ES |
— | ||
|
13
|
13
09409-08310-000 CLIP |
09409-08310-000 |
US $1.76 |
||
|
14
|
14
76212-50E00-000
クリップ,トリム
|
76212-50E00-000 |
— | ||
| replacement | |||||
|
14
|
14
09409-10308-000 CLIP |
09409-10308-000 |
US $1.60 |
||
|
15
|
15
76213-80F00-0TC HOLDER,BELT TOWER TRIM |
76213-80F00-0TC |
US $2.72 |
||
|
16
|
16
76230-80F10-5ES
TRIM,CABIN BACK
|
76230-80F10-5ES |
— | ||
|
17
|
17
79121-80F10-000
Label, rear pillar caution
|
79121-80F10-000 |
— | ||
|
18
|
18
09409-08310-000 CLIP |
09409-08310-000 |
US $1.76 |
||
|
19
|
19
76240-80F00-5FE TRIM,PARTITION,FRONT |
76240-80F00-5FE |
US $87.95 |
||
|
20
|
20
76251-80F00-5ES TRIM,RAPTITION REAR |
76251-80F00-5ES |
US $312.80 |
||
|
21
|
21
09111-06061-000
Bolt,6x16.5
|
09111-06061-000 |
— | ||
| replacement | |||||
|
21
|
21
09111-06094-000 BOLT(6X16.5) |
09111-06094-000 |
from US $0.96 |
||
|
22
|
22
09148-05019-000 NUT |
09148-05019-000 |
from US $0.96 |
||
|
23
|
23
09148-05037-000 CLIP |
09148-05037-000 |
from US $1.24 |
||
|
24
|
24
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
25
|
25
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
26
|
26
09148-04020-000 NUTNut |
09148-04020-000 |
US $13.20 |
||
|
27
|
27
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $0.95 |
||
|
28
|
28
03141-05163-000
Screw
|
03141-05163-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
29
|
29
76415-80F00-000
Hook,front side lock,r
SEE NOTE |
76415-80F00-000 |
— | ||
|
30
|
30
76416-80F00-000
Hook,front side lock,l
SEE NOTE |
76416-80F00-000 |
— | ||
|
31
|
31
76417-80F00-000
FEMALE,CTR ROOF LOCATE
|
76417-80F00-000 |
— | ||
|
32
|
32
76418-80F00-000 SCREW,FRONT SIDE HOOK |
76418-80F00-000 |
US $2.76 |
||
|
33
|
33
76419-80F00-000 CAP,FR SIDE HOOK |
76419-80F00-000 |
US $3.16 |
||
|
34
|
34
76420-80F00-000
TOWER,SEAT BELT,R
|
76420-80F00-000 |
— | ||
|
35
|
35
76430-80F00-000
TOWER,SEAT BELT,L
|
76430-80F00-000 |
— | ||
|
36
|
36
76441-80F00-000
ブレース,シートベルトタワー
|
76441-80F00-000 |
— | ||
|
37
|
37
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
37
|
37
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
38
|
38
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
38
|
38
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
39
|
39
09118-10068-000
Bolt
|
09118-10068-000 |
— | ||
|
40
|
40
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
40
|
40
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
41
|
41
76461-80F01-000
モールディング,パーティションパネル,アッパ
|
76461-80F01-000 |
— | ||
| replacement | |||||
|
41
|
41
76461-80F02-000 TAPE,PARTITION PANEL UPPER |
76461-80F02-000 |
US $47.47 |
||
