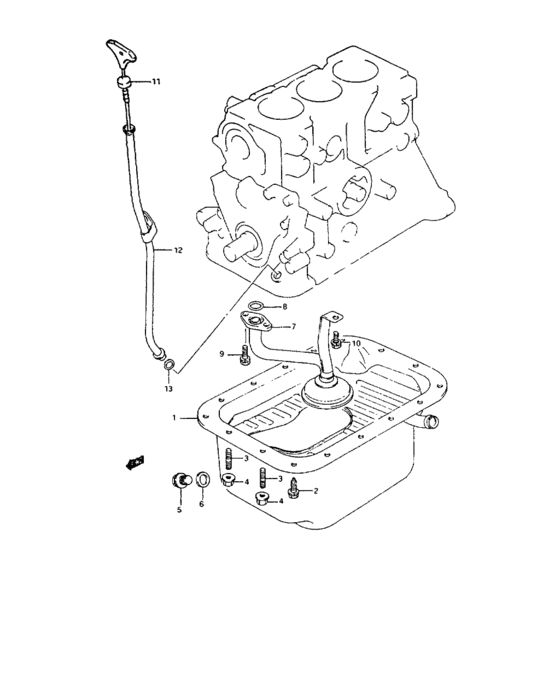

Oil pan (OIL PAN) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-80F00-000 PAN,OIL |
11510-80F00-000 |
US $352 |
||
|
2
|
2
09117-06033-000 BOLT(6X12) |
09117-06033-000 |
US $1.06 |
||
|
3
|
3
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
4
|
4
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
09247-14027-000 PLUG(14X11.5)Plug, oil drain |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
5
|
5
09247-14044-000 DRAIN PLUG (M14x1.5) |
09247-14044-000 |
from US $1.33 |
||
|
6
|
6
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.17 |
||
|
7
|
7
16520-80F00-000
STRAINER,OIL PUMP
|
16520-80F00-000 |
— | ||
|
8
|
8
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe |
09280-16005-000 |
from US $1.40 |
||
|
9
|
9
01570-06163-000
Bolt
|
01570-06163-000 |
— | ||
| replacements | |||||
|
9
|
9
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
9
|
9
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.80 |
||
|
10
|
10
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
10
|
10
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
11
|
11
16910-80F00-000
Gauge, oil level
|
16910-80F00-000 |
— | ||
| replacement | |||||
|
11
|
11
16910-72G02-000
GAUGE,OIL LEVEL
|
16910-72G02-000 |
— | ||
|
12
|
12
16930-62D50-000
ガイド,オイルレベルゲージ
|
16930-62D50-000 |
— | ||
| replacement | |||||
|
12
|
12
16930-62D5V-000
GUIDE,OIL LEVEL GAUGE
|
16930-62D5V-000 |
— | ||
|
13
|
13
09280-10015-000 O RING(D:1.9,ID:9.8)O ring, oil gallery |
09280-10015-000 |
from US $1.60 |
||
| replacement | |||||
|
13
|
13
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
