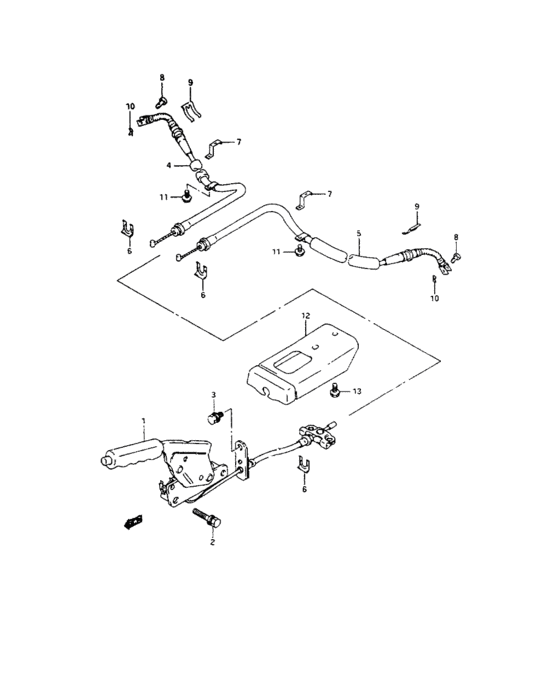

Parking brake (PARKING BRAKE) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-80F00-000
レバーアッシ,パーキングブレーキ
|
54100-80F00-000 |
— | ||
| replacement | |||||
|
1
|
1
54100-80F02-000 LEVER ASSY,PARK BK |
54100-80F02-000 |
US $209.76 |
||
|
2
|
2
01570-10503-000
ボルト
|
01570-10503-000 |
— | ||
| replacement | |||||
|
2
|
2
01570-1050A-000 Bolt |
01570-1050A-000 |
US $1.28 |
||
|
3
|
3
01580-10203-000
ボルト
|
01580-10203-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-1020A-000 Bolt |
01580-1020A-000 |
US $19.50 |
||
|
4
|
4
54401-80F00-000 CABLE,PARKING BRAKE,R |
54401-80F00-000 |
US $90.53 |
||
|
5
|
5
54402-80F00-000 CABLE,PARKING BRAKE,L |
54402-80F00-000 |
US $90.53 |
||
|
6
|
6
54493-50A40-000 CLIP,PARKING CABLE,FR |
54493-50A40-000 |
US $4.27 |
||
|
7
|
7
54511-80F00-000
Stay,parking cable clamp
|
54511-80F00-000 |
— | ||
|
8
|
8
09200-06064-000 PIN |
09200-06064-000 |
US $23.60 |
||
|
9
|
9
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
9
|
9
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
10
|
10
09385-06012-000 CLIP |
09385-06012-000 |
from US $1.22 |
||
|
11
|
11
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
11
|
11
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
12
|
12
61210-80F00-000
Bracket,park lever cable
|
61210-80F00-000 |
— | ||
|
13
|
13
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
13
|
13
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
