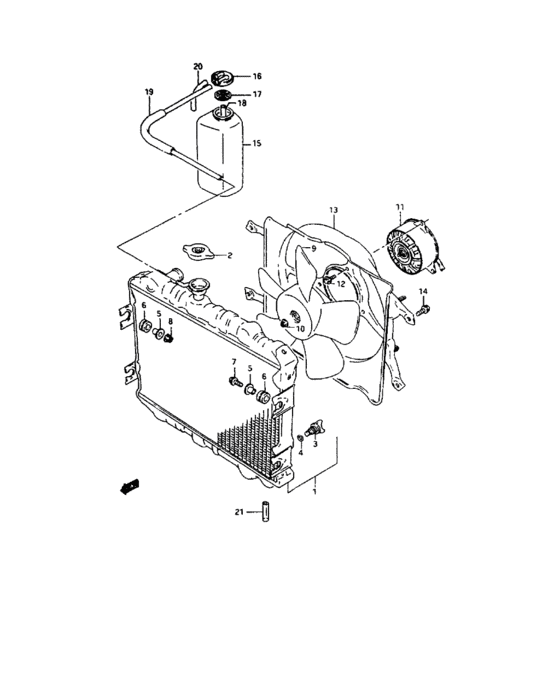

Radiator (RADIATOR) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-80F00-000
RADIATOR ASSY
|
17700-80F00-000 |
— | ||
|
2
|
2
17920-60B20-000
RADIATOR CAP
|
17920-60B20-000 |
— | ||
| replacement | |||||
|
2
|
2
17920-60B21-000 CAP,RADIATOR 0.9 |
17920-60B21-000 |
from US $17.60 |
||
|
3
|
3
17751-72010-000 PLUG,DRAIN |
17751-72010-000 |
from US $3.80 |
||
|
4
|
4
17759-72010-000 O-RING |
17759-72010-000 |
from US $1.52 |
||
|
5
|
5
17757-80F00-000
Spacer
|
17757-80F00-000 |
— | ||
|
6
|
6
17758-80F00-000
Cushion
|
17758-80F00-000 |
— | ||
|
7
|
7
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
7
|
7
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
8
|
8
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
17111-62051-000
Fan, engine cooling
|
17111-62051-000 |
— | ||
|
10
|
10
08316-16053-000 Nut |
08316-16053-000 |
US $1.23 |
||
| replacement | |||||
|
10
|
10
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.96 |
||
|
11
|
11
17120-62D50-000 MOTOR,ENG COOLING |
17120-62D50-000 |
US $336.72 |
||
|
12
|
12
02112-14103-000
Bolt, motor
|
02112-14103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
13
|
13
17760-80F00-000
SHROUD
|
17760-80F00-000 |
— | ||
|
14
|
14
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
14
|
14
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
15
|
15
17931-80000-000
WATER RESERV TANK
|
17931-80000-000 |
— | ||
| replacement | |||||
|
15
|
15
17931-80001-000 TANK,WATER RESERVE |
17931-80001-000 |
from US $14.81 |
||
|
16
|
16
17932-60B10-000 CAP,WATER RESERVE TANK |
17932-60B10-000 |
from US $10.53 |
||
|
17
|
17
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap |
17933-60B00-000 |
from US $1.98 |
||
|
18
|
18
09352-70111-300
ホース,7X11X300
L:300->170 |
09352-70111-300 |
— | ||
| replacement | |||||
|
18
|
18
09352-70111-600 HOSE(7X11X600)L:300->170 |
09352-70111-600 |
from US $6.84 |
||
|
19
|
19
17938-80F00-000
Hose, radiator to tank
|
17938-80F00-000 |
— | ||
| replacement | |||||
|
19
|
19
17938-65FM0-000
HOSE,RADIATOR TO RSVR TANK
|
17938-65FM0-000 |
— | ||
|
20
|
20
17859-80701-000 HOSE,WATER BYPASS |
17859-80701-000 |
from US $2.36 |
||
|
21
|
21
09351-75111-300
ホース,7.5X11.5X300
L:300->40 |
09351-75111-300 |
— | ||
| replacement | |||||
|
21
|
21
09351-75111-600 HOSE(7.5X11.5X600)L:300->40 |
09351-75111-600 |
from US $2.70 |
||
