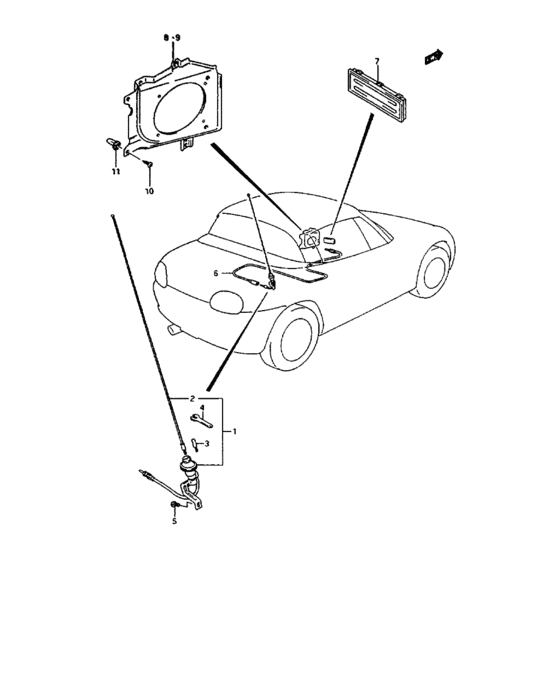

Radio antenna (RADIO ANTENNA) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39250-80F00-000
Antenna assy
|
39250-80F00-000 |
— | ||
|
2
|
2
39251-80F00-000
ROD,ANTENNA
|
39251-80F00-000 |
— | ||
|
3
|
3
39262-80F00-000
CAP,ANTENNA HOLE
|
39262-80F00-000 |
— | ||
|
4
|
4
39282-80F00-000
スパナ,アンテナ
|
39282-80F00-000 |
— | ||
|
5
|
5
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
6
|
6
39271-80F00-000
フィーダ,アンテナ
|
39271-80F00-000 |
— | ||
|
7
|
7
73162-50E00-5PK PLUG,RADIO HOLE |
73162-50E00-5PK |
US $21.28 |
||
|
8
|
8
39350-80F00-000
Bracket, speaker rh
|
39350-80F00-000 |
— | ||
| replacement | |||||
|
8
|
8
39350-80810-000
Bracket set,speaker
|
39350-80810-000 |
— | ||
|
9
|
9
39360-80F00-000
Bracket, speaker lh
|
39360-80F00-000 |
— | ||
|
10
|
10
03541-06163-000
スクリュ
|
03541-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
11
|
11
09148-05035-000 NUT |
09148-05035-000 |
US $12.90 |
||
