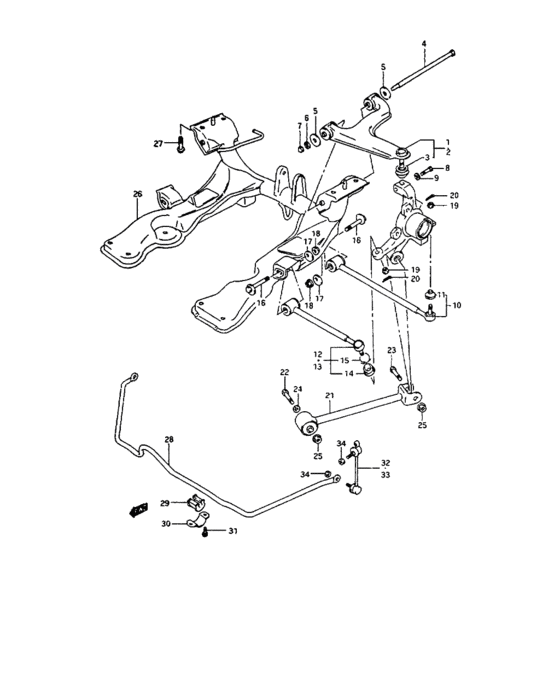

Rear suspension arm (REAR SUSPENSION ARM) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46201-80F00-000 ARM ASSY,RR SPNSN UPR,RTYPE 1 |
46201-80F00-000 |
US $307.28 |
||
|
1
|
1
46201-80F01-000 ARM ASSY,RR SPNSN UPR,RTYPE 2 |
46201-80F01-000 |
US $281.52 |
||
|
2
|
2
46202-80F00-000 ARM ASSY,RR SPNSN UPR,LTYPE 1 |
46202-80F00-000 |
US $307.28 |
||
|
2
|
2
46202-80F01-000
ARM ASSY,RR SPNSN UPR,L
TYPE 2 |
46202-80F01-000 |
— | ||
|
3
|
3
45723-60B00-000
SEAL SET,BALL JOINT
|
45723-60B00-000 |
— | ||
| replacements | |||||
|
3
|
3
45723-60B01-000
Seal Set,ball Joint
|
45723-60B01-000 |
— | ||
|
3
|
3
45700-60820-000 Seal Set,ball Joint |
45700-60820-000 |
US $39.20 |
||
|
4
|
4
46241-80F00-000
Bolt, upper arm
|
46241-80F00-000 |
— | ||
| replacement | |||||
|
4
|
4
46241-80F0V-000 BOLT,RR SPNSN UPPER ARM |
46241-80F0V-000 |
US $44.08 |
||
|
5
|
5
46242-80F00-000
WASHER,SPNSN UPR
|
46242-80F00-000 |
— | ||
|
6
|
6
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
7
|
7
09145-12004-000
Nut
|
09145-12004-000 |
— | ||
| replacement | |||||
|
7
|
7
09145-12004-XC0 NUT |
09145-12004-XC0 |
from US $9.69 |
||
|
8
|
8
09100-10184-000 BOLT(10X40) |
09100-10184-000 |
from US $1.92 |
||
|
9
|
9
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
9
|
9
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
10
|
10
46205-80F00-000 ARM ASSY,RR SPNSN,LWR |
46205-80F00-000 |
US $161.18 |
||
|
11
|
11
45723-60B00-000
SEAL SET,BALL JOINT
|
45723-60B00-000 |
— | ||
| replacements | |||||
|
11
|
11
45723-60B01-000
Seal Set,ball Joint
|
45723-60B01-000 |
— | ||
|
11
|
11
45700-60820-000 Seal Set,ball Joint |
45700-60820-000 |
US $39.20 |
||
|
12
|
12
46301-80F00-000 ARM ASSY,RR SPNSN CONTROL,R |
46301-80F00-000 |
US $153.09 |
||
|
13
|
13
46302-80F00-000 ARM ASSY,RR SPNSN CONTROL,L |
46302-80F00-000 |
US $153.09 |
||
|
14
|
14
48819-60B00-000
BOOT SET
|
48819-60B00-000 |
— | ||
| replacements | |||||
|
14
|
14
48819-60B01-000
Boot Set
|
48819-60B01-000 |
— | ||
|
14
|
14
48800-60810-000 Boot Set |
48800-60810-000 |
US $19.20 |
||
|
15
|
15
09401-23402-000 CLIP |
09401-23402-000 |
US $1.76 |
||
|
16
|
16
46331-80F00-000
BOLT,RR CONTROL ARM ECC
|
46331-80F00-000 |
— | ||
|
17
|
17
46332-60B00-000
ワッシャ,コントロールロッド,インナ
|
46332-60B00-000 |
— | ||
| replacement | |||||
|
17
|
17
46332-60B0V-000
WASHER,CONTROL ROD INR
|
46332-60B0V-000 |
— | ||
|
18
|
18
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
19
|
19
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
19
|
19
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
20
|
20
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
20
|
20
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
21
|
21
46305-80F00-000
ROD ASSY,RR SPNSN TRAILING
|
46305-80F00-000 |
— | ||
|
22
|
22
09103-12044-000 BOLT(12X87) |
09103-12044-000 |
from US $2.48 |
||
|
23
|
23
45331-80F00-000 BOLT,FR LWR ARM BUSH FR |
45331-80F00-000 |
US $6.04 |
||
|
24
|
24
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
25
|
25
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
26
|
26
46700-80F00-000
Frame, rear suspension
|
46700-80F00-000 |
— | ||
| replacement | |||||
|
26
|
26
46700-80F01-000 FRAME,RR SUSPENSION |
46700-80F01-000 |
US $1,183.36 |
||
|
27
|
27
01810-12403-000
ボルト
|
01810-12403-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-1240A-000 Bolt |
01550-1240A-000 |
US $21.70 |
||
|
28
|
28
46611-80F00-000 BAR,RR STABILIZER |
46611-80F00-000 |
US $167.81 |
||
|
29
|
29
46641-80F00-000 MOUNT,RR STAB BAR |
46641-80F00-000 |
US $24 |
||
|
30
|
30
46642-80F00-000 BRACKET,RR STABILIZER BAR |
46642-80F00-000 |
US $7.18 |
||
|
31
|
31
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
31
|
31
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
31
|
31
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
32
|
32
46630-80F00-000 JOINT,RR STABILIZER,R |
46630-80F00-000 |
from US $54.23 |
||
|
33
|
33
46640-80F00-000 JOINT,RR STABILIZER,L |
46640-80F00-000 |
US $169.60 |
||
|
34
|
34
09159-10056-000 NUT |
09159-10056-000 |
US $1.12 |
||
