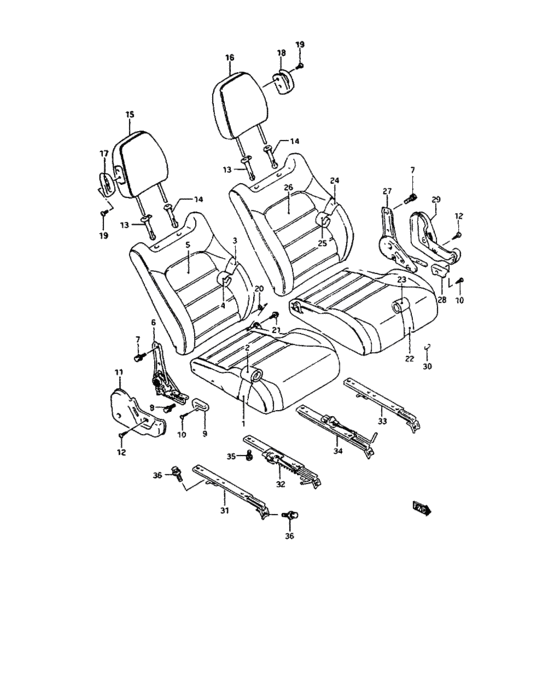

Seat (SEAT) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-80F00-000 CUSHION SUB ASSY,FR SEAT,R |
85105-80F00-000 |
US $401.28 |
||
|
2
|
2
85180-80F02-87Y
Trim, cushion rh
|
85180-80F02-87Y |
— | ||
|
3
|
3
85305-80F01-000
BACK S/ASSY,FR SEAT,R
|
85305-80F01-000 |
— | ||
|
4
|
4
85380-80F02-B7Y TRIM,FR SEAT BACK,R |
85380-80F02-B7Y |
US $862.40 |
||
|
5
|
5
85390-80F00-B7Y
トリム,シートバックメイン
|
85390-80F00-B7Y |
— | ||
|
6
|
6
85210-70B01-000
Reclining assy,fr seat,r
|
85210-70B01-000 |
— | ||
|
7
|
7
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
8
|
8
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
9
|
9
85211-80F00-5PK KNOB,RECLINING FR,R |
85211-80F00-5PK |
US $5.96 |
||
|
10
|
10
03241-04083-000
スクリュ
|
03241-04083-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0408A-000 SCREW |
03241-0408A-000 |
US $7 |
||
|
11
|
11
85221-80F00-5PK COVER,RECLINING FR,R |
85221-80F00-5PK |
US $26.68 |
||
|
12
|
12
03241-05083-000
Screw
|
03241-05083-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
13
|
13
85341-72C10-5PK GUIDE,HEADRESTRAINT,R |
85341-72C10-5PK |
US $5.45 |
||
|
14
|
14
85840-72C10-5PK GUIDE,HEADRESTRAINT,L |
85840-72C10-5PK |
US $15.12 |
||
|
15
|
15
86401-80F01-6UE
ヘッドレストレイント,フロント,ライト
|
86401-80F01-6UE |
— | ||
|
16
|
16
86501-80F01-6UE
ヘッドレストレイント,フロント,レフト
|
86501-80F01-6UE |
— | ||
|
17
|
17
86451-80F00-5ES
ガイド,シートベルト,ライト(ブラック)
|
86451-80F00-5ES |
— | ||
|
18
|
18
86551-80F00-5ES
ガイド,シートベルト,レフト(ブラック)
|
86551-80F00-5ES |
— | ||
|
19
|
19
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
19
|
19
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
20
|
20
85319-82000-000 BUSH,FR SEAT BACK FIXING |
85319-82000-000 |
US $1.92 |
||
|
21
|
21
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.77 |
||
|
22
|
22
85106-80F00-000
クッションサブアッシ,フロントシート,レフト
|
85106-80F00-000 |
— | ||
|
23
|
23
85680-80F02-B7Y
トリム,フロントクッション,レフト
|
85680-80F02-B7Y |
— | ||
|
24
|
24
85306-80F01-000
BACK S/ASSY,FR SEAT,L
|
85306-80F01-000 |
— | ||
|
25
|
25
85880-80F02-B7Y
TRIM,FR SEAT BACK,L
|
85880-80F02-B7Y |
— | ||
|
26
|
26
85390-80F00-B7Y
トリム,シートバックメイン
|
85390-80F00-B7Y |
— | ||
|
27
|
27
85710-70B01-000
リクライニングアッシ,レフト
|
85710-70B01-000 |
— | ||
| replacement | |||||
|
27
|
27
85710-60D00-000
RECLINING ASSY,FR SEAT,L
|
85710-60D00-000 |
— | ||
|
28
|
28
85711-80F00-5PK
KNOB,RECLINING FR,L
|
85711-80F00-5PK |
— | ||
|
29
|
29
85721-80F00-5PK COVER,RECLINING FR,L |
85721-80F00-5PK |
US $26.68 |
||
|
30
|
30
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
31
|
31
86630-70B00-000
ADJUSTER,FR SEAT OUTSIDE
RH SEAT |
86630-70B00-000 |
— | ||
|
32
|
32
86610-80F00-000
ADJUSTER,FR SEAT INSIDE,R
RH SEAT |
86610-80F00-000 |
— | ||
|
33
|
33
86630-70B00-000
ADJUSTER,FR SEAT OUTSIDE
LH SEAT |
86630-70B00-000 |
— | ||
|
34
|
34
86810-80F00-000 ADJUSTER,FR SEAT INSIDE,LLH SEAT |
86810-80F00-000 |
US $114.08 |
||
|
35
|
35
01570-08123-000
Bolt
|
01570-08123-000 |
— | ||
| replacement | |||||
|
35
|
35
01570-0812A-000 Bolt |
01570-0812A-000 |
US $14.40 |
||
|
36
|
36
09110-08157-000
Bolt
|
09110-08157-000 |
— | ||
