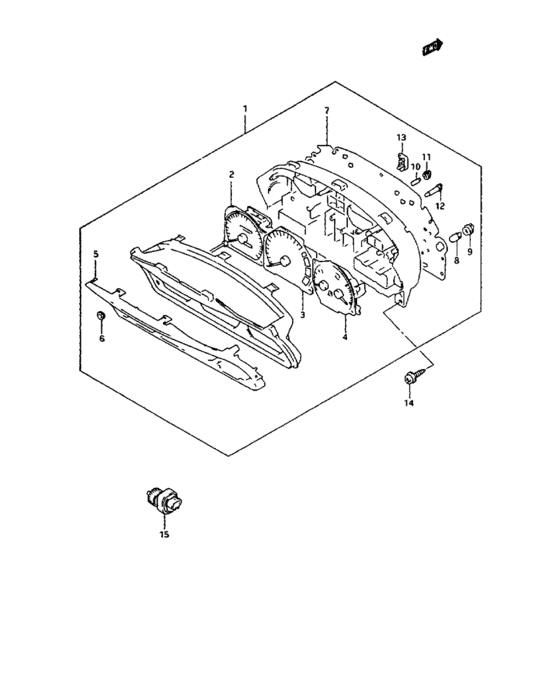

Speedometer (SPEEDOMETER) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-80F21-000
Speedometer assy
|
34100-80F21-000 |
— | ||
|
1
|
1
34100-80F30-000
Speedometer assy
|
34100-80F30-000 |
— | ||
|
2
|
2
34120-80F21-000 BODY ASSY,SPEEDOMETER |
34120-80F21-000 |
US $382.72 |
||
|
2
|
2
34120-80F30-000
Body, speedometer
|
34120-80F30-000 |
— | ||
|
3
|
3
34220-80F20-000
BODY ASSY,TACHOMETER
|
34220-80F20-000 |
— | ||
|
4
|
4
34320-80F20-000
Body assy,fuel / temp meter
|
34320-80F20-000 |
— | ||
|
4
|
4
34320-80F30-000
Body, fuel meter
|
34320-80F30-000 |
— | ||
|
5
|
5
34112-80F20-000
GLASS,METER WINDOW
|
34112-80F20-000 |
— | ||
|
6
|
6
34145-60B00-000 GROMMET |
34145-60B00-000 |
US $2.13 |
||
|
7
|
7
34152-80F20-000
Plate,printed
|
34152-80F20-000 |
— | ||
|
7
|
7
34152-80F30-000
Plate, printed
|
34152-80F30-000 |
— | ||
|
8
|
8
34171-50E10-000 BULB,12V 3.4W |
34171-50E10-000 |
US $5.48 |
||
|
9
|
9
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
10
|
10
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
11
|
11
34175-78900-000 SOCKET |
34175-78900-000 |
US $1.52 |
||
|
12
|
12
34171-68F70-000 BULB,12V 1.12W |
34171-68F70-000 |
US $7.95 |
||
|
13
|
13
34155-50E10-000 CIRCUIT,ABS WARNING |
34155-50E10-000 |
US $40.48 |
||
|
14
|
14
03541-05203-000
Screw
|
03541-05203-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
15
|
15
34910-80F00-000 SENSOR ASSY,SPEED |
34910-80F00-000 |
US $310.40 |
||
