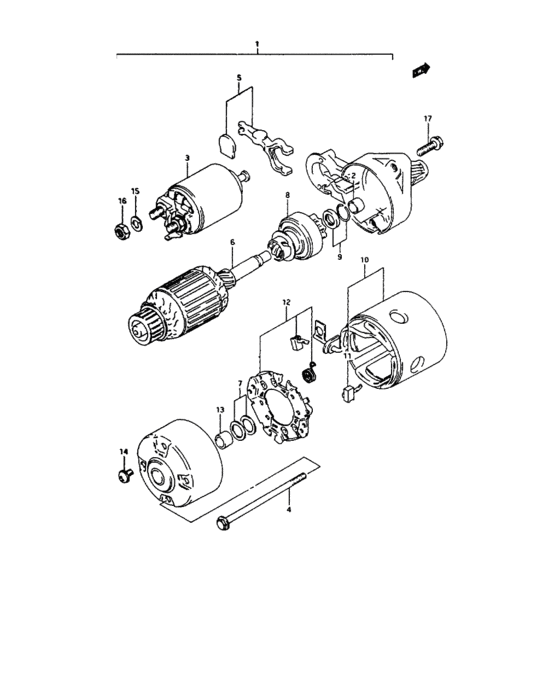

Starting motor (STARTING MOTOR) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-80F20-000 MOTOR ASSY,STARTING |
31100-80F20-000 |
US $2,032 |
||
|
2
|
2
31152-70B30-000 BUSHING |
31152-70B30-000 |
from US $27.97 |
||
|
3
|
3
31220-80092-000
スイッチアッシ
|
31220-80092-000 |
— | ||
| replacement | |||||
|
3
|
3
31220-84030-000 SWITCH ASSY |
31220-84030-000 |
from US $165.11 |
||
|
4
|
4
31261-79030-000
ボルト
|
31261-79030-000 |
— | ||
| replacement | |||||
|
4
|
4
31261-82130-000 Bolt |
31261-82130-000 |
from US $1.89 |
||
|
5
|
5
31191-79030-000 LEVER ASSY |
31191-79030-000 |
US $14.46 |
||
|
6
|
6
31311-70B31-000
Armature
|
31311-70B31-000 |
— | ||
|
7
|
7
31361-79030-000 WASHER |
31361-79030-000 |
from US $5.20 |
||
|
8
|
8
31320-86140-000 CLUTCH ASSY |
31320-86140-000 |
US $111.50 |
||
|
9
|
9
31313-80090-000 RING SET |
31313-80090-000 |
from US $4.25 |
||
|
10
|
10
31110-70830-000
Yoke assy
|
31110-70830-000 |
— | ||
|
11
|
11
31131-80090-000 BRUSH(+) |
31131-80090-000 |
from US $8.84 |
||
|
12
|
12
31173-79030-000
HOLDER BRUSH
|
31173-79030-000 |
— | ||
| replacement | |||||
|
12
|
12
31173-82130-000 HOLDER ASSY,BRUSH |
31173-82130-000 |
from US $43.20 |
||
|
13
|
13
31172-79030-000 BUSH |
31172-79030-000 |
from US $3.38 |
||
|
14
|
14
31136-79030-000 SCREW ASSY |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
14
|
14
31175-79030-000 Screw Set |
31175-79030-000 |
US $8.16 |
||
|
15
|
15
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
15
|
15
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.88 |
||
|
16
|
16
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
16
|
16
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
17
|
17
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
17
|
17
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
