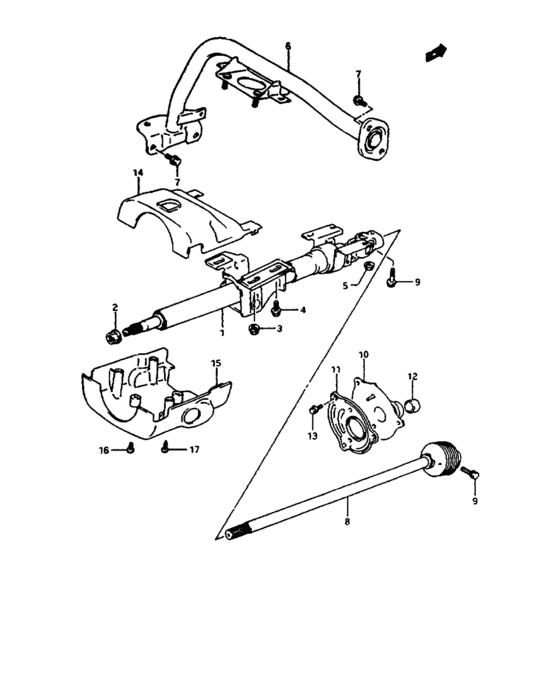

Steering column (STEERING COLUMN) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-82F00-000
Column assy,colps steering
|
48200-82F00-000 |
— | ||
|
2
|
2
09159-12029-000
ナット
|
09159-12029-000 |
— | ||
| replacement | |||||
|
2
|
2
09159-12025-000 NUT |
09159-12025-000 |
US $1.82 |
||
|
3
|
3
09159-08052-000
ナット
|
09159-08052-000 |
— | ||
| replacement | |||||
|
3
|
3
09159-08135-000 NUT |
09159-08135-000 |
US $1.12 |
||
|
4
|
4
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
75420-80F00-000
Member, steering support
|
75420-80F00-000 |
— | ||
| replacement | |||||
|
6
|
6
75420-80F10-000
MEMBER,STRG SUPPORT
|
75420-80F10-000 |
— | ||
|
6
|
6
75420-80F10-000
MEMBER,STRG SUPPORT
|
75420-80F10-000 |
— | ||
|
7
|
7
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
7
|
7
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
48220-80F00-000 JOINT,STRG SHAFT |
48220-80F00-000 |
US $682.88 |
||
|
9
|
9
09117-08034-000
ボルト,8X30
|
09117-08034-000 |
— | ||
| replacement | |||||
|
9
|
9
09117-08053-000 BOLT(8X30) |
09117-08053-000 |
US $20.20 |
||
|
10
|
10
48481-80F00-000
BOOT,STRG MDL SHAFT
|
48481-80F00-000 |
— | ||
|
11
|
11
48482-80F00-000
プレート,ステアリングミドルシャフトブーツ
|
48482-80F00-000 |
— | ||
|
12
|
12
48483-80F00-000
Bush,strg mdl shaft boot
|
48483-80F00-000 |
— | ||
|
13
|
13
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
48411-81F00-5PK
Cover, column upper
|
48411-81F00-5PK |
— | ||
|
15
|
15
48421-81F00-5PK
Cover, column lower
|
48421-81F00-5PK |
— | ||
|
16
|
16
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
US $0.96 |
||
|
17
|
17
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
17
|
17
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
