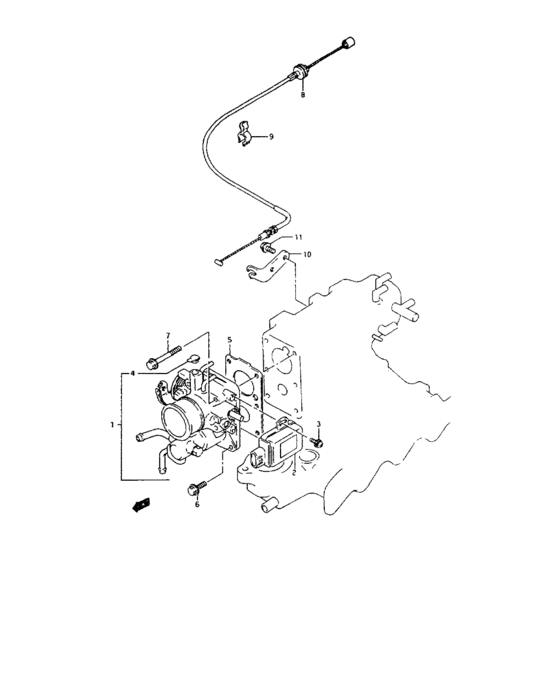

Throttle body (THROTTLE BODY) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-80F00-000 BODY ASSY,THROTTLE |
13400-80F00-000 |
US $1,020.80 |
||
|
2
|
2
13420-64D00-000
SENSOR,THROTTLE POSITION
|
13420-64D00-000 |
— | ||
|
3
|
3
02112-74103-000
Screw
|
02112-74103-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-7410B-000 SCREW |
02112-7410B-000 |
from US $3.71 |
||
|
4
|
4
13419-84150-000
PLUG
|
13419-84150-000 |
— | ||
|
5
|
5
13421-64D02-000
ガスケット,スロットルボディ
|
13421-64D02-000 |
— | ||
| replacement | |||||
|
5
|
5
13421-64D03-000 GASKET,THROTTLE BODY |
13421-64D03-000 |
US $2.40 |
||
|
6
|
6
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
7
|
7
01550-06453-000
Bolt
|
01550-06453-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
8
|
8
15910-80F00-000 CABLE ASSY,ACCEL |
15910-80F00-000 |
US $172.80 |
||
|
9
|
9
09408-00079-000 CLAMP |
09408-00079-000 |
US $1.92 |
||
|
10
|
10
15919-73B52-000
Guide, accel cable
|
15919-73B52-000 |
— | ||
|
11
|
11
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
