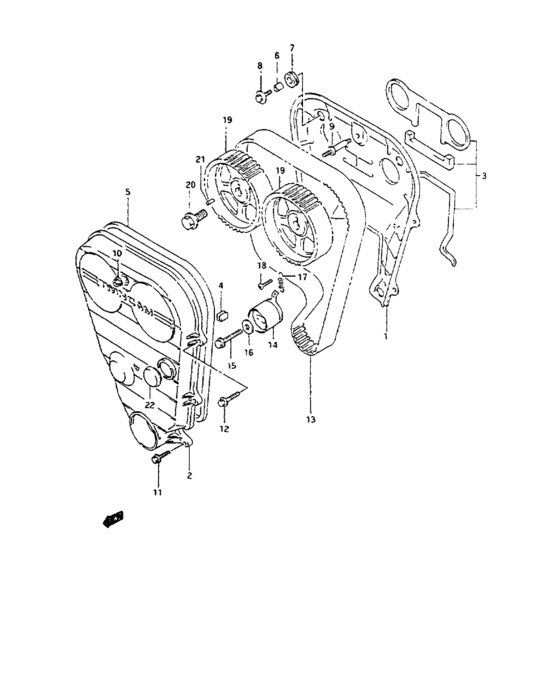

Timing belt (TIMING BELT) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11360-72B00-000
Cover, timing belt, inside
|
11360-72B00-000 |
— | ||
|
2
|
2
11390-72B02-000
COVER,TIMING BELT OUTSIDE
|
11390-72B02-000 |
— | ||
|
3
|
3
11480-53A00-000 SEAL SET,TIMING COVER INSIDE |
11480-53A00-000 |
US $43.20 |
||
|
4
|
4
11394-70B00-000 SEAL |
11394-70B00-000 |
from US $1.49 |
||
|
5
|
5
11396-71C00-000 SEAL,TIMING BELT COVER OUTL : 1070->1063 |
11396-71C00-000 |
from US $5.02 |
||
|
6
|
6
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $0.92 |
||
|
7
|
7
09308-10004-000 GROMMET |
09308-10004-000 |
from US $0.90 |
||
|
8
|
8
09116-06113-000
ボルト,6X16
|
09116-06113-000 |
— | ||
| replacement | |||||
|
8
|
8
09116-06167-000 BOLT(6X20)Bolt (6x20) |
09116-06167-000 |
from US $1.37 |
||
|
9
|
9
11488-69D01-000
STUD BOLT
|
11488-69D01-000 |
— | ||
|
10
|
10
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
11
|
11
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
12
|
12
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
13
|
13
12761-62D10-000
Belt, timing
|
12761-62D10-000 |
— | ||
| replacement | |||||
|
13
|
13
11407-62D30-000 TIMING BELT |
11407-62D30-000 |
US $120 |
||
|
14
|
14
12810-81401-000
テンショナアッシ,タイミングベルト
|
12810-81401-000 |
— | ||
| replacement | |||||
|
14
|
14
12810-81402-000 TENSIONER ASSY,TIMING BELT |
12810-81402-000 |
US $158.40 |
||
|
15
|
15
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
15
|
15
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
16
|
16
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
16
|
16
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
16
|
16
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
17
|
17
12821-70B02-000 SPRING,TENSIONER |
12821-70B02-000 |
US $5.28 |
||
|
18
|
18
02112-06203-000
Screw
|
02112-06203-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-0620B-000 SCREW |
02112-0620B-000 |
US $0.96 |
||
|
18
|
18
02112-0620A-000 SCREWScrew, holder |
02112-0620A-000 |
from US $0.96 |
||
|
19
|
19
12741-61D01-000
PULLEY,CAMSHAFT TIMING BELT
|
12741-61D01-000 |
— | ||
|
20
|
20
01550-12253-000
Bolt
|
01550-12253-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1225A-000 Bolt |
01550-1225A-000 |
from US $1.44 |
||
|
21
|
21
04221-05109-000 PIN |
04221-05109-000 |
from US $0.38 |
||
|
22
|
22
09250-30015-000
Cap
|
09250-30015-000 |
— | ||
| replacement | |||||
|
22
|
22
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
