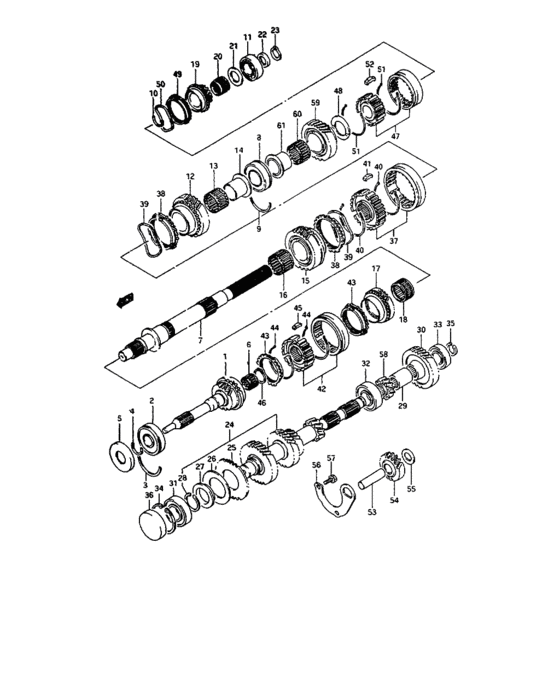

Transmission (TRANSMISSION) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-80F00-000 SHAFT,T/M INPUTNT:23 |
24110-80F00-000 |
US $242.88 |
||
|
2
|
2
09262-20126-000 BEARING(20X49X16) |
09262-20126-000 |
US $96 |
||
|
3
|
3
24152-70000-000
O ring
|
24152-70000-000 |
— | ||
|
4
|
4
09380-20011-000 RING,SNAP |
09380-20011-000 |
US $1.52 |
||
|
5
|
5
24151-70D00-000 SEAL,INPUT SHAFT OIL |
24151-70D00-000 |
US $18.24 |
||
|
6
|
6
09263-17043-000 BEARING(17.5X22X15.8) |
09263-17043-000 |
US $5.92 |
||
|
7
|
7
24121-80F00-000 SHAFT,T/M MAIN |
24121-80F00-000 |
US $217.12 |
||
|
8
|
8
09262-25094-000
ベアリング,25X52X15
|
09262-25094-000 |
— | ||
| replacement | |||||
|
8
|
8
09262-25129-000 BEARING(25X52X15) |
09262-25129-000 |
US $45.60 |
||
|
9
|
9
09390-52003-000 C RING |
09390-52003-000 |
from US $3.47 |
||
|
10
|
10
09380-22010-000 CIRCLIP |
09380-22010-000 |
US $1.92 |
||
|
11
|
11
08133-63047-000 BEARING |
08133-63047-000 |
US $20 |
||
|
12
|
12
24211-70001-000
Gear, main shaft low
NT:32 |
24211-70001-000 |
— | ||
|
13
|
13
09263-30031-000 BEARING(30X35X26.8) |
09263-30031-000 |
from US $8.16 |
||
|
14
|
14
24214-70000-000
Bush, main shaft low gear
|
24214-70000-000 |
— | ||
|
15
|
15
24220-80F00-000 GEAR,MAIN SFT 2NDNT:31 |
24220-80F00-000 |
US $136.44 |
||
|
16
|
16
09263-30030-000 BEARING(30X35X24.8) |
09263-30030-000 |
from US $10.18 |
||
|
17
|
17
24230-80F00-000
GEAR,MAIN SFT 3RD
NT:28 |
24230-80F00-000 |
— | ||
|
18
|
18
24239-80F00-000 BEARING,MAIN SHAFT 3RD GEAR |
24239-80F00-000 |
US $48 |
||
|
19
|
19
24250-80F00-000
GEAR,MAIN SFT 5TH
NT:20 |
24250-80F00-000 |
— | ||
|
20
|
20
09263-22059-000 BEARING(22X26X22.8) |
09263-22059-000 |
US $26.40 |
||
|
21
|
21
24254-70050-000
Washer
|
24254-70050-000 |
— | ||
|
22
|
22
26122-70050-000
Spacer, speedometer gear
|
26122-70050-000 |
— | ||
|
23
|
23
09380-19004-000 RING,SNAP |
09380-19004-000 |
from US $1.64 |
||
|
24
|
24
24130-80F00-000 SHAFT,T/M COUNTERNT:12, 20, 27, 30 |
24130-80F00-000 |
US $404.80 |
||
|
25
|
25
24137-80F00-000 GEAR,T/M FRICTION |
24137-80F00-000 |
US $30.73 |
||
|
26
|
26
24139-80F00-000 SPRING,T/M FRICTION GEAR |
24139-80F00-000 |
US $20 |
||
|
27
|
27
24138-80F00-000 RETAINER,T/M FRICTION GEAR |
24138-80F00-000 |
US $39.01 |
||
|
28
|
28
08331-31286-000
Circlip, 3rd driven
|
08331-31286-000 |
— | ||
| replacement | |||||
|
28
|
28
08331-31289-000 CIRCLIP |
08331-31289-000 |
from US $1.37 |
||
|
29
|
29
24133-85052-000
SPACER,COUNTERSHAFT
|
24133-85052-000 |
— | ||
|
30
|
30
24351-80F00-000
Gear,countershaft 5th
NT : 33 |
24351-80F00-000 |
— | ||
|
31
|
31
09262-20133-000 BEARING(20X47X14) |
09262-20133-000 |
US $58.40 |
||
|
32
|
32
08133-62047-000 BEARINGBearing, rh |
08133-62047-000 |
from US $15.04 |
||
|
33
|
33
09262-17032-000 BEARING(17X47X14) |
09262-17032-000 |
US $43.20 |
||
|
34
|
34
08331-41478-000
Circlip
|
08331-41478-000 |
— | ||
| replacement | |||||
|
34
|
34
08331-41479-000 CIRCLIP |
08331-41479-000 |
from US $2.56 |
||
|
35
|
35
09380-17008-000 CIRCLIP |
09380-17008-000 |
US $1.92 |
||
|
36
|
36
09241-47002-000
PLUG
|
09241-47002-000 |
— | ||
| replacement | |||||
|
36
|
36
09241-47009-000 PLUG |
09241-47009-000 |
US $4.10 |
||
|
37
|
37
24400-73000-000
Hub assy, low speed synchroniz,er
|
24400-73000-000 |
— | ||
|
38
|
38
24431-85020-000 RING,LOW SPEED SYNC |
24431-85020-000 |
US $72.80 |
||
|
39
|
39
24436-84200-000 SPRING,SYNC RING LOW |
24436-84200-000 |
US $13.28 |
||
|
40
|
40
09388-00020-000 SPRING |
09388-00020-000 |
US $1.82 |
||
|
41
|
41
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync |
24472-60B00-000 |
from US $1.92 |
||
|
42
|
42
24410-80F00-000
HUB ASSY,HIGH SPEED SYNC
|
24410-80F00-000 |
— | ||
|
43
|
43
24432-73D00-000 RING,HIGH SPEED SYNC |
24432-73D00-000 |
US $57.60 |
||
|
44
|
44
24442-60B00-000 SPRING,HIGH SPEED SYNC |
24442-60B00-000 |
from US $1.58 |
||
|
45
|
45
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync |
24472-60B00-000 |
from US $1.92 |
||
|
46
|
46
09360-22013-000
Snap ring
|
09360-22013-000 |
— | ||
|
47
|
47
24400-77811-000 HUB SET,5TH SPEED |
24400-77811-000 |
US $464 |
||
|
48
|
48
24417-85460-000
WASHER,5TH SYNC HUB
|
24417-85460-000 |
— | ||
|
49
|
49
24432-73000-000
Ring, high speed synchronizer
|
24432-73000-000 |
— | ||
|
50
|
50
24436-84000-000
SPRING,SYNC RING LOW
|
24436-84000-000 |
— | ||
|
51
|
51
24443-80F00-000 SPRING,5TH SYNC |
24443-80F00-000 |
US $1.60 |
||
|
52
|
52
24473-70D00-000
KEY,5TH SYNC SHIFTING
|
24473-70D00-000 |
— | ||
| replacement | |||||
|
52
|
52
24473-70D10-000 KEY,SYNC |
24473-70D10-000 |
US $1.92 |
||
|
53
|
53
24551-85051-000 SHAFT,REVERSE IDLE GEAR |
24551-85051-000 |
US $32 |
||
|
54
|
54
24560-85052-000
GEAR,REV IDLE
NT : 16 |
24560-85052-000 |
— | ||
|
55
|
55
09166-14012-000 WASHER |
09166-14012-000 |
US $1.12 |
||
|
56
|
56
25482-85051-000 PLATE,REV GEAR SHAFT STOP |
25482-85051-000 |
US $5.96 |
||
|
57
|
57
01570-06163-000
Bolt
|
01570-06163-000 |
— | ||
| replacements | |||||
|
57
|
57
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
57
|
57
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.80 |
||
|
58
|
58
24671-85051-000
GEAR,CTSHFT REV
NT : 12 |
24671-85051-000 |
— | ||
|
59
|
59
24681-85050-000 GEAR,MAIN SFT REVNT : 30 |
24681-85050-000 |
US $207.92 |
||
|
60
|
60
09263-30031-000 BEARING(30X35X26.8) |
09263-30031-000 |
from US $8.16 |
||
|
61
|
61
24564-63C00-000
BUSH,MAIN SHAFT REV GEAR
|
24564-63C00-000 |
— | ||
