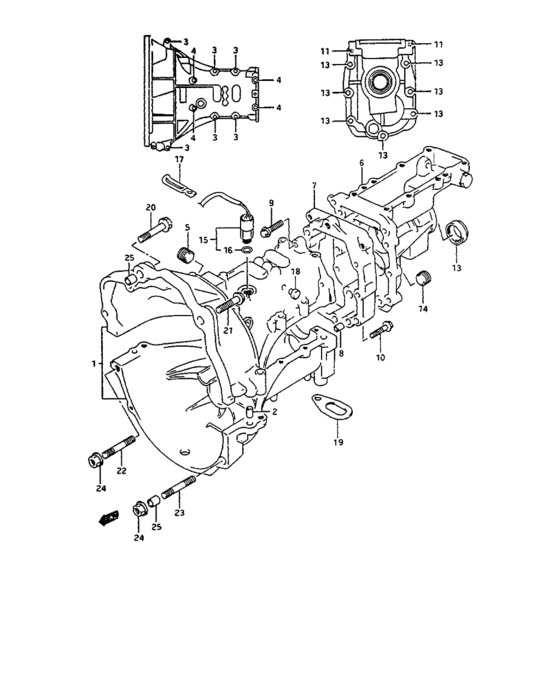

Transmission case (TRANSMISSION CASE) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-82C00-000
Case assy, transmission
|
24700-82C00-000 |
— | ||
| replacement | |||||
|
1
|
1
24700-82C01-000
Case assy,transmission
|
24700-82C01-000 |
— | ||
|
2
|
2
04211-09169-000 PIN |
04211-09169-000 |
from US $0.91 |
||
|
3
|
3
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-08953-000
Bolt
|
01550-08953-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0895B-000 BoltBolt, crankcase (8x95) |
01550-0895B-000 |
US $24.70 |
||
|
4
|
4
01550-0895A-000 BOLT |
01550-0895A-000 |
from US $1.82 |
||
|
5
|
5
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
5
|
5
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
6
|
6
24770-80704-000
CASE,EXTENSION NO.1
|
24770-80704-000 |
— | ||
|
7
|
7
24781-85050-000
Case,extension,no.2
|
24781-85050-000 |
— | ||
|
8
|
8
04211-09169-000 PIN |
04211-09169-000 |
from US $0.91 |
||
|
9
|
9
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
9
|
9
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
10
|
10
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
10
|
10
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
11
|
11
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
11
|
11
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
12
|
12
01550-08703-000
Bolt
|
01550-08703-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0870B-000 BoltBolt, sec case |
01550-0870B-000 |
from US $3.62 |
||
|
13
|
13
24780-79001-000 OIL SEAL |
24780-79001-000 |
US $8.51 |
||
|
14
|
14
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
14
|
14
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
15
|
15
37610-83001-000 SWITCH ASSY,BACK UP LAMP |
37610-83001-000 |
from US $24.19 |
||
|
16
|
16
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
17
|
17
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
| replacement | |||||
|
17
|
17
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
18
|
18
09250-08001-000 PLUG(OD:14)Cap, remote control shaft |
09250-08001-000 |
US $1.28 |
||
|
19
|
19
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
19
|
19
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
20
|
20
01550-10453-000
Bolt
|
01550-10453-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
21
|
21
01550-10403-000
Bolt
|
01550-10403-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-1040B-000 BOLT |
01550-1040B-000 |
from US $3.74 |
||
|
21
|
21
01550-1040A-000 BOLT |
01550-1040A-000 |
from US $1.12 |
||
|
22
|
22
01421-10403-000
New Genuine Part
|
01421-10403-000 |
— | ||
| replacement | |||||
|
22
|
22
01421-1040A-000 BOLT,STUD |
01421-1040A-000 |
from US $1.52 |
||
|
23
|
23
01421-10503-000
Stud bolt (l:50)
|
01421-10503-000 |
— | ||
| replacement | |||||
|
23
|
23
01421-1050A-000 BOLT,STUD |
01421-1050A-000 |
from US $1.67 |
||
|
24
|
24
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
25
|
25
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
25
|
25
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
