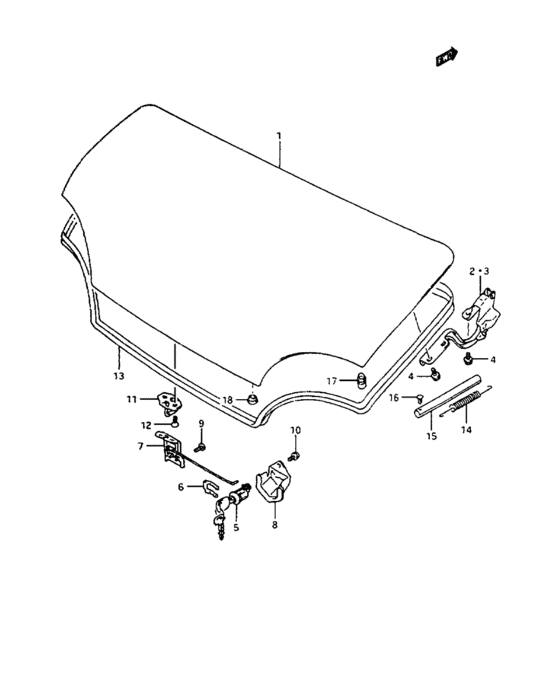

Trunk lid (TRUNK LID) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65700-80F00-000 PANEL,TRUNK LID |
65700-80F00-000 |
US $570.24 |
||
|
2
|
2
65750-80F00-000 HINGE,TRUNK LID,R |
65750-80F00-000 |
US $62.93 |
||
|
3
|
3
65770-80F00-000 HINGE,TRUNK LID,L |
65770-80F00-000 |
US $62.93 |
||
|
4
|
4
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
4
|
4
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
5
|
5
82500-50880-000
Cylinder assy, trunk lid lock
TYPE 1 |
82500-50880-000 |
— | ||
| replacement | |||||
|
5
|
5
82500-50882-000 CYLINDER,TRUNK LID LOCKTYPE 1 |
82500-50882-000 |
US $48.42 |
||
|
5
|
5
82500-50882-000 CYLINDER,TRUNK LID LOCKTYPE 2 |
82500-50882-000 |
US $48.42 |
||
|
6
|
6
82577-70B01-000 CLIP,CYLINDER |
82577-70B01-000 |
US $3.72 |
||
|
7
|
7
82510-80F00-000
Latch assy, trunk lid
TYPE 1 |
82510-80F00-000 |
— | ||
| replacement | |||||
|
7
|
7
82510-80F0V-000 LATCH ASSY,TRUNK LIDTYPE 1 |
82510-80F0V-000 |
US $48.21 |
||
|
7
|
7
82510-80F01-000
Latch assy, trunk lid
TYPE 2 |
82510-80F01-000 |
— | ||
| replacement | |||||
|
7
|
7
82510-80F0V-000 LATCH ASSY,TRUNK LIDTYPE 2 |
82510-80F0V-000 |
US $48.21 |
||
|
8
|
8
82590-80F00-000 COVER,TRUNK LID LOCK CYLINDER |
82590-80F00-000 |
US $14.54 |
||
|
9
|
9
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $1.12 |
||
|
10
|
10
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
10
|
10
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
11
|
11
82650-80F00-000
Striker, trunk lid latch
TYPE 1 |
82650-80F00-000 |
— | ||
| replacement | |||||
|
11
|
11
82650-80F01-000 STRIKER,TRUNK LID LATCHTYPE 1 |
82650-80F01-000 |
US $14.06 |
||
|
11
|
11
82650-80F01-000 STRIKER,TRUNK LID LATCHTYPE 2 |
82650-80F01-000 |
US $14.06 |
||
|
12
|
12
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
12
|
12
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
12
|
12
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
12
|
12
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
12
|
12
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
12
|
12
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
13
|
13
84681-80F00-000
WEATHERSTRIP,TRUNK LID OPNG
|
84681-80F00-000 |
— | ||
|
14
|
14
76681-80F00-000
バランサ,トランクリッド
|
76681-80F00-000 |
— | ||
| replacement | |||||
|
14
|
14
76681-80F0V-000 BALANCER,TRUNK LID |
76681-80F0V-000 |
US $10.30 |
||
|
15
|
15
76682-80F00-000 COVER,TRUNK LID BALANCER |
76682-80F00-000 |
US $12.18 |
||
|
16
|
16
09229-04019-000 RIVETRivet, lower cover 1 |
09229-04019-000 |
US $14.40 |
||
|
17
|
17
76683-70C00-000 CUSHION,TRUNK LID/BACK DR |
76683-70C00-000 |
from US $1.92 |
||
|
18
|
18
09250-15007-000
Plug
|
09250-15007-000 |
— | ||
| replacement | |||||
|
18
|
18
09250-15010-000 PLUG(OD:19)Plug, silencer cover |
09250-15010-000 |
from US $1.60 |
||
