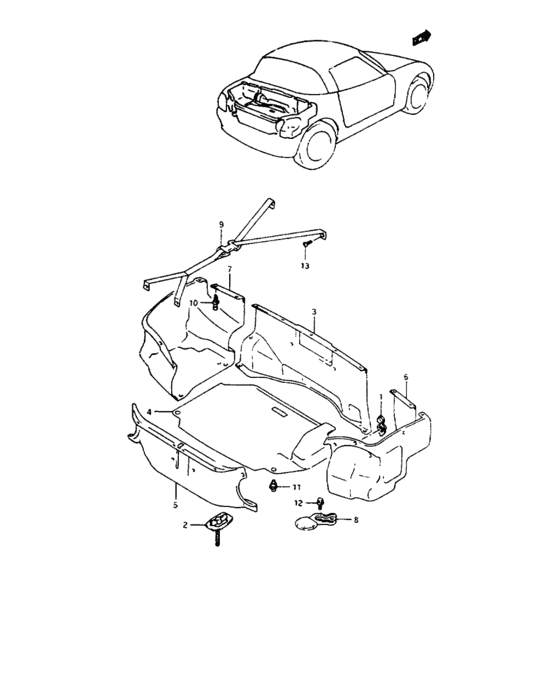

Trunk room (TRUNK ROOM) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36990-60B60-5PK NUT,TRNK ROOM SIDE TRIM |
36990-60B60-5PK |
US $1.60 |
||
|
2
|
2
75450-70C10-000
HOLDER,SPARE TIRE
|
75450-70C10-000 |
— | ||
|
3
|
3
76611-80F00-6TE
TRIM,TRUNK ROOM FRONT
|
76611-80F00-6TE |
— | ||
|
4
|
4
76620-80F00-6TE
COVER,SPARE TIRE
|
76620-80F00-6TE |
— | ||
|
5
|
5
76631-80F00-6TE TRIM,TRUNK ROOM REAR |
76631-80F00-6TE |
US $116.66 |
||
|
6
|
6
76641-80F00-6TE
Trim,trunk room side,r
|
76641-80F00-6TE |
— | ||
|
7
|
7
76651-80F00-6TE
TRIM,TRUNK ROOM SIDE,L
|
76651-80F00-6TE |
— | ||
|
8
|
8
76690-80F00-000
Holder,jack
|
76690-80F00-000 |
— | ||
|
9
|
9
76710-80F00-000
STRAP,TRUNK ROOM
|
76710-80F00-000 |
— | ||
|
10
|
10
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $1.40 |
||
|
11
|
11
09410-00067-000 MALE |
09410-00067-000 |
from US $1.67 |
||
|
12
|
12
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
12
|
12
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
13
|
13
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
13
|
13
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.96 |
||
