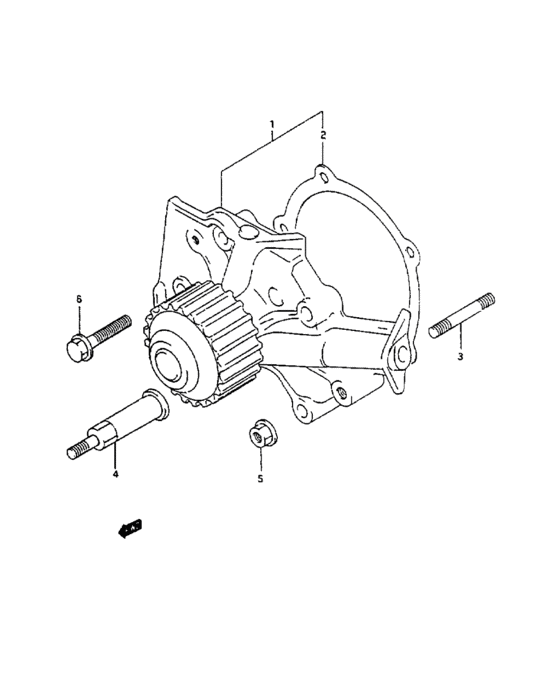

Water pump (WATER PUMP) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-50812-000
ポンプセット,ウォータ
|
17400-50812-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-50813-000 PUMP SET,WATER |
17400-50813-000 |
US $132.80 |
||
|
2
|
2
17431-73001-000 GASKET,WATER PUMP |
17431-73001-000 |
US $1.82 |
||
|
3
|
3
01411-06253-000
Bolt, stud
|
01411-06253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0625A-000 BOLT,STUD |
01411-0625A-000 |
US $0.96 |
||
|
4
|
4
17432-70B00-000
スタッドボルト
|
17432-70B00-000 |
— | ||
| replacement | |||||
|
4
|
4
17432-70B01-000 STUD BOLT |
17432-70B01-000 |
US $24.84 |
||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
