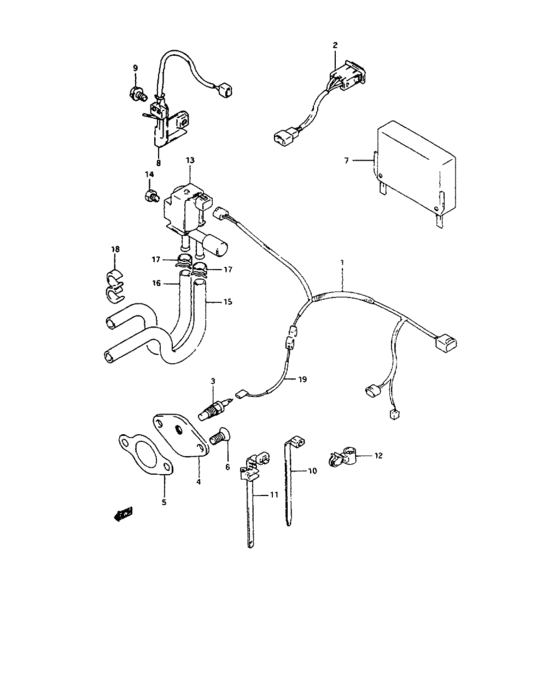

Air con harness (AIR CON HARNESS) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95531-80F01-000
ワイヤリングハーネス,エンジンルーム
|
95531-80F01-000 |
— | ||
|
2
|
2
95571-85500-000
スイッチ,エアコン
|
95571-85500-000 |
— | ||
| replacement | |||||
|
2
|
2
95571-85501-000
SWITCH,AIR CON
|
95571-85501-000 |
— | ||
|
3
|
3
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
|
4
|
4
95191-80F01-000
プレート,ウォータテンパレチャゲージ
|
95191-80F01-000 |
— | ||
|
5
|
5
17699-53F01-000 GASKET |
17699-53F01-000 |
from US $2.40 |
||
|
6
|
6
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
6
|
6
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
7
|
7
95510-60D02-000
コントローラ,エアコン
|
95510-60D02-000 |
— | ||
| replacement | |||||
|
7
|
7
95510-60D03-000
CONTROLLER,A/C
|
95510-60D03-000 |
— | ||
|
8
|
8
95522-70B00-000 SWITCH,ACCEL OFF |
95522-70B00-000 |
US $40.48 |
||
|
9
|
9
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
9
|
9
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
10
|
10
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
11
|
11
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
12
|
12
34935-60000-000
Clamp, no.1 harness/strut
|
34935-60000-000 |
— | ||
|
13
|
13
95161-60D00-000 VSV,IDLE UP |
95161-60D00-000 |
US $68.40 |
||
|
14
|
14
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
15
|
15
95171-80F00-000 HOSE,IDLE UP EPI |
95171-80F00-000 |
US $19.14 |
||
|
16
|
16
95172-80F00-000 HOSE,IDLE UP EPI |
95172-80F00-000 |
US $19.14 |
||
|
17
|
17
09401-11408-000
Clip
|
09401-11408-000 |
— | ||
| replacements | |||||
|
17
|
17
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
17
|
17
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
|
18
|
18
09408-00043-000 CLAMPHolder, fuse case |
09408-00043-000 |
US $9.60 |
||
|
19
|
19
95533-80F00-000
Wire,a/c wtr gauge
|
95533-80F00-000 |
— | ||
