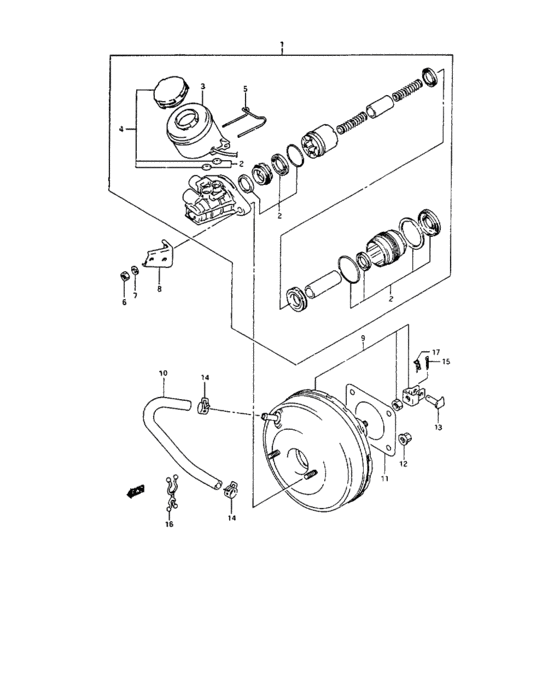

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-80F00-000
CYLINDER ASSY,BRAKE MASTER
|
51100-80F00-000 |
— | ||
|
2
|
2
51810-50E00-000
PISTON SET,BRAKE MASTER
|
51810-50E00-000 |
— | ||
|
3
|
3
51210-80F00-000
Reservoir, master cylinder
|
51210-80F00-000 |
— | ||
| replacement | |||||
|
3
|
3
51200-80F00-000
RESERVOIR ASSY,MASTER CYLINDER
|
51200-80F00-000 |
— | ||
|
4
|
4
51290-70B40-000
キャップセット,リザーバ
|
51290-70B40-000 |
— | ||
| replacement | |||||
|
4
|
4
51290-69D00-000 CAP SET,RESERVOIR |
51290-69D00-000 |
US $202.40 |
||
|
5
|
5
51233-80F00-000
リテーナ,リザーバ
|
51233-80F00-000 |
— | ||
|
6
|
6
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
7
|
7
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
7
|
7
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
8
|
8
51199-80F00-000
BRACKET
|
51199-80F00-000 |
— | ||
|
9
|
9
51300-80F00-000
BOOSTER ASSY,BRAKE MASTER
|
51300-80F00-000 |
— | ||
|
10
|
10
51010-80F00-000 HOSE,BRAKE VACUUM |
51010-80F00-000 |
US $109.60 |
||
|
11
|
11
51132-60D00-000
パッキング,ブレーキマスタシリンダ
|
51132-60D00-000 |
— | ||
| replacement | |||||
|
11
|
11
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
12
|
12
09159-08052-000
ナット
|
09159-08052-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
13
|
13
09200-08068-000
ピン
|
09200-08068-000 |
— | ||
| replacement | |||||
|
13
|
13
09200-08069-000 PIN |
09200-08069-000 |
US $21.70 |
||
|
14
|
14
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
15
|
15
04111-25208-000
25 x 20 cotter
TYPE 1 |
04111-25208-000 |
— | ||
| replacement | |||||
|
15
|
15
04111-2520A-000 PINTYPE 1 |
04111-2520A-000 |
from US $0.80 |
||
|
16
|
16
09408-00013-000 CLAMPClamp |
09408-00013-000 |
US $1.92 |
||
|
17
|
17
09385-08007-000 PIN,SNAPClip TYPE 2 |
09385-08007-000 |
from US $1.09 |
||
