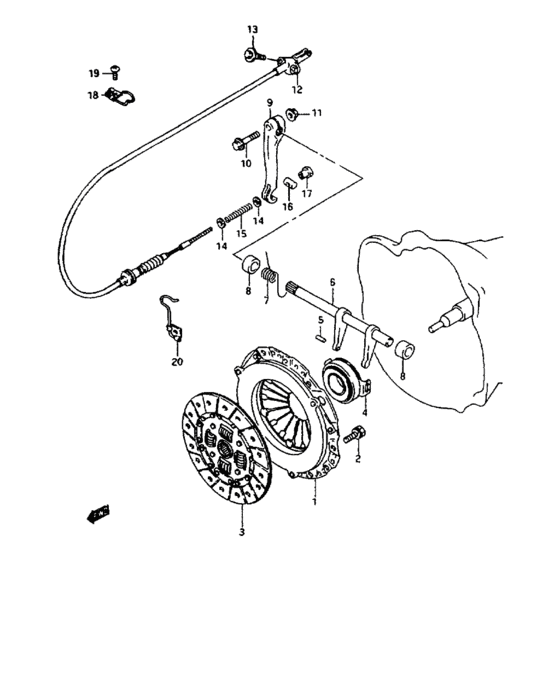

Clutch (CLUTCH) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-80F00-000
Cover assy, clutch
|
22100-80F00-000 |
— | ||
| replacement | |||||
|
1
|
1
22100-78A81-000 COVER ASSY,CLUTCH |
22100-78A81-000 |
US $126.16 |
||
|
2
|
2
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
2
|
2
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
3
|
3
22400-80F00-000
Disc, clutch
|
22400-80F00-000 |
— | ||
| replacement | |||||
|
3
|
3
22400-80F01-000 DISC,CLUTCH |
22400-80F01-000 |
US $89.60 |
||
|
4
|
4
23265-80F00-000
Bearing
|
23265-80F00-000 |
— | ||
| replacement | |||||
|
4
|
4
23265-77D00-000 BEARING,CLUTCH RELEASE |
23265-77D00-000 |
US $168 |
||
|
5
|
5
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
6
|
6
23260-82C02-000
SHAFT,CLUTCH RELEASE
|
23260-82C02-000 |
— | ||
|
7
|
7
23269-82C10-000
SPRING,CLUTCH RETURN
|
23269-82C10-000 |
— | ||
|
8
|
8
09300-14017-000 BUSH(14X22X15) |
09300-14017-000 |
from US $2.13 |
||
|
9
|
9
23266-80F00-000 ARM,CLUTCH RELEASE |
23266-80F00-000 |
US $35.51 |
||
|
10
|
10
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
10
|
10
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
11
|
11
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
23710-80F00-000 CABLE ASSY,CLUTCH |
23710-80F00-000 |
US $827.92 |
||
|
13
|
13
09119-06051-000 BOLT(6X21) |
09119-06051-000 |
US $11 |
||
|
14
|
14
08322-01063-000
Washer
|
08322-01063-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
15
|
15
09440-08027-000 SPRING |
09440-08027-000 |
US $14.40 |
||
|
16
|
16
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.82 |
||
|
17
|
17
09150-06014-000
Nut
|
09150-06014-000 |
— | ||
| replacement | |||||
|
17
|
17
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
|
18
|
18
23917-80F00-000
クランプ,クラッチケーブル,NO.1
|
23917-80F00-000 |
— | ||
| replacement | |||||
|
18
|
18
23917-80F0V-000
Clamp,clutch cable no.1
|
23917-80F0V-000 |
— | ||
|
19
|
19
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
20
|
20
23918-80F00-000
クランプ,クラッチケーブル,NO.2
|
23918-80F00-000 |
— | ||
