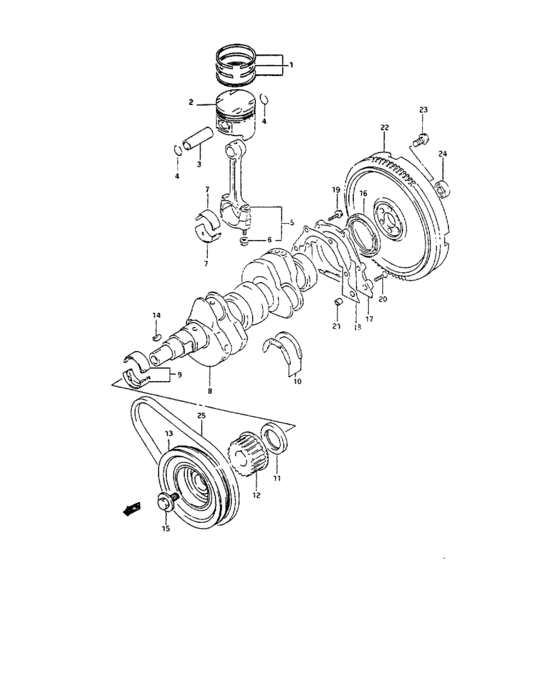

Crankshaft (CRANKSHAFT) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-50E50-000 RING SET,PISTON |
12140-50E50-000 |
US $152 |
||
|
1
|
1
12140-50E50-025
Ring set,piston,os:0.25
|
12140-50E50-025 |
— | ||
|
1
|
1
12140-50E50-050
RING SET,PISTON OS:0.50
|
12140-50E50-050 |
— | ||
|
2
|
2
12111-62D51-0B0 PISTON,STD |
12111-62D51-0B0 |
US $174.40 |
||
|
2
|
2
12111-62D51-025
Piston
|
12111-62D51-025 |
— | ||
|
2
|
2
12111-62D51-050
Piston,os:0.5
|
12111-62D51-050 |
— | ||
|
3
|
3
12151-54A50-000 PIN,PISTON |
12151-54A50-000 |
from US $7.92 |
||
|
4
|
4
09381-18005-000 CIRCLIP |
09381-18005-000 |
from US $1.12 |
||
|
5
|
5
12160-60D50-000
コネクチングロッドアッシ
|
12160-60D50-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-60D51-000 CONNROD ASSY |
12160-60D51-000 |
US $214.32 |
||
|
6
|
6
09159-08033-000 NUT |
09159-08033-000 |
from US $1.34 |
||
|
7
|
7
12181-54A50-0A0 BEARING,CONNRODBearing, connrod T : 1.5 |
12181-54A50-0A0 |
from US $15.91 |
||
| replacement | |||||
|
7
|
7
12181-81051-000
BEARING,CONNROD std
T : 1.5 |
12181-81051-000 |
— | ||
|
8
|
8
12221-60D50-000
クランクシャフト
|
12221-60D50-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-60H50-000
CRANKSHAFT
|
12221-60H50-000 |
— | ||
|
9
|
9
12300-61810-0A0
ベアリングセット,クランクシャフト
T : 2.0 |
12300-61810-0A0 |
— | ||
| replacement | |||||
|
9
|
9
12300-61810-0B0 BEARING SET,CRANKSHAFTT : 2.0 |
12300-61810-0B0 |
US $270.40 |
||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
T : 2.5 |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)T : 2.5 |
12300-60840-000 |
from US $9.70 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
T : 2.563 |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)T : 2.563 |
12300-60840-012 |
from US $9.36 |
||
|
11
|
11
09283-32038-000
オイルシール,32X47X6
|
09283-32038-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
12
|
12
12631-61D01-000
PULLEY,CRANK TIMING BELT
|
12631-61D01-000 |
— | ||
|
13
|
13
12610-80F00-000 PULLEY,CRANKSHAFT |
12610-80F00-000 |
US $548.80 |
||
|
14
|
14
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.49 |
||
|
15
|
15
12619-60B00-000 BOLT,CRANK PULLEY |
12619-60B00-000 |
US $7.36 |
||
|
16
|
16
09283-60005-000
OIL SEAL
|
09283-60005-000 |
— | ||
| replacement | |||||
|
16
|
16
09283-60009-000 SEAL,OIL(60X80X8) |
09283-60009-000 |
from US $17.91 |
||
|
17
|
17
11341-70B01-000 HOUSING,OIL SEAL |
11341-70B01-000 |
US $31.16 |
||
|
18
|
18
11349-73010-000 GASKET,OIL SEAL HSG |
11349-73010-000 |
US $5.76 |
||
|
19
|
19
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
20
|
20
02122-06253-000
Screw (6x25)
|
02122-06253-000 |
— | ||
| replacement | |||||
|
20
|
20
02122-0625A-000 SCREW |
02122-0625A-000 |
from US $0.80 |
||
|
21
|
21
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.96 |
||
|
22
|
22
12620-80F03-000 FLYWHEEL |
12620-80F03-000 |
US $429.44 |
||
|
23
|
23
09103-10097-000 BOLT(10X17) |
09103-10097-000 |
US $1.12 |
||
|
24
|
24
12623-70B00-000 BEARING,INPUT SHAFT |
12623-70B00-000 |
US $15.96 |
||
|
25
|
25
17521-70B01-000
ベルト,オルタネータ,L:590
|
17521-70B01-000 |
— | ||
| replacement | |||||
|
25
|
25
17521-70B90-000 BELT,ALTERNATOR L:592 |
17521-70B90-000 |
US $11.20 |
||
