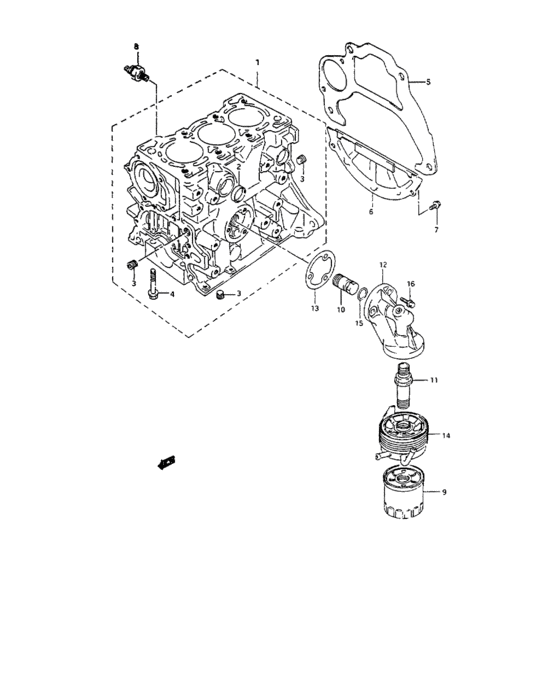

Cylinder (CYLINDER) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-60D51-000
ブロックアッシ,シリンダ
|
11200-60D51-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-76GV1-000
BLOCK ASSY,CYLINDER
|
11200-76GV1-000 |
— | ||
|
2
|
2
09241-30009-000
Plug
|
09241-30009-000 |
— | ||
| replacement | |||||
|
2
|
2
09241-30010-000 PLUG |
09241-30010-000 |
US $2.40 |
||
|
3
|
3
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
3
|
3
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
4
|
4
09103-10022-000
BOLT(10X54)
|
09103-10022-000 |
— | ||
|
5
|
5
11311-82C00-000
Plate, clutch housing upper
|
11311-82C00-000 |
— | ||
| replacement | |||||
|
5
|
5
11311-83C02-000 PLATE,CLUTCH HSG UPPER |
11311-83C02-000 |
US $42.69 |
||
|
6
|
6
11320-60C00-000
プレート,クラッチハウジング,ロア
|
11320-60C00-000 |
— | ||
| replacement | |||||
|
6
|
6
11320-60C03-000
PLATE,CLUTCH HSG LOWER
|
11320-60C03-000 |
— | ||
|
7
|
7
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
7
|
7
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
8
|
8
37820-82001-000
Switch assy, oil pressure
|
37820-82001-000 |
— | ||
| replacement | |||||
|
8
|
8
37820-820P0-000 SWITCH ASSY,OIL PRESSURE |
37820-820P0-000 |
from US $12.02 |
||
|
9
|
9
16510-82701-000
フィルタ,オイル(TOKYO ROKI)
|
16510-82701-000 |
— | ||
| replacements | |||||
|
9
|
9
16510-60B00-CDN
Oil filter
|
16510-60B00-CDN |
— | ||
|
9
|
9
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil |
16510-82703-000 |
from US $13.41 |
||
|
10
|
10
11241-85400-000 STAND,OIL FILTER CYL |
11241-85400-000 |
US $7.04 |
||
|
11
|
11
11241-54E00-000 STAND,OIL COOLER |
11241-54E00-000 |
from US $31.99 |
||
|
12
|
12
16531-80F00-000
ケース,オイルクーラアダプタ
|
16531-80F00-000 |
— | ||
|
13
|
13
16539-76001-000 GASKET,OIL ADAPTER CASE |
16539-76001-000 |
US $4.26 |
||
|
14
|
14
16600-80F00-000 COOLER ASSY,OIL |
16600-80F00-000 |
US $804.80 |
||
|
15
|
15
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe |
09280-16005-000 |
from US $1.40 |
||
|
16
|
16
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
16
|
16
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
