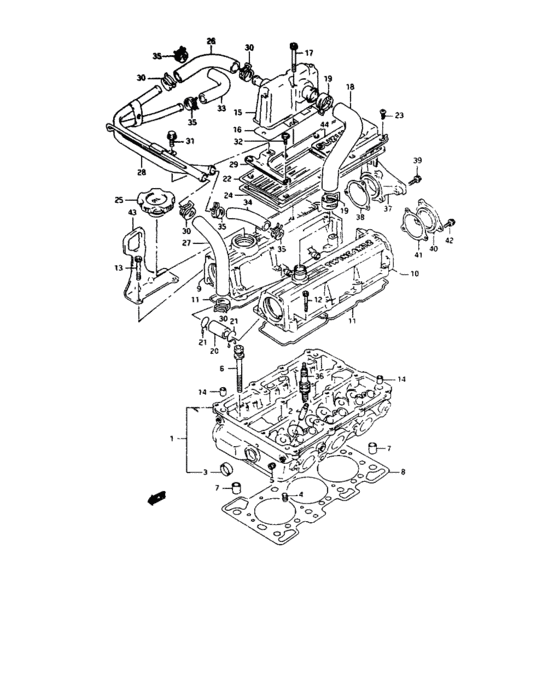

Cylinder head (CYLINDER HEAD) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-53A05-000
Head,cylinder
|
11110-53A05-000 |
— | ||
|
2
|
2
11115-62000-001
Guide, valve
|
11115-62000-001 |
— | ||
|
3
|
3
09241-20004-000
プラグ
|
09241-20004-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
4
|
4
11112-53A00-000 PLUG,OIL VENTURI |
11112-53A00-000 |
from US $2.24 |
||
|
5
|
5
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.42 |
||
|
6
|
6
11117-52E10-000 BOLT,CYLINDER HEAD |
11117-52E10-000 |
from US $2.75 |
||
|
7
|
7
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
7
|
7
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
8
|
8
11141-81411-000
ガスケット,シリンダヘッド
|
11141-81411-000 |
— | ||
| replacement | |||||
|
8
|
8
11141-81401-000 GASKET,CYL HEAD |
11141-81401-000 |
from US $66.42 |
||
|
9
|
9
11120-80F00-000
Housing,intake camshaft
|
11120-80F00-000 |
— | ||
| replacement | |||||
|
9
|
9
11120-80F0V-000 HOUSING,INTAKE CAMSHAFT |
11120-80F0V-000 |
US $784.32 |
||
|
10
|
10
11130-80F00-000
ハウジング,エキゾーストカムシャフト
|
11130-80F00-000 |
— | ||
| replacement | |||||
|
10
|
10
11130-80F0V-000 HOUSING,EXHAUST CAMSHAFT |
11130-80F0V-000 |
US $1,140.48 |
||
|
11
|
11
11139-53A03-000 GASKET,CAMSHAFT HOUSING |
11139-53A03-000 |
US $52.80 |
||
|
12
|
12
07130-06353-000
Bolt, ignition coil
|
07130-06353-000 |
— | ||
| replacement | |||||
|
12
|
12
07130-0635B-000 BOLTBolt, magneto stator |
07130-0635B-000 |
from US $0.91 |
||
|
13
|
13
07130-06403-000
Bolt
|
07130-06403-000 |
— | ||
| replacement | |||||
|
13
|
13
07130-0640B-000 BoltBolt, camshaft housing |
07130-0640B-000 |
from US $1.12 |
||
|
14
|
14
04211-09129-000 PINPin |
04211-09129-000 |
from US $0.96 |
||
|
14
|
14
04211-09109-000 PINKnock pin EAIIR-116638~ |
04211-09109-000 |
from US $0.96 |
||
|
15
|
15
11180-80F01-000
ケース,ブリーザ
|
11180-80F01-000 |
— | ||
|
16
|
16
11189-53A01-000 GASKET,BREATHER CASE |
11189-53A01-000 |
US $23.56 |
||
|
17
|
17
09106-06042-000
ボルト,6X70
|
09106-06042-000 |
— | ||
| replacement | |||||
|
17
|
17
07130-0670B-000 BOLT |
07130-0670B-000 |
from US $1.22 |
||
|
18
|
18
11124-73B00-000 HOSE,BREATHER CASE |
11124-73B00-000 |
US $42.40 |
||
|
19
|
19
09401-26402-000
Clamp(ca)
|
09401-26402-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-26408-000 CLIP |
09401-26408-000 |
US $1.68 |
||
|
20
|
20
11123-53A00-000
ホース,オイルドレーン
|
11123-53A00-000 |
— | ||
|
21
|
21
09401-16401-000 CLIP |
09401-16401-000 |
from US $1.92 |
||
|
22
|
22
11170-80F00-000
カバー,カムシャフトハウジング
|
11170-80F00-000 |
— | ||
| replacement | |||||
|
22
|
22
11170-80F01-000 COVER,CAMSHAFT HOUSING |
11170-80F01-000 |
US $56 |
||
|
23
|
23
02112-05103-000
Bolt
|
02112-05103-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
24
|
24
11173-53A01-000
SEAL,CAMSHAFT HOUSING COVER
|
11173-53A01-000 |
— | ||
|
25
|
25
16920-86502-000
Cap, oil filler
|
16920-86502-000 |
— | ||
| replacements | |||||
|
25
|
25
16920-83G00-000
Cap,oil filler
|
16920-83G00-000 |
— | ||
|
25
|
25
16920-83G01-000
CAP OIL FILLER
|
16920-83G01-000 |
— | ||
|
26
|
26
11191-80F00-000
ホース,ブリーザ
|
11191-80F00-000 |
— | ||
| replacement | |||||
|
26
|
26
11191-71X5V-000 HOSE,BREATHER |
11191-71X5V-000 |
US $25.60 |
||
|
27
|
27
11192-80F00-000 HOSE,BREATHER |
11192-80F00-000 |
US $24 |
||
|
28
|
28
18340-80F00-000
パイプ,ブリーザ
|
18340-80F00-000 |
— | ||
|
29
|
29
18346-80F00-000 BRACKET,PIPE |
18346-80F00-000 |
US $9.72 |
||
|
30
|
30
09401-18402-000 クリップ |
09401-18402-000 |
US $1.10 |
||
| replacement | |||||
|
30
|
30
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.33 |
||
|
31
|
31
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
31
|
31
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
32
|
32
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
32
|
32
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
32
|
32
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
33
|
33
18587-80F00-000 HOSE,ISC INTK |
18587-80F00-000 |
US $26.40 |
||
|
34
|
34
18586-80F00-000
ホース,アイドルスピードコントロールバルブ
|
18586-80F00-000 |
— | ||
| replacement | |||||
|
34
|
34
18586-80F50-000 HOSE,CHAMBER INLET NO.1 |
18586-80F50-000 |
US $26.40 |
||
|
35
|
35
09401-16402-000 Clip, 2nd air hose no.2 |
09401-16402-000 |
US $2.15 |
||
| replacement | |||||
|
35
|
35
09401-16403-000 CLIPClip, 2nd air hose no.2 |
09401-16403-000 |
from US $3.86 |
||
|
36
|
36
09482-00479-000
PLUG,SPARK(DCPR7EVX)
|
09482-00479-000 |
— | ||
|
37
|
37
11161-53A00-000
CASE,DISTRIBUTOR
|
11161-53A00-000 |
— | ||
|
39
|
39
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
39
|
39
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
40
|
40
12749-53A01-000 PLATE,CAMSHAFT THRUST |
12749-53A01-000 |
US $14.28 |
||
|
41
|
41
12745-53A02-000 GASKET,CAMSHAFT THRUST PLATE |
12745-53A02-000 |
US $3.68 |
||
|
42
|
42
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
42
|
42
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
43
|
43
11851-80F00-000
Hook,engine
|
11851-80F00-000 |
— | ||
|
44
|
44
11966-80F00-000
プレート,カムハウジングカバー
|
11966-80F00-000 |
— | ||
