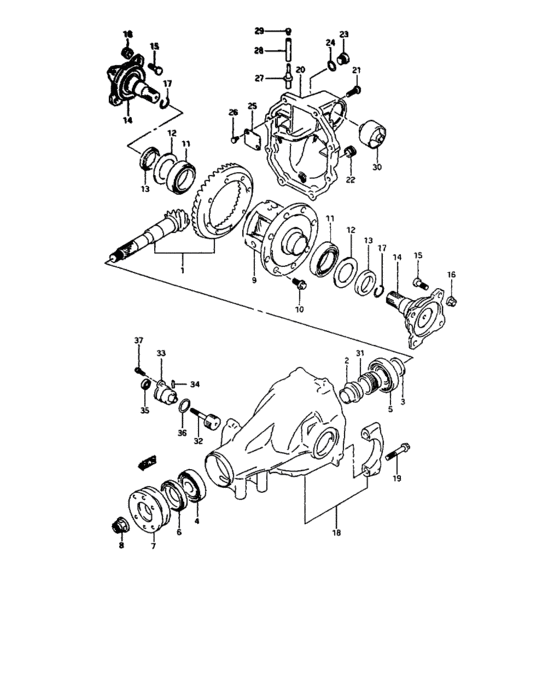

Defferential gear (W/LSD) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27300-80860-000
Bevel pinion & gear set
NT : 8, 41 |
27300-80860-000 |
— | ||
|
2
|
2
27315-80F00-000
スペーサ,ピニオンベアリング
|
27315-80F00-000 |
— | ||
| replacement | |||||
|
2
|
2
27315-80F01-000 SPACER,PINION BEARING |
27315-80F01-000 |
US $56 |
||
|
3
|
3
29521-74C40-000 SHIM,BEVEL PINION T:0.72 |
29521-74C40-000 |
US $2.74 |
||
|
3
|
3
29521-74C60-000 SHIM,T/F PINION BRG T:0.78 |
29521-74C60-000 |
US $2.74 |
||
|
3
|
3
29521-74C80-000 SHIM,BEVEL PINION T:0.84 |
29521-74C80-000 |
US $2.74 |
||
|
3
|
3
09181-30043-000
Shim (t:0.90)
|
09181-30043-000 |
— | ||
| replacement | |||||
|
3
|
3
09181-30164-000 SHIM(30X40X0.9)Shim (t:0.90) |
09181-30164-000 |
from US $2.61 |
||
|
3
|
3
09181-30044-000
Shim (t:0.95)
|
09181-30044-000 |
— | ||
| replacement | |||||
|
3
|
3
09181-30165-000 SHIM(30X40X0.95)Shim (t:0.95) |
09181-30165-000 |
from US $5.02 |
||
|
3
|
3
09170-30381-100
Shim,30x38x1
|
09170-30381-100 |
— | ||
|
3
|
3
09170-30381-106
Shim,30x38x1.06
|
09170-30381-106 |
— | ||
|
3
|
3
09170-30381-112
SHIM(30X38X1.12)
|
09170-30381-112 |
— | ||
|
4
|
4
09265-25005-000
ベアリング,25X62X18.25
|
09265-25005-000 |
— | ||
| replacement | |||||
|
4
|
4
09265-25039-000 BEARING(25X62X18.25) |
09265-25039-000 |
US $27.20 |
||
|
5
|
5
09265-30012-000
Rt 30x72x21 brg
|
09265-30012-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-30018-000 BEARING(30X72X20.75) |
09265-30018-000 |
from US $38.40 |
||
|
6
|
6
27371-80F00-000 OIL SEAL,DIFF INPUT |
27371-80F00-000 |
US $29.60 |
||
|
7
|
7
27110-63202-000 FLANGE,UNIVERSAL JOINT |
27110-63202-000 |
US $70.29 |
||
|
8
|
8
27375-80F00-000 NUT,DRIVE PINION |
27375-80F00-000 |
US $16.80 |
||
|
9
|
9
27400-80810-000
LSDセット
|
27400-80810-000 |
— | ||
|
10
|
10
09103-10028-000
Bolt, oil pump drive gear
|
09103-10028-000 |
— | ||
| replacement | |||||
|
10
|
10
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear |
09103-10290-000 |
from US $1.76 |
||
|
11
|
11
27395-80F00-000 BEARING,DIFF SIDE |
27395-80F00-000 |
US $136 |
||
|
12
|
12
27453-80F00-230 SHIM,DIFF SIDE T:2.30 |
27453-80F00-230 |
US $35.20 |
||
|
12
|
12
27453-80F00-236 SHIM,DIFF SIDE T:2.36 |
27453-80F00-236 |
US $14.76 |
||
|
12
|
12
27453-80F00-242 SHIM,DIFF SIDE T:2.42 |
27453-80F00-242 |
US $14.76 |
||
|
12
|
12
27453-80F00-248 SHIM,DIFF SIDE T:2.48 |
27453-80F00-248 |
US $14.76 |
||
|
12
|
12
27453-80F00-254 SHIM,DIFF SIDE T:2.54 |
27453-80F00-254 |
US $35.20 |
||
|
12
|
12
27453-80F00-260 SHIM,DIFF SIDE T:2.60 |
27453-80F00-260 |
US $14.76 |
||
|
13
|
13
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil |
27431-73B20-000 |
US $11.63 |
||
| replacement | |||||
|
13
|
13
27431-73H30-000 SEAL,OIL |
27431-73H30-000 |
from US $12.67 |
||
|
14
|
14
27780-80F00-000
FLANGE,DRIVE SHAFT
|
27780-80F00-000 |
— | ||
|
15
|
15
09119-10050-000
ボルト,10X30
|
09119-10050-000 |
— | ||
| replacement | |||||
|
15
|
15
09119-10049-XC0 BOLT |
09119-10049-XC0 |
from US $2.24 |
||
|
16
|
16
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
17
|
17
09381-24001-000 RING,SNAPRing (od:24,d:1.6) |
09381-24001-000 |
from US $1.60 |
||
|
18
|
18
27450-80F00-000
CARRIER ASSY,DIFF
|
27450-80F00-000 |
— | ||
|
19
|
19
09111-10054-000 BOLT(10X50) |
09111-10054-000 |
US $35.30 |
||
|
20
|
20
27461-80F00-000
カバー,ディファレンシャル
|
27461-80F00-000 |
— | ||
| replacements | |||||
|
20
|
20
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
20
|
20
27461-80F01-000
Cover,diff
|
27461-80F01-000 |
— | ||
|
20
|
20
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
21
|
21
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
21
|
21
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
22
|
22
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
23
|
23
09247-16005-000 PLUG |
09247-16005-000 |
US $5.44 |
||
|
24
|
24
09168-16004-000 ガスケット |
09168-16004-000 |
US $1.82 |
||
| replacement | |||||
|
24
|
24
09168-16002-000 GASKET(16X22X2) |
09168-16002-000 |
from US $0.90 |
||
|
25
|
25
27465-80F00-000
PLATE,OIL PROTECT
|
27465-80F00-000 |
— | ||
|
26
|
26
01500-06103-000
Bolt, drive
|
01500-06103-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0610B-000 BOLTBolt |
01500-0610B-000 |
from US $0.80 |
||
|
27
|
27
24714-56F00-000 UNION,T/F BREATHER |
24714-56F00-000 |
US $6.29 |
||
|
28
|
28
09354-70123-300
Hose,fuel filter & cock
L : 300->40 |
09354-70123-300 |
— | ||
| replacements | |||||
|
28
|
28
44421-12FR0-000 HOSEL : 300->40 |
44421-12FR0-000 |
from US $16.64 |
||
|
28
|
28
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L : 300->40 |
09355-70125-600 |
from US $5.51 |
||
|
29
|
29
46543-60A00-000
プラグ,ブリーザ
|
46543-60A00-000 |
— | ||
| replacement | |||||
|
29
|
29
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
30
|
30
29658-80F00-000 MOUNT,DIFF RR |
29658-80F00-000 |
US $102.40 |
||
|
31
|
31
26121-80F00-000
Gear,speedometer drive
NT : 6 |
26121-80F00-000 |
— | ||
|
32
|
32
26131-80F00-000
GEAR,SPDOM DRIVEN
NT : 27 |
26131-80F00-000 |
— | ||
|
33
|
33
29431-60A00-000
ケース,スピードメータドリブンギヤ
|
29431-60A00-000 |
— | ||
| replacement | |||||
|
33
|
33
29430-60810-000 CASE SET,SPEEDOMETER GEAR |
29430-60810-000 |
US $57.01 |
||
|
34
|
34
09205-03022-000
Spring pin
|
09205-03022-000 |
— | ||
| replacement | |||||
|
34
|
34
09205-03028-000 PIN,SPRING(3X14)Pin, driveshaft spring |
09205-03028-000 |
US $12.50 |
||
|
35
|
35
09282-07002-000
オイルシール,7X16X5
|
09282-07002-000 |
— | ||
| replacement | |||||
|
35
|
35
09282-07001-000
SEAL,OIL(7X16X5)
|
09282-07001-000 |
— | ||
|
36
|
36
09280-24009-000 O RING(D:3.6,ID:23.5)O ring |
09280-24009-000 |
from US $10.85 |
||
|
37
|
37
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
37
|
37
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
