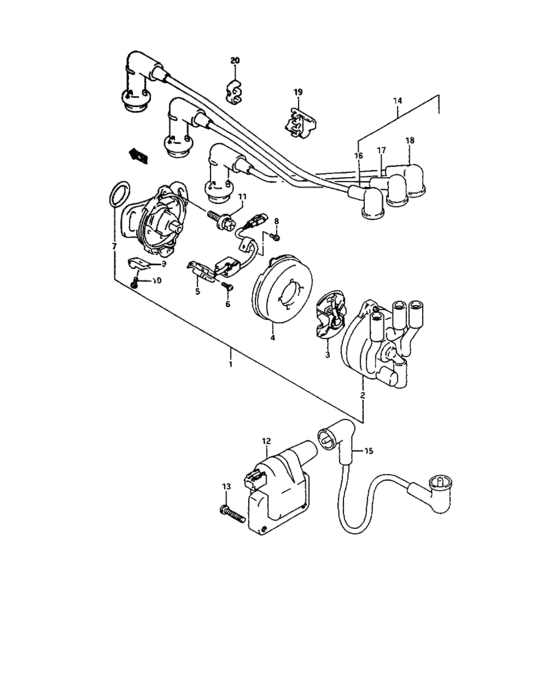

Distributor (DISTRIBUTOR) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-80F10-000 DISTRIBUTOR ASSY |
33100-80F10-000 |
US $1,713.12 |
||
|
2
|
2
33321-80F10-000
CAP,DISTRIBUTOR
|
33321-80F10-000 |
— | ||
|
3
|
3
33310-70B50-000 ROTOR ASSY |
33310-70B50-000 |
US $24 |
||
|
4
|
4
33326-60E10-000 COVER ASSY |
33326-60E10-000 |
US $56 |
||
|
5
|
5
33140-80F10-000
ピックアップアッシ
|
33140-80F10-000 |
— | ||
| replacement | |||||
|
5
|
5
33140-70B50-000
PICKUP ASSY
|
33140-70B50-000 |
— | ||
|
6
|
6
33151-70B50-000
Screw,pickup
|
33151-70B50-000 |
— | ||
|
7
|
7
33278-60B40-000 O-RING |
33278-60B40-000 |
from US $3.04 |
||
|
8
|
8
02112-34103-000
Screw
|
02112-34103-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3410A-000 SCREW |
02112-3410A-000 |
from US $2.99 |
||
|
9
|
9
33239-80F10-000
クランプ,ディストリビュータ
|
33239-80F10-000 |
— | ||
|
10
|
10
33187-64B70-000 SCREW |
33187-64B70-000 |
US $1.69 |
||
|
11
|
11
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $1.49 |
||
|
12
|
12
33410-80F10-000
コイルアッシ,イグニツシヨン
|
33410-80F10-000 |
— | ||
| replacement | |||||
|
12
|
12
33410-60E20-000
COIL ASSY,IGNITION
|
33410-60E20-000 |
— | ||
|
13
|
13
02112-35253-000
Screw
|
02112-35253-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-3525B-000 SCREW |
02112-3525B-000 |
from US $2.21 |
||
|
14
|
14
33700-80F10-000
Cord set, high tension
|
33700-80F10-000 |
— | ||
| replacements | |||||
|
14
|
14
33705-80F10-000
CORD SET,HIGH TENSION
|
33705-80F10-000 |
— | ||
|
14
|
14
33710-80F10-000
CORD,HT NO.1
|
33710-80F10-000 |
— | ||
|
15
|
15
33710-80F10-000
CORD,HT NO.1
|
33710-80F10-000 |
— | ||
|
16
|
16
33730-80F10-000
コード,ハイテンション,NO.2
|
33730-80F10-000 |
— | ||
|
17
|
17
33740-80F10-000
コード,ハイテンション,NO.3
|
33740-80F10-000 |
— | ||
|
18
|
18
33750-80F10-000
コード,ハイテンション,NO.4
|
33750-80F10-000 |
— | ||
|
19
|
19
33882-81011-000 PROTECTOR,HIGH TENSION CORD |
33882-81011-000 |
US $11.20 |
||
|
20
|
20
09408-00104-000 CLAMP |
09408-00104-000 |
US $21.70 |
||
