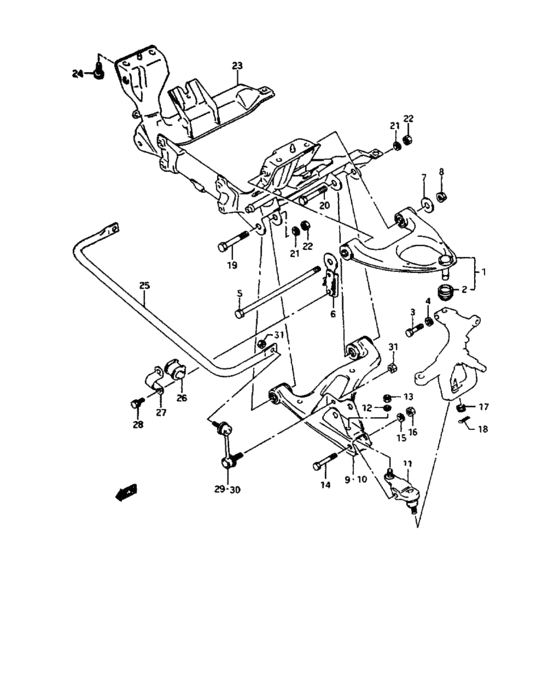

Front suspension arm (FRONT SUSPENSION ARM) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45200-80F00-000
ARM ASSY,FR SPNSN UPR
TYPE 1 |
45200-80F00-000 |
— | ||
|
1
|
1
45200-80F01-000
ARM ASSY,FR SPNSN
TYPE 2 |
45200-80F01-000 |
— | ||
|
2
|
2
45723-60B00-000
SEAL SET,BALL JOINT
|
45723-60B00-000 |
— | ||
| replacements | |||||
|
2
|
2
45723-60B01-000
Seal Set,ball Joint
|
45723-60B01-000 |
— | ||
|
2
|
2
45700-60820-000 Seal Set,ball Joint |
45700-60820-000 |
US $39.20 |
||
|
3
|
3
09100-10184-000 BOLT(10X40) |
09100-10184-000 |
from US $1.92 |
||
|
4
|
4
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
4
|
4
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
5
|
5
46241-80F00-000
Bolt, upper arm
|
46241-80F00-000 |
— | ||
| replacement | |||||
|
5
|
5
46241-80F0V-000 BOLT,RR SPNSN UPPER ARM |
46241-80F0V-000 |
US $44.08 |
||
|
6
|
6
45240-80F00-000 PLATE,FR UPPER ARM |
45240-80F00-000 |
US $27.60 |
||
|
7
|
7
46242-80F00-000
WASHER,SPNSN UPR
|
46242-80F00-000 |
— | ||
|
8
|
8
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
9
|
9
45205-80F00-000 ARM ASSY,FR SPNSN LWR,R |
45205-80F00-000 |
US $464.64 |
||
|
10
|
10
45206-80F00-000 ARM ASSY,FR SPNSN LWR,L |
45206-80F00-000 |
US $464.64 |
||
|
11
|
11
45270-80F00-000 JOINT,FR SPNSN LWR |
45270-80F00-000 |
US $203.20 |
||
|
12
|
12
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
12
|
12
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
13
|
13
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
13
|
13
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
14
|
14
45453-80F00-000 BOLT,RR TRLG ROD,REAR |
45453-80F00-000 |
US $16.80 |
||
|
15
|
15
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
15
|
15
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
16
|
16
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
16
|
16
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
17
|
17
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
17
|
17
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.95 |
||
|
18
|
18
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
18
|
18
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
19
|
19
45331-80F00-000 BOLT,FR LWR ARM BUSH FR |
45331-80F00-000 |
US $6.04 |
||
|
20
|
20
09100-12059-000
ボルト,12X92
|
09100-12059-000 |
— | ||
| replacements | |||||
|
20
|
20
09103-12044-000 BOLT(12X87) |
09103-12044-000 |
from US $2.48 |
||
|
20
|
20
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
21
|
21
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
22
|
22
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
22
|
22
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
23
|
23
45800-80F00-000 FRAME,FR SPNSN |
45800-80F00-000 |
US $1,066.56 |
||
|
24
|
24
01810-12303-000
Bolt
|
01810-12303-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1230B-000 Bolt |
01550-1230B-000 |
from US $6.24 |
||
|
25
|
25
42310-80F00-000
BAR,FR STABILIZER
|
42310-80F00-000 |
— | ||
|
26
|
26
42431-80F00-000 MOUNT,FR STAB |
42431-80F00-000 |
US $7.18 |
||
|
27
|
27
42441-80F00-000
Bracket,fr stab bar mount
|
42441-80F00-000 |
— | ||
| replacement | |||||
|
27
|
27
42441-80F0V-000
BRACKET,FR STAB BAR BOUNT
|
42441-80F0V-000 |
— | ||
|
28
|
28
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
28
|
28
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
28
|
28
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
29
|
29
45630-80F00-000 JOINT,FR STAB BAR LINK,R |
45630-80F00-000 |
US $163.20 |
||
|
30
|
30
45640-80F00-000 JOINT,FR STAB BAR LINK,L |
45640-80F00-000 |
US $163.20 |
||
|
31
|
31
09159-10056-000 NUT |
09159-10056-000 |
US $1.12 |
||
