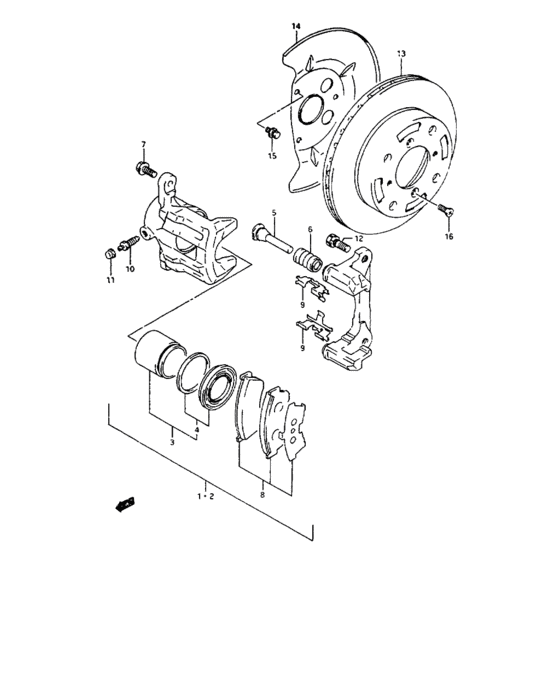

Front wheel brake (FRONT WHEEL BRAKE) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-80F00-000
Caliper assy, brake rh
|
55101-80F00-000 |
— | ||
| replacements | |||||
|
1
|
1
55102-60B9V-999 CALIPER,FR BRAKE |
55102-60B9V-999 |
US $323.84 |
||
|
1
|
1
55200-62840-000
PAD SET,DISC BRAKE
|
55200-62840-000 |
— | ||
|
2
|
2
55102-80F00-000
Caliper assy, brake lh
|
55102-80F00-000 |
— | ||
| replacements | |||||
|
2
|
2
55101-60B9V-999 CALIPER,FR BRAKE |
55101-60B9V-999 |
US $323.84 |
||
|
2
|
2
55200-62840-000
PAD SET,DISC BRAKE
|
55200-62840-000 |
— | ||
|
3
|
3
55840-70B00-000
PISTON / SEAL SET
|
55840-70B00-000 |
— | ||
| replacement | |||||
|
3
|
3
55840-70B01-000 PISTON / SEAL SET |
55840-70B01-000 |
US $43.42 |
||
|
4
|
4
55830-70B00-000
SEAL SET,PISTON
|
55830-70B00-000 |
— | ||
| replacement | |||||
|
4
|
4
55830-70B01-000 SEAL SET,PISTON |
55830-70B01-000 |
US $8.80 |
||
|
5
|
5
55191-78450-000 PIN |
55191-78450-000 |
US $12.42 |
||
|
6
|
6
55201-78450-000 BOOT,PIN |
55201-78450-000 |
US $2.31 |
||
|
7
|
7
55206-78451-000
Bolt, pin
|
55206-78451-000 |
— | ||
| replacement | |||||
|
7
|
7
55206-78452-000 BOLT,PIN |
55206-78452-000 |
US $4.77 |
||
|
8
|
8
55200-62840-000
PAD SET,DISC BRAKE
|
55200-62840-000 |
— | ||
|
9
|
9
55234-86030-000 SPRING,PAD |
55234-86030-000 |
US $9.28 |
||
|
10
|
10
55151-78450-000
プラグ,ブリーダ
|
55151-78450-000 |
— | ||
| replacement | |||||
|
10
|
10
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
11
|
11
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
12
|
12
09117-12006-000 BOLT(12X27) |
09117-12006-000 |
US $1.92 |
||
|
13
|
13
55311-80F00-000
ディスク,フロントブレーキ
|
55311-80F00-000 |
— | ||
| replacement | |||||
|
13
|
13
55311-80F03-000 DISC,FR BRAKE |
55311-80F03-000 |
US $123.65 |
||
|
14
|
14
55321-80F00-000
カバー,フロントブレーキディスクダスト
|
55321-80F00-000 |
— | ||
| replacement | |||||
|
14
|
14
55321-80F0V-000 COVER,DISC DUST |
55321-80F0V-000 |
US $187.68 |
||
|
15
|
15
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
15
|
15
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
16
|
16
02122-06163-000
Screw
|
02122-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
16
|
16
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
