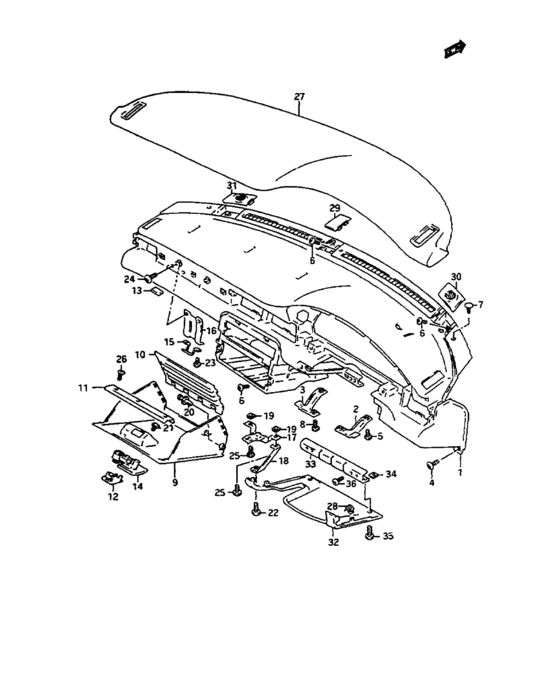

Instrument panel (INSTRUMENT PANEL) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-80F00-5ES PANEL,INSTR MAIN |
73111-80F00-5ES |
US $318.32 |
||
|
2
|
2
73121-80F00-000
BRACKET,INSTPN,R
|
73121-80F00-000 |
— | ||
|
3
|
3
73122-80F00-000
BRACKET,INSTPN,L
|
73122-80F00-000 |
— | ||
|
4
|
4
09139-06037-000
スクリュ,6X16
|
09139-06037-000 |
— | ||
| replacement | |||||
|
4
|
4
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.76 |
||
|
5
|
5
09139-06037-000
スクリュ,6X16
|
09139-06037-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.76 |
||
|
6
|
6
09139-06037-000
スクリュ,6X16
|
09139-06037-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.76 |
||
|
7
|
7
09409-04308-5ES
Clip(black)
|
09409-04308-5ES |
— | ||
|
8
|
8
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
9
|
9
73411-80F00-5ES
BOX,I/P
|
73411-80F00-5ES |
— | ||
|
10
|
10
73412-80F00-5ES
PANEL,I/P BOX
|
73412-80F00-5ES |
— | ||
|
11
|
11
73413-80F00-000
リンフォースメント,インストメントパネルボックス
|
73413-80F00-000 |
— | ||
|
12
|
12
73414-60A00-5ES COVER,INSTPNL SIDE BOX |
73414-60A00-5ES |
US $1.60 |
||
|
13
|
13
73433-80F00-000
CUSHION,INSTPN BOX
|
73433-80F00-000 |
— | ||
|
14
|
14
73420-60840-5ES
Lock assy, instrument box
TYPE 1 |
73420-60840-5ES |
— | ||
| replacement | |||||
|
14
|
14
73420-60820-5ES LOCK ASSY,SIDE BOXTYPE 1 |
73420-60820-5ES |
US $77.28 |
||
|
14
|
14
73420-60820-5ES LOCK ASSY,SIDE BOXTYPE 2 |
73420-60820-5ES |
US $77.28 |
||
|
15
|
15
73431-80F00-000
ストライカ,インストメントパネルボックス
|
73431-80F00-000 |
— | ||
| replacement | |||||
|
15
|
15
73431-80F0V-000 STRIKER,I/P BOX |
73431-80F0V-000 |
US $6.44 |
||
|
16
|
16
73432-80F00-000 BRACKET,BOX STRIKER |
73432-80F00-000 |
US $8.98 |
||
|
17
|
17
73441-80F00-000
ブラケット,ケーブル
|
73441-80F00-000 |
— | ||
|
18
|
18
73442-80F00-000
REINFORCEMENT,CABLE
|
73442-80F00-000 |
— | ||
|
19
|
19
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
20
|
20
09409-07315-000 CLIP |
09409-07315-000 |
US $1.44 |
||
|
21
|
21
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
21
|
21
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
22
|
22
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
23
|
23
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
23
|
23
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
24
|
24
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
24
|
24
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
25
|
25
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
26
|
26
03541-04103-000
Screw
|
03541-04103-000 |
— | ||
| replacement | |||||
|
26
|
26
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
27
|
27
73510-80F00-5FE
PAD,INSTRUMENT PANEL
|
73510-80F00-5FE |
— | ||
|
28
|
28
73312-50F00-000 SPRING,METER CLUSTER |
73312-50F00-000 |
US $3.24 |
||
|
29
|
29
73821-80F00-5ES
Cover,instpn ctr(black)
|
73821-80F00-5ES |
— | ||
|
30
|
30
73822-80F00-5ES
Cover,instpn side,r(black)
|
73822-80F00-5ES |
— | ||
|
31
|
31
73823-80F00-5ES
Cover,instpn side,l(black)
|
73823-80F00-5ES |
— | ||
|
32
|
32
73831-80F00-5ES
Cover,strg column hole
|
73831-80F00-5ES |
— | ||
|
33
|
33
73841-80F00-000
JOINT,COLUMN HOLE LWR
|
73841-80F00-000 |
— | ||
|
34
|
34
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
35
|
35
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
35
|
35
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
36
|
36
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
36
|
36
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
