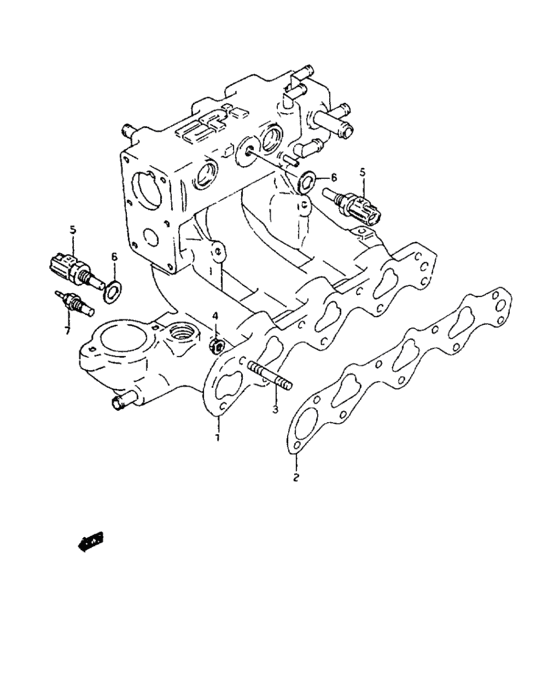

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-80F00-000
マニホールド,インテーク
|
13110-80F00-000 |
— | ||
|
2
|
2
13119-64D10-000 GASKET,INTK MANF |
13119-64D10-000 |
US $24 |
||
|
3
|
3
01411-06203-000
New Genuine Part
|
01411-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0620A-000 BOLT,STUD |
01411-0620A-000 |
US $0.91 |
||
|
4
|
4
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
13650-61B00-000 SENSOR,TEMP |
13650-61B00-000 |
from US $46.40 |
||
|
6
|
6
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
7
|
7
34850-70B10-000 GAUGE ASSY,WATER TEMP |
34850-70B10-000 |
US $48 |
||
