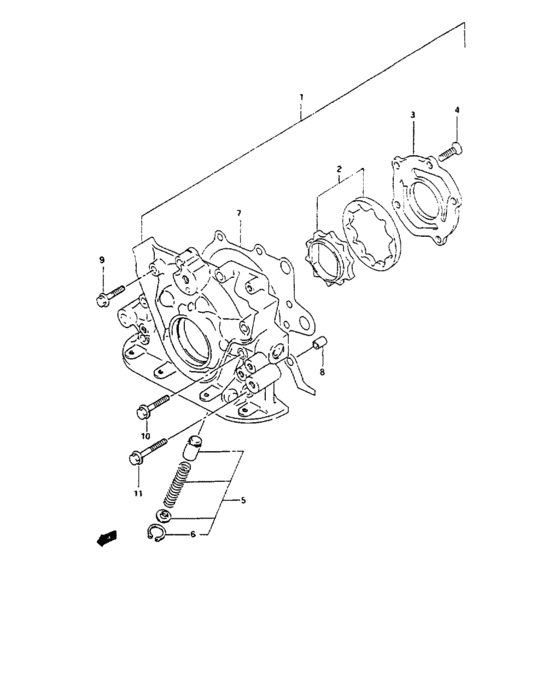

Oil pump (OIL PUMP) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-70834-000
PUMP SET, OIL
|
16100-70834-000 |
— | ||
| replacements | |||||
|
1
|
1
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
1
|
1
16100-70838-000 PUMP SET,OIL |
16100-70838-000 |
US $464 |
||
|
2
|
2
16130-70B00-000
Rotor set,oil pump
|
16130-70B00-000 |
— | ||
|
3
|
3
16161-70B00-000
プレート,オイルポンプロータ
|
16161-70B00-000 |
— | ||
|
4
|
4
02122-06163-000
Screw
|
02122-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
4
|
4
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
|
5
|
5
16150-60A00-000
Valve set, relief
|
16150-60A00-000 |
— | ||
| replacement | |||||
|
5
|
5
16150-60A20-000 VALVE SET,OIL PUMP RELIEF |
16150-60A20-000 |
US $9.12 |
||
|
6
|
6
08331-41156-000
Circlip
|
08331-41156-000 |
— | ||
| replacement | |||||
|
6
|
6
08331-4115A-000 CIRCLIP |
08331-4115A-000 |
US $1.60 |
||
|
7
|
7
16119-73012-000 GASKET,OIL PUMP CASE |
16119-73012-000 |
US $22.40 |
||
| replacement | |||||
|
7
|
7
16119-76G00-000 GASKET,OIL PUMP CASE |
16119-76G00-000 |
US $8.64 |
||
|
8
|
8
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.96 |
||
|
9
|
9
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
10
|
10
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
10
|
10
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
11
|
11
01550-06403-000
Bolt (green)
|
01550-06403-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0640B-000 Bolt |
01550-0640B-000 |
from US $0.96 |
||
|
11
|
11
01550-0640A-000 BoltBolt (l:40) |
01550-0640A-000 |
from US $3.83 |
||
