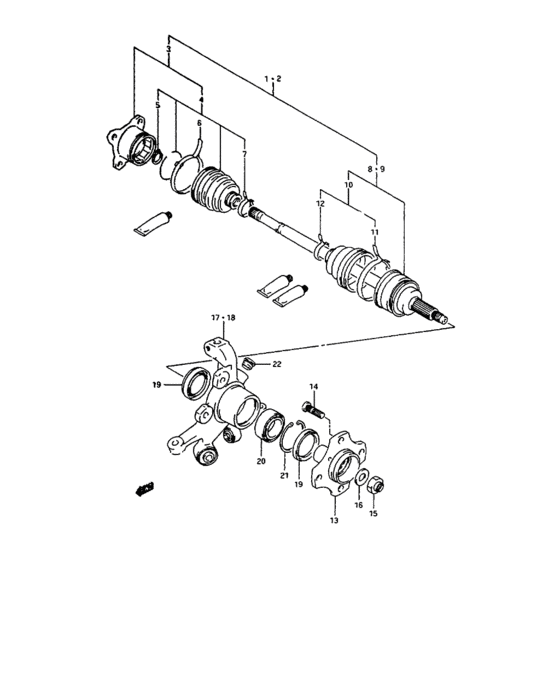

Rear drive shaft (REAR DRIVE SHAFT) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-80F10-000
Shaft assy,rear drive
<-44101-80F00 |
44101-80F10-000 |
— | ||
|
2
|
2
44102-80F00-000
Shaft assy, rear drive lh
|
44102-80F00-000 |
— | ||
| replacement | |||||
|
2
|
2
44102-80F10-000
SHAFT ASSY,REAR DRIVE,L
|
44102-80F10-000 |
— | ||
|
3
|
3
44114-80F00-000
ジョイントアッシ,ディファレンシャルサイド
|
44114-80F00-000 |
— | ||
| replacement | |||||
|
3
|
3
44114-80F01-000
Joint assy,diff side
|
44114-80F01-000 |
— | ||
|
4
|
4
44119-80F00-000
ブーツセット,ディファレンシャルサイド
|
44119-80F00-000 |
— | ||
| replacements | |||||
|
4
|
4
44119-80F01-000
BOOT SET,DIFF SIDE
|
44119-80F01-000 |
— | ||
|
4
|
4
44119-80F02-000 BOOT SET,DIFF SIDE |
44119-80F02-000 |
US $62.19 |
||
|
5
|
5
44112-78010-000 CIRCLIP |
44112-78010-000 |
from US $5.26 |
||
|
6
|
6
44121-86010-000
BAND,BOOT
|
44121-86010-000 |
— | ||
|
7
|
7
44124-86011-000 BAND,BOOT |
44124-86011-000 |
US $6.81 |
||
|
8
|
8
44116-80F00-000
Joint assy, wheel side rh
|
44116-80F00-000 |
— | ||
| replacement | |||||
|
8
|
8
44101-80F10-000
Shaft assy,rear drive
|
44101-80F10-000 |
— | ||
|
9
|
9
44117-80F00-000
Joint assy, wheel side lh
|
44117-80F00-000 |
— | ||
| replacement | |||||
|
9
|
9
44102-80F10-000
SHAFT ASSY,REAR DRIVE,L
|
44102-80F10-000 |
— | ||
|
10
|
10
44118-80F00-000
Boot set, wheel side
|
44118-80F00-000 |
— | ||
| replacements | |||||
|
10
|
10
44118-69D01-000
BOOT SET
|
44118-69D01-000 |
— | ||
|
10
|
10
44118-69D02-000 BOOT SET |
44118-69D02-000 |
US $145.92 |
||
|
11
|
11
44122-86010-000 BAND,BOOTClamp, differential side outer boot |
44122-86010-000 |
from US $9.02 |
||
|
12
|
12
44124-86011-000 BAND,BOOT |
44124-86011-000 |
US $6.81 |
||
|
13
|
13
43421-63B41-000
ハブ,リヤホイール
|
43421-63B41-000 |
— | ||
| replacement | |||||
|
13
|
13
43420-63810-000 HUB SET,RR WHL |
43420-63810-000 |
US $111.50 |
||
|
14
|
14
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
US $2.72 |
||
|
15
|
15
09159-18008-000 NUT |
09159-18008-000 |
from US $4.10 |
||
|
16
|
16
09160-18017-000 WASHER(18X35X4) |
09160-18017-000 |
from US $0.91 |
||
|
17
|
17
46100-80810-000
KNUCKLE SET,RR SPNSN,R
|
46100-80810-000 |
— | ||
|
18
|
18
46100-80820-000
KNUCKLE SET,RR SPNSN,L
|
46100-80820-000 |
— | ||
|
19
|
19
43431-60B20-000 SEAL,FR WHL BRG INNER OIL |
43431-60B20-000 |
from US $14.67 |
||
|
20
|
20
09267-35003-000 BEARING(35X61X31) |
09267-35003-000 |
from US $95.76 |
||
|
21
|
21
08331-41626-000
Ring 62mm
|
08331-41626-000 |
— | ||
| replacement | |||||
|
21
|
21
08331-4162A-000 CIRCLIP |
08331-4162A-000 |
from US $2.05 |
||
|
22
|
22
09250-19001-000 CAP(OD:20.5) |
09250-19001-000 |
US $27.20 |
||
