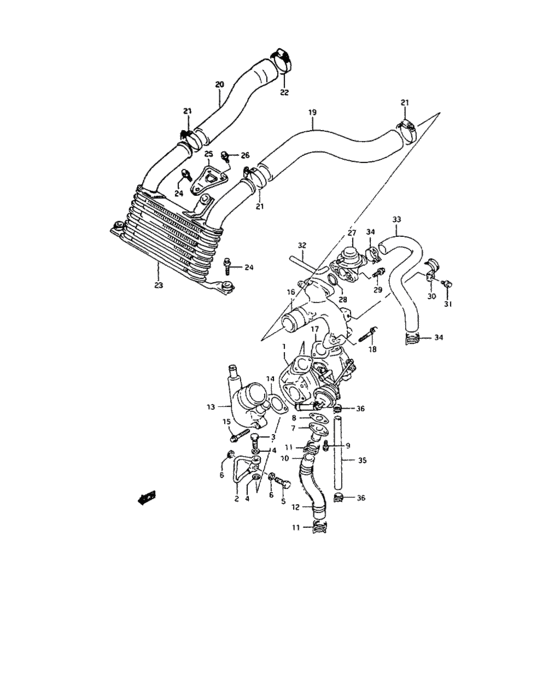

Turbo charger (TURBO CHARGER) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13900-80F00-000
CHARGER ASSY,TURBO
|
13900-80F00-000 |
— | ||
|
2
|
2
13930-73B50-000
Pipe,turbo oil intk
|
13930-73B50-000 |
— | ||
| replacement | |||||
|
2
|
2
13930-73B5V-000
PIPE,TURBO OIL INTAKE
|
13930-73B5V-000 |
— | ||
|
3
|
3
13948-85550-000
ボルト,ユニオン
|
13948-85550-000 |
— | ||
| replacement | |||||
|
3
|
3
13948-85560-000 BOLT,UNION 8X20 |
13948-85560-000 |
US $4.80 |
||
|
4
|
4
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
5
|
5
09360-10031-000
Union bolt
|
09360-10031-000 |
— | ||
| replacement | |||||
|
5
|
5
09360-10031-XC0 UNION |
09360-10031-XC0 |
US $12.64 |
||
|
6
|
6
09168-10025-000
ガスケット,10X14X1
|
09168-10025-000 |
— | ||
| replacement | |||||
|
6
|
6
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
7
|
7
13940-80700-000
ジョイント,オイルドレーン
|
13940-80700-000 |
— | ||
| replacement | |||||
|
7
|
7
13940-80710-000
JOINT,OIL DRAIN
|
13940-80710-000 |
— | ||
|
8
|
8
13945-56F00-000
ガスケット,オイルドレーン
|
13945-56F00-000 |
— | ||
| replacement | |||||
|
8
|
8
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain |
13945-70G50-000 |
from US $4.68 |
||
|
9
|
9
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
13946-80F00-000 HOSE,TURBO OIL DRAIN |
13946-80F00-000 |
from US $97.20 |
||
|
11
|
11
09401-20402-000
Clip, air hose no.3
|
09401-20402-000 |
— | ||
| replacement | |||||
|
11
|
11
09401-20406-000 CLIP |
09401-20406-000 |
US $1.98 |
||
|
12
|
12
13971-80F00-000
Protector, oil drain hose
|
13971-80F00-000 |
— | ||
| replacement | |||||
|
12
|
12
13971-8105V-000 INSULATOR,OIL DRAIN |
13971-8105V-000 |
US $12.16 |
||
|
13
|
13
13950-80F00-000
パイプ,ターボインテークエア
|
13950-80F00-000 |
— | ||
|
14
|
14
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe |
13955-56F00-000 |
from US $2.40 |
||
|
15
|
15
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
15
|
15
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
16
|
16
13960-80F00-000
パイプ,ターボアウトレットエア
|
13960-80F00-000 |
— | ||
|
17
|
17
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe |
13965-56F00-000 |
from US $2.09 |
||
|
18
|
18
01550-06453-000
Bolt
|
01550-06453-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
19
|
19
13966-80F00-000 HOSE,INTER COOLER INLET |
13966-80F00-000 |
US $137.60 |
||
|
20
|
20
13967-80F00-000 HOSE,INTER COOLER OUTLET |
13967-80F00-000 |
US $92 |
||
|
21
|
21
09402-43501-000
Clamp, tank
|
09402-43501-000 |
— | ||
| replacement | |||||
|
21
|
21
09402-50511-000 CLAMP |
09402-50511-000 |
from US $7.52 |
||
|
22
|
22
09402-57501-000 Clamp |
09402-57501-000 |
US $10.19 |
||
| replacement | |||||
|
22
|
22
09402-57511-000 CLAMP |
09402-57511-000 |
from US $6.24 |
||
|
23
|
23
13620-80F00-000
COOLER,INTER
|
13620-80F00-000 |
— | ||
|
24
|
24
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
25
|
25
13630-80F00-000 BRACKET,INTER COLLER |
13630-80F00-000 |
US $9.05 |
||
|
26
|
26
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
26
|
26
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
27
|
27
18119-54E00-000
VALVE,AIR BYPASS
|
18119-54E00-000 |
— | ||
|
28
|
28
09280-20003-000 O RING(D:1.5,ID:19.5)O ring, oil pump |
09280-20003-000 |
from US $1.76 |
||
|
29
|
29
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
30
|
30
13925-54E00-000
Clamp, air bypass valve hose
|
13925-54E00-000 |
— | ||
| replacements | |||||
|
30
|
30
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
30
|
30
09404-08405-000
Clamp, drain tube
|
09404-08405-000 |
— | ||
|
31
|
31
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
31
|
31
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
32
|
32
18564-80F00-000
Hose, air bypass valve vacuum
|
18564-80F00-000 |
— | ||
| replacement | |||||
|
32
|
32
18564-73G01-000
HOSE,ABV VACUUM
|
18564-73G01-000 |
— | ||
|
33
|
33
13924-80F00-000 HOSE,AIR BYP OUTLET |
13924-80F00-000 |
US $42.69 |
||
|
34
|
34
13926-72B70-000
クリップ,エアバイパス
|
13926-72B70-000 |
— | ||
| replacement | |||||
|
34
|
34
09401-23403-000 CLIPClip, air hose no.5 |
09401-23403-000 |
US $28 |
||
|
35
|
35
09352-90141-300
ホース,9.5X14X300
L:300->180 |
09352-90141-300 |
— | ||
| replacement | |||||
|
35
|
35
09352-90141-600 HOSE(9X14X600)L:300->180 |
09352-90141-600 |
US $26.40 |
||
|
36
|
36
09401-13413-000 ClipClip, air hose no.1 |
09401-13413-000 |
US $2.15 |
||
| replacement | |||||
|
36
|
36
09401-13417-000 CLIP |
09401-13417-000 |
from US $1.60 |
||
