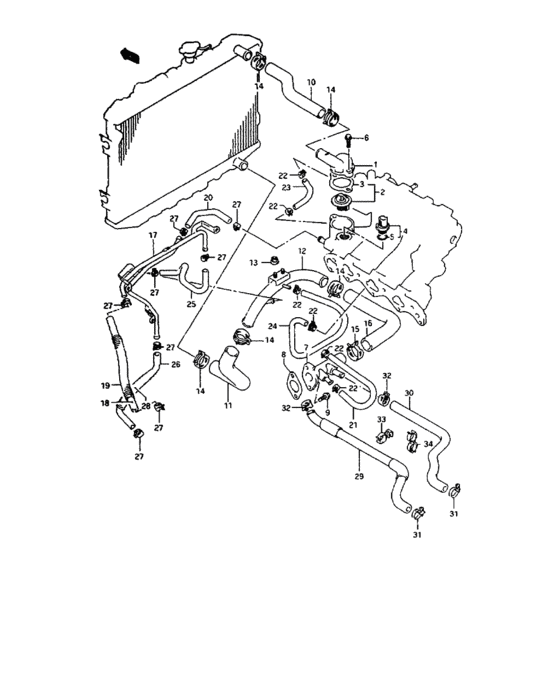

Water hose (WATER HOSE) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17561-60C00-000
CAP,THERMOSTAT
|
17561-60C00-000 |
— | ||
|
2
|
2
17600-85811-000 THERMOSTAT SET,WATER 82 DEG |
17600-85811-000 |
from US $18.88 |
||
|
3
|
3
17569-82001-H17 GASKET,WTR THERMO CAP |
17569-82001-H17 |
US $2.24 |
||
|
4
|
4
17680-50F00-000
SWITCH,FAN THERMO
|
17680-50F00-000 |
— | ||
| replacement | |||||
|
4
|
4
17680-50F01-000 Switch Comp,rdtr Fan |
17680-50F01-000 |
from US $32.80 |
||
|
5
|
5
17689-50F00-000 O-RING |
17689-50F00-000 |
from US $1.60 |
||
|
6
|
6
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
6
|
6
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
7
|
7
17550-80700-000
パイプ,ウォータ,インレット
|
17550-80700-000 |
— | ||
| replacement | |||||
|
7
|
7
17550-80701-000 PIPE,WATER INLET |
17550-80701-000 |
US $163.20 |
||
|
8
|
8
17559-73000-H17
ガスケット,ウォータ,インレット
|
17559-73000-H17 |
— | ||
| replacement | |||||
|
8
|
8
17559-73010-000 GASKET,WATER INLET PIPE |
17559-73010-000 |
from US $1.52 |
||
|
9
|
9
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
10
|
10
17841-80F00-000 HOSE,RADIATOR INLET |
17841-80F00-000 |
US $50.40 |
||
|
11
|
11
17852-80F00-000 HOSE,RADIATOR OUTLET RADIATOR |
17852-80F00-000 |
US $50.40 |
||
|
12
|
12
17860-80F01-000
PIPE,RDTR OUTLET
|
17860-80F01-000 |
— | ||
|
13
|
13
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
09401-31404-000
クリップ
|
09401-31404-000 |
— | ||
| replacement | |||||
|
14
|
14
09401-31406-000 CLIP |
09401-31406-000 |
US $3.04 |
||
|
15
|
15
09401-30403-000
クリップ
|
09401-30403-000 |
— | ||
| replacement | |||||
|
15
|
15
09401-30405-000 CLIP |
09401-30405-000 |
from US $3.04 |
||
|
16
|
16
17851-80F00-000 HOSE,RADIATOR OUTLET IN PIPE |
17851-80F00-000 |
US $50.40 |
||
|
17
|
17
17960-80F00-000
PIPE,TURBO&OIL COOLER
|
17960-80F00-000 |
— | ||
|
18
|
18
09352-90141-300
ホース,9.5X14X300
L:300->220 |
09352-90141-300 |
— | ||
|
19
|
19
17858-86501-000 PROTECTOR,HOSEL:415->130 |
17858-86501-000 |
US $9.60 |
||
|
20
|
20
17857-80F00-000
Hose, intake manifold to pipe
|
17857-80F00-000 |
— | ||
| replacements | |||||
|
20
|
20
09352-90141-600 HOSE(9X14X600) |
09352-90141-600 |
US $26.40 |
||
|
20
|
20
09352-90141-300
ホース,9.5X14X300
|
09352-90141-300 |
— | ||
|
21
|
21
17859-80F00-000
Hose, water bypass
|
17859-80F00-000 |
— | ||
| replacements | |||||
|
21
|
21
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) |
09352-70121-600 |
from US $4.84 |
||
|
21
|
21
09352-70121-300
Hose 7x12.1x600
|
09352-70121-300 |
— | ||
|
22
|
22
09401-11408-000
Clip
|
09401-11408-000 |
— | ||
| replacements | |||||
|
22
|
22
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
22
|
22
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
|
23
|
23
13193-80F01-000
Hose, water bypass
|
13193-80F01-000 |
— | ||
| replacements | |||||
|
23
|
23
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) |
09352-70121-600 |
from US $4.84 |
||
|
23
|
23
09352-70121-300
Hose 7x12.1x600
|
09352-70121-300 |
— | ||
|
24
|
24
09352-70121-300
Hose 7x12.1x600
L:300->270 |
09352-70121-300 |
— | ||
|
25
|
25
17858-80F00-000 HOSE,PIPE TO RDTR PIPE |
17858-80F00-000 |
US $39.20 |
||
|
26
|
26
17959-80F00-000 HOSE,PIPE TO OIL COOLER |
17959-80F00-000 |
US $39.20 |
||
|
27
|
27
09401-13413-000 ClipClip, air hose no.1 |
09401-13413-000 |
US $2.15 |
||
| replacement | |||||
|
27
|
27
09401-13417-000 CLIP |
09401-13417-000 |
from US $1.60 |
||
|
28
|
28
17858-86501-000 PROTECTOR,HOSEL:415->100 |
17858-86501-000 |
US $9.60 |
||
|
29
|
29
17871-80F00-000
ホース,ヒータ,インレット
|
17871-80F00-000 |
— | ||
| replacement | |||||
|
29
|
29
17871-80F01-000 HOSE,HEATER INLET |
17871-80F01-000 |
US $60 |
||
|
30
|
30
17872-80F00-000
ホース,ヒータ,アウトレット
|
17872-80F00-000 |
— | ||
| replacement | |||||
|
30
|
30
17872-80F01-000 HOSE,HEATER OUTLET |
17872-80F01-000 |
US $52 |
||
|
31
|
31
09400-21311-000
クランプ
|
09400-21311-000 |
— | ||
| replacement | |||||
|
31
|
31
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
US $1.92 |
||
|
32
|
32
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
US $1.92 |
||
|
33
|
33
09408-00157-000 CLAMP |
09408-00157-000 |
US $20.20 |
||
|
34
|
34
09408-00162-000
CLAMP
|
09408-00162-000 |
— | ||
