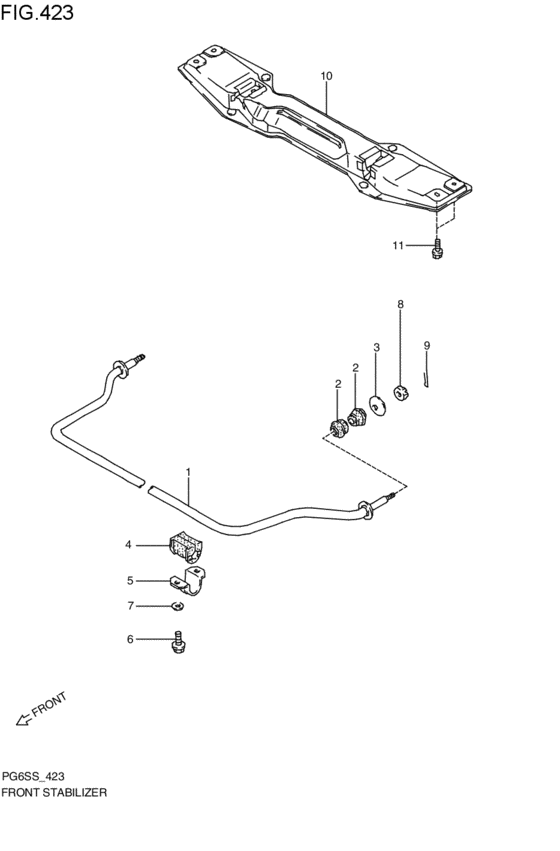

front stabilizer (1992-12-01~) Diagram Suzuki CARA
- Year
- 1992 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-69D01-000
バー,フロントスタビライザ
NHK; 1992-12-01~ |
42310-69D01-000 |
— | ||
|
2
|
2
42451-69D00-000
ブッシング,スタビライザバー
1992-12-01~ |
42451-69D00-000 |
— | ||
| replacement | |||||
|
2
|
2
42451-69D01-000 BUSHING,STAB BAR MOUNT1992-12-01~ |
42451-69D01-000 |
US $17.60 |
||
|
3
|
3
09164-12017-000 WASHER1992-12-01~ |
09164-12017-000 |
US $1.28 |
||
|
4
|
4
42431-69D10-000
マウント,スタビライザバー
1992-12-01~ |
42431-69D10-000 |
— | ||
| replacement | |||||
|
4
|
4
42431-69D12-000 MOUNT,STAB BAR1992-12-01~ |
42431-69D12-000 |
US $16.72 |
||
|
5
|
5
42441-70B00-000 BRACKET,STABILIZER BAR MOUNT1992-12-01~ |
42441-70B00-000 |
US $9.44 |
||
|
6
|
6
M1517-10251-000
ボルト,10X25
1992-12-01~ |
M1517-10251-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-1025B-000 BoltBolt, rr swgarm bracket, l 1992-12-01~ |
01550-1025B-000 |
from US $5.59 |
||
|
6
|
6
01550-1025A-000 BOLTBolt, drive gear 1992-12-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
6
|
6
01550-10253-000
Bolt
1992-12-01~ |
01550-10253-000 |
— | ||
|
7
|
7
M8321-21100-000
ワッシャ,ロック
1992-12-01~ |
M8321-21100-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1992-12-01~ |
08321-0110B-000 |
from US $0.80 |
||
|
7
|
7
08321-0110A-000 WASHER,LOCK1992-12-01~ |
08321-0110A-000 |
from US $0.80 |
||
|
7
|
7
08321-01103-000
Washer
1992-12-01~ |
08321-01103-000 |
— | ||
|
8
|
8
M8314-31120-000
ナット
1992-12-01~ |
M8314-31120-000 |
— | ||
|
9
|
9
M4111-30250-000
コッタピン
1992-12-01~ |
M4111-30250-000 |
— | ||
|
10
|
10
71100-69DA0-000
メンバ,クロス
1992-12-01~ |
71100-69DA0-000 |
— | ||
|
11
|
11
M1517-08250-000
ボルト,8X25
1992-12-01~ |
M1517-08250-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BOLT1992-12-01~ |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01550-0825A-000 BOLT1992-12-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
01550-08253-000
Bolt, rear
1992-12-01~ |
01550-08253-000 |
— | ||
