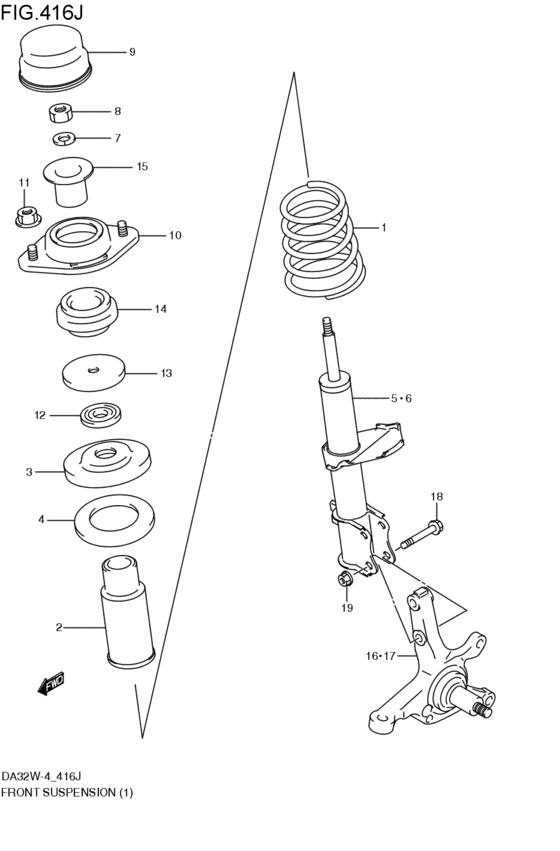

front suspension (2WD; 2001-05-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2002
- Sales region
- Japan
- drive
- 2WD
- grade
- PD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-65H30-000 SPRING,FRONT COIL2WD; 2001-05-01~ |
41111-65H30-000 |
US $73.60 |
||
|
2
|
2
42111-78A01-000 STOPPER,FR BUMP2WD; 2001-05-01~ |
42111-78A01-000 |
US $25.60 |
||
|
3
|
3
41231-65H00-000 SEAT,FRONT COIL SPRING2WD; 2001-05-01~ |
41231-65H00-000 |
US $21.28 |
||
|
4
|
4
41251-77A00-000 SEAT,FR SPRING RUBBER UPPER2WD; 2001-05-01~ |
41251-77A00-000 |
US $3.65 |
||
|
5
|
5
41601-64H11-000 STRUT ASSY,FR SUSPENSION,R2WD; 2001-05-01~ |
41601-64H11-000 |
US $588.80 |
||
|
6
|
6
41602-64H11-000 STRUT ASSY,FR SUSPENSION,L2WD; 2001-05-01~ |
41602-64H11-000 |
US $588.80 |
||
|
7
|
7
09162-12006-000 WASHER,LOCK2WD; 2001-05-01~ |
09162-12006-000 |
from US $1.28 |
||
|
8
|
8
09140-12045-000 NUT2WD; 2001-05-01~ |
09140-12045-000 |
US $1.76 |
||
|
9
|
9
41724-77A00-000 CAP,STRUT SUPPORT2WD; 2001-05-01~ |
41724-77A00-000 |
US $5.60 |
||
|
10
|
10
41710-77A00-000 SUPPORT,FRONT STRUT2WD; 2001-05-01~ |
41710-77A00-000 |
US $40.80 |
||
|
11
|
11
09159-10105-000
Nut, rr lh case
2WD; 2001-05-01~ |
09159-10105-000 |
— | ||
| replacement | |||||
|
11
|
11
09159-10116-000 NUT2WD; 2001-05-01~ |
09159-10116-000 |
from US $1.28 |
||
|
12
|
12
41741-50E00-000 BEARING,FR STRUTBearing, front strut 2WD; 2001-05-01~ |
41741-50E00-000 |
US $29.60 |
||
|
13
|
13
41741-77A01-000 SEAT,FR STRUT BEARING2WD; 2001-05-01~ |
41741-77A01-000 |
US $9.44 |
||
|
14
|
14
41721-77A00-000 RUBBER,FRONT STRUT SUPPORT2WD; 2001-05-01~ |
41721-77A00-000 |
US $22.40 |
||
|
15
|
15
41723-77A00-000 STOPPER,FRONT STRUT REBOUND2WD; 2001-05-01~ |
41723-77A00-000 |
US $12.16 |
||
|
16
|
16
45110-77820-000
Knuckle,steering,r
2WD; 2001-05-01~ |
45110-77820-000 |
— | ||
| replacement | |||||
|
16
|
16
45110-77824-000 KNUCKLE SET,STRG,R2WD; 2001-05-01~ |
45110-77824-000 |
US $242.88 |
||
|
17
|
17
45150-77820-000
Knuckle,steering,l
2WD; 2001-05-01~ |
45150-77820-000 |
— | ||
| replacement | |||||
|
17
|
17
45150-77824-000 KNUCKLE SET,STRG,L2WD; 2001-05-01~ |
45150-77824-000 |
US $242.88 |
||
|
18
|
18
09103-12051-000 BOLT(12X50)2WD; 2001-05-01~ |
09103-12051-000 |
US $2.40 |
||
|
19
|
19
08316-10123-000
Nut
2WD; 2001-05-01~ |
08316-10123-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1012A-000 NUT2WD; 2001-05-01~ |
08316-1012A-000 |
from US $0.96 |
||
