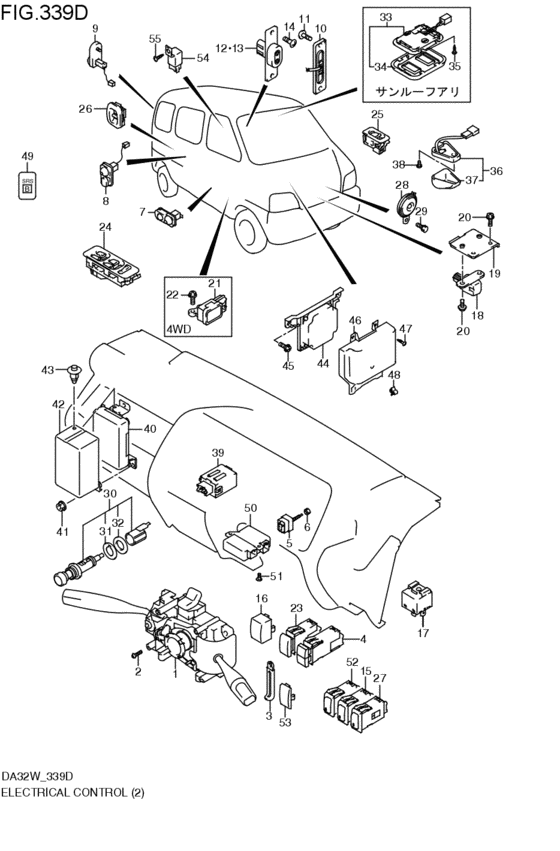

electrical control (ボデイ エレクトリカル / インパネ エレクトリカル; T2; 1999-11-01~2000-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1999 - 2000
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- AT
- grade
- PN
- type
- T2
- limited
- NORMAL
- Roof
- NR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-78A11-000
スイッチアッシ,コンビネーション
T2; 1999-11-01~2000-04-01 |
37400-78A11-000 |
— | ||
| replacement | |||||
|
1
|
1
37400-76G32-000 SWITCH ASSY,COMBT2; 1999-11-01~2000-04-01 |
37400-76G32-000 |
US $432.96 |
||
|
2
|
2
02112-05123-000
Screw 5x12
T2; 1999-11-01~2000-04-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREWT2; 1999-11-01~2000-04-01 |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
09404-06432-000
CLAMP(L:65)
T2; 1999-11-01~2000-04-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
3
|
3
09404-06039-000 Clamp(L:65)T2; 1999-11-01~2000-04-01 |
09404-06039-000 |
from US $1.82 |
||
|
4
|
4
37370-75F10-000 SWITCH ASSY,RR WIPER&WASHERT2; 1999-11-01~2000-04-01 |
37370-75F10-000 |
US $118.86 |
||
|
5
|
5
37740-60A20-000
スイッチアッシ,ストップランプ/ロックアップ
T2; 1999-11-01~2000-04-01 |
37740-60A20-000 |
— | ||
| replacement | |||||
|
5
|
5
37740-60G10-000 SWITCH ASSY,STOP LAMPT2; 1999-11-01~2000-04-01 |
37740-60G10-000 |
US $61.60 |
||
|
6
|
6
09140-10043-000 NUTNut, tie rod rh thread T2; 1999-11-01~2000-04-01 |
09140-10043-000 |
from US $0.91 |
||
|
7
|
7
37670-76G00-000 SWITCH ASSY,DOORフロント ドア; T2; 1999-11-01~2000-04-01 |
37670-76G00-000 |
US $29.60 |
||
|
8
|
8
37670-79A00-000
スイッチアッシ,ドア
リヤ ドア; T2; 1999-11-01~2000-04-01 |
37670-79A00-000 |
— | ||
| replacement | |||||
|
8
|
8
37670-79A10-000 SWITCH ASSY,DOORリヤ ドア; T2; 1999-11-01~2000-04-01 |
37670-79A10-000 |
from US $13.79 |
||
|
9
|
9
37670-79A00-000
スイッチアッシ,ドア
バツク ドア; T2; 1999-11-01~2000-04-01 |
37670-79A00-000 |
— | ||
| replacement | |||||
|
9
|
9
37670-79A10-000 SWITCH ASSY,DOORバツク ドア; T2; 1999-11-01~2000-04-01 |
37670-79A10-000 |
from US $13.79 |
||
|
10
|
10
37677-79A10-000 SWITCH ASSY,JUNCTION BODYT2; 1999-11-01~2000-04-01 |
37677-79A10-000 |
US $55.57 |
||
|
11
|
11
02142-06103-000
Screw
T2; 1999-11-01~2000-04-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
02142-0610B-000 SCREWStopper, cl rlse cam shaft T2; 1999-11-01~2000-04-01 |
02142-0610B-000 |
from US $0.76 |
||
|
11
|
11
02142-0610A-000 SCREWT2; 1999-11-01~2000-04-01 |
02142-0610A-000 |
from US $0.80 |
||
|
12
|
12
37679-79A10-000 SWITCH ASSY,JUNCTION DOOR,RT2; 1999-11-01~2000-04-01 |
37679-79A10-000 |
US $93.10 |
||
|
13
|
13
37678-79A10-000 SWITCH ASSY,JUNCTION DOOR,LT2; 1999-11-01~2000-04-01 |
37678-79A10-000 |
US $93.10 |
||
|
14
|
14
02142-06103-000
Screw
T2; 1999-11-01~2000-04-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
02142-0610B-000 SCREWStopper, cl rlse cam shaft T2; 1999-11-01~2000-04-01 |
02142-0610B-000 |
from US $0.76 |
||
|
14
|
14
02142-0610A-000 SCREWT2; 1999-11-01~2000-04-01 |
02142-0610A-000 |
from US $0.80 |
||
|
15
|
15
37270-76F00-000
Switch assy, front fog
T2; 1999-11-01~2000-04-01 |
37270-76F00-000 |
— | ||
| replacement | |||||
|
15
|
15
37270-76F10-000 SWITCH ASSY,FR FOG LAMPT2; 1999-11-01~2000-04-01 |
37270-76F10-000 |
US $50.05 |
||
|
16
|
16
37285-75F00-000 CAP,OPTION SW HOLET2; 1999-11-01~2000-04-01 |
37285-75F00-000 |
US $2.28 |
||
|
17
|
17
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way T2; 1999-11-01~2000-04-01 |
38610-76G00-000 |
US $56.80 |
||
|
18
|
18
38930-76A00-000 SENSOR ASSY,FORWARDT2; 1999-11-01~2000-04-01 |
38930-76A00-000 |
US $129.54 |
||
|
19
|
19
38915-76A00-000
ブラケット,フォワードセンサ
T2; 1999-11-01~2000-01-01 |
38915-76A00-000 |
— | ||
| replacement | |||||
|
19
|
19
38915-76A10-000
BRACKET,FWD SENSOR
T2; 1999-11-01~2000-01-01 |
38915-76A10-000 |
— | ||
|
19
|
19
38915-76A10-000
BRACKET,FWD SENSOR
T2; 2000-01-01~2000-04-01 |
38915-76A10-000 |
— | ||
|
20
|
20
02162-06123-000
Bolt (6x12)
T2; 1999-11-01~2000-01-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
02162-0612B-000 SCREWBolt T2; 1999-11-01~2000-01-01 |
02162-0612B-000 |
from US $0.80 |
||
|
20
|
20
02162-0612A-000 SCREWBolt, bracket T2; 1999-11-01~2000-01-01 |
02162-0612A-000 |
from US $0.80 |
||
|
23
|
23
37860-75F10-000 SWITCH ASSY,RR DEFOGGERT2; 1999-11-01~2000-04-01 |
37860-75F10-000 |
US $50.05 |
||
|
24
|
24
37990-75F01-T01
スイッチアッシ,パワーウィンドメイン(グレー)
グレー; T2; 1999-11-01~2000-04-01 |
37990-75F01-T01 |
— | ||
| replacement | |||||
|
24
|
24
37990-75F02-T01 SWITCH ASSY,P/W MAINグレー; T2; 1999-11-01~2000-04-01 |
37990-75F02-T01 |
US $327.52 |
||
|
25
|
25
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) グレー; T2; 1999-11-01~2000-04-01 |
37995-75F00-T01 |
from US $65.66 |
||
|
26
|
26
37995-77A10-T01 SWITCH ASSY,P/W RRグレー; T2; 1999-11-01~2000-04-01 |
37995-77A10-T01 |
US $58.14 |
||
|
27
|
27
74360-78A00-000
スイッチ,リヤヒータ
T2; 1999-11-01~2000-04-01 |
74360-78A00-000 |
— | ||
| replacement | |||||
|
27
|
27
74360-78A10-000 SWITCH,REAR HTRT2; 1999-11-01~2000-04-01 |
74360-78A10-000 |
US $41.22 |
||
|
28
|
28
38500-61H00-000 HORN ASSY,LOW PITCHT2; 1999-11-01~2000-04-01 |
38500-61H00-000 |
US $71.39 |
||
|
29
|
29
01570-08123-000
Bolt
T2; 1999-11-01~2000-04-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
29
|
29
01570-0812A-000 BoltT2; 1999-11-01~2000-04-01 |
01570-0812A-000 |
US $14.40 |
||
|
30
|
30
39400-84811-000 LIGHTER ASSY,CIGARETTELighter assy, cigarette T2; 1999-11-01~2000-04-01 |
39400-84811-000 |
US $14.40 |
||
|
31
|
31
39471-84000-000 RIM,CIGAR LIGHTERT2; 1999-11-01~2000-04-01 |
39471-84000-000 |
US $16 |
||
|
32
|
32
09160-23007-000 WASHER(23X34X1)T2; 1999-11-01~2000-04-01 |
09160-23007-000 |
US $15.50 |
||
|
36
|
36
37190-76G10-000
SWITCH ASSY,RECEIVER KEYLESS
T2; 1999-11-01~2000-04-01 |
37190-76G10-000 |
— | ||
|
37
|
37
37193-76G10-000 LENS,KEY LESS RECEIVERT2; 1999-11-01~2000-04-01 |
37193-76G10-000 |
US $4.05 |
||
|
38
|
38
03511-04083-000
Screw
T2; 1999-11-01~2000-04-01 |
03511-04083-000 |
— | ||
| replacement | |||||
|
38
|
38
03511-0408B-000 SCREWT2; 1999-11-01~2000-04-01 |
03511-0408B-000 |
US $10.30 |
||
|
39
|
39
38700-76G23-000 CONTROLLER,PWR DR LOCKT2; 1999-11-01~2000-04-01 |
38700-76G23-000 |
US $267.20 |
||
|
40
|
40
38880-76A01-000 CONTROLLER ASSY,4ATT2; 1999-11-01~2000-04-01 |
38880-76A01-000 |
US $732.16 |
||
|
41
|
41
09159-06076-000 NUTT2; 1999-11-01~2000-04-01 |
09159-06076-000 |
from US $1.28 |
||
|
42
|
42
33925-76A00-000 COVER,AT CONTT2; 1999-11-01~2000-04-01 |
33925-76A00-000 |
US $9.90 |
||
|
43
|
43
09409-06314-5PK CLIP(BLACK)ブラック; T2; 1999-11-01~2000-04-01 |
09409-06314-5PK |
from US $1.46 |
||
|
44
|
44
38910-76A20-000
CONTROLLER ASSY,AIR BAG
T2; 1999-11-01~2000-04-01 |
38910-76A20-000 |
— | ||
|
45
|
45
09115-06001-000
Bolt, lh
T2; 1999-11-01~2000-04-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
45
|
45
09115-06005-000 BOLT(6X16)T2; 1999-11-01~2000-04-01 |
09115-06005-000 |
US $1.28 |
||
|
46
|
46
38881-78A01-T01
COVER
グレー; T2; 1999-11-01~2000-04-01 |
38881-78A01-T01 |
— | ||
|
47
|
47
03242-05103-000
Screw
T2; 1999-11-01~2000-04-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
47
|
47
03242-0510B-000 SCREWT2; 1999-11-01~2000-04-01 |
03242-0510B-000 |
US $0.76 |
||
|
47
|
47
03241-0510A-000 SCREWT2; 1999-11-01~2000-04-01 |
03241-0510A-000 |
from US $0.80 |
||
|
48
|
48
09409-05307-T01 CLIP(GRAY)Clip (gray) グレ-; T2; 1999-11-01~2000-04-01 |
09409-05307-T01 |
US $14.40 |
||
|
49
|
49
38918-76G00-000 LABEL,AIR BAG(MARK B)マークB; T2; 1999-11-01~2000-04-01 |
38918-76G00-000 |
US $2.87 |
||
|
50
|
50
38720-76A10-000
コントローラアッシ,パワーステアリング
T2; 1999-11-01~2000-04-01 |
38720-76A10-000 |
— | ||
| replacement | |||||
|
50
|
50
38720-76A20-000
CONTROLLER ASSY,PWR STEERING
T2; 1999-11-01~2000-04-01 |
38720-76A20-000 |
— | ||
|
51
|
51
02142-05163-000
Bolt
T2; 1999-11-01~2000-04-01 |
02142-05163-000 |
— | ||
| replacements | |||||
|
51
|
51
02142-0516B-000 SCREWT2; 1999-11-01~2000-04-01 |
02142-0516B-000 |
from US $0.80 |
||
|
51
|
51
02142-0516A-000 SCREWScrew T2; 1999-11-01~2000-04-01 |
02142-0516A-000 |
from US $0.76 |
||
|
53
|
53
37285-75F10-000 CAP,OPTION SW HOLET2:PN; 1999-11-01~2000-04-01 |
37285-75F10-000 |
US $2.80 |
||
|
54
|
54
38870-79A00-000 RELAY,POWER WINDOWT2; 1999-11-01~2000-04-01 |
38870-79A00-000 |
US $41.58 |
||
|
55
|
55
09139-05028-000 SCREW(5X14)T2; 1999-11-01~2000-04-01 |
09139-05028-000 |
US $11.40 |
||
