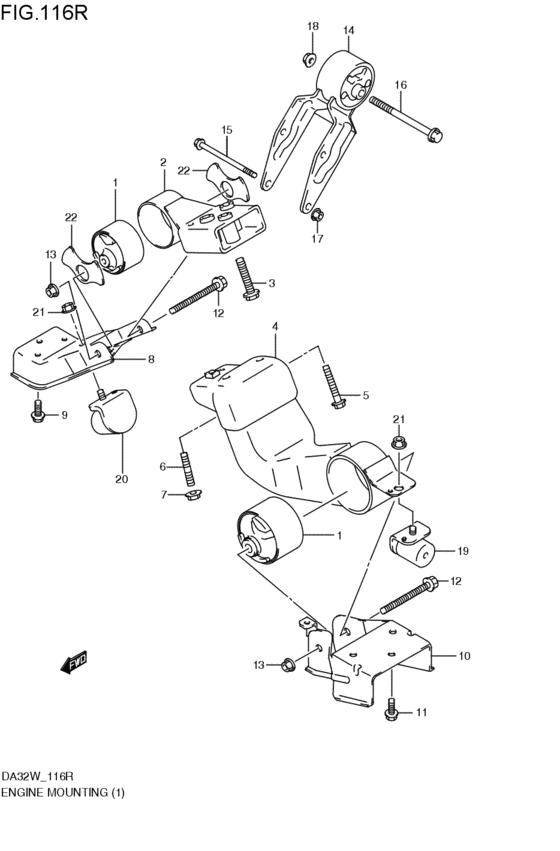

engine mounting (2WD:T1; 1999-06-01~1999-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1999
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- AT
- grade
- PN
- type
- T1
- limited
- NORMAL
- Roof
- NR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-50F10-000 BUSH,FR MTG2WD:T1; 1999-06-01~1999-11-01 |
11610-50F10-000 |
US $108.80 |
||
|
2
|
2
11620-76A00-000
BRACKET,FR MTG,R
2WD:T1; 1999-06-01~1999-11-01 |
11620-76A00-000 |
— | ||
|
3
|
3
01550-10253-000
Bolt
2WD:T1; 1999-06-01~1999-11-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-1025B-000 BoltBolt, rr swgarm bracket, l 2WD:T1; 1999-06-01~1999-11-01 |
01550-1025B-000 |
from US $5.59 |
||
|
3
|
3
01550-1025A-000 BOLTBolt, drive gear 2WD:T1; 1999-06-01~1999-11-01 |
01550-1025A-000 |
from US $1.06 |
||
|
4
|
4
11720-76A00-000
Bracket, eng mtg lh
2WD:T1; 1999-06-01~1999-11-01 |
11720-76A00-000 |
— | ||
| replacement | |||||
|
4
|
4
11720-76A01-000 BRACKET,FR MTG,L2WD:T1; 1999-06-01~1999-11-01 |
11720-76A01-000 |
US $126.59 |
||
|
5
|
5
01550-10203-000
Bolt
2WD:T1; 1999-06-01~1999-11-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-1020A-000 BOLTBolt, bal sprocket 2WD:T1; 1999-06-01~1999-11-01 |
01550-1020A-000 |
from US $0.96 |
||
|
6
|
6
01421-10203-000
Bolt,stud
2WD:T1; 1999-06-01~1999-11-01 |
01421-10203-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-1020A-000 BOLT,STUD2WD:T1; 1999-06-01~1999-11-01 |
01421-1020A-000 |
from US $3.96 |
||
|
7
|
7
08316-10103-000
Nut
2WD:T1; 1999-06-01~1999-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUT2WD:T1; 1999-06-01~1999-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
11630-78A00-000
BRACKET,FR MTG RH BODY
2WD:T1; 1999-06-01~1999-11-01 |
11630-78A00-000 |
— | ||
|
9
|
9
01551-10253-000
Bolt
2WD:T1; 1999-06-01~1999-11-01 |
01551-10253-000 |
— | ||
| replacement | |||||
|
9
|
9
01551-1025A-000 Bolt2WD:T1; 1999-06-01~1999-11-01 |
01551-1025A-000 |
US $1.12 |
||
|
10
|
10
11731-77A00-000
BRACKET,FR MTG LH BODY SIDE
2WD:T1; 1999-06-01~1999-11-01 |
11731-77A00-000 |
— | ||
|
11
|
11
01551-10253-000
Bolt
2WD:T1; 1999-06-01~1999-11-01 |
01551-10253-000 |
— | ||
| replacement | |||||
|
11
|
11
01551-1025A-000 Bolt2WD:T1; 1999-06-01~1999-11-01 |
01551-1025A-000 |
US $1.12 |
||
|
12
|
12
01550-10803-000
Bolt
2WD:T1; 1999-06-01~1999-11-01 |
01550-10803-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1080A-000 Bolt2WD:T1; 1999-06-01~1999-11-01 |
01550-1080A-000 |
US $21.70 |
||
|
13
|
13
08316-10103-000
Nut
2WD:T1; 1999-06-01~1999-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUT2WD:T1; 1999-06-01~1999-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
11810-76A00-000 MOUNTING,RR2WD:T1; 1999-06-01~1999-11-01 |
11810-76A00-000 |
US $71.76 |
||
|
15
|
15
01550-08953-000
Bolt
2WD:T1; 1999-06-01~1999-11-01 |
01550-08953-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0895B-000 BoltBolt, crankcase (8x95) 2WD:T1; 1999-06-01~1999-11-01 |
01550-0895B-000 |
US $24.70 |
||
|
15
|
15
01550-0895A-000 BOLT2WD:T1; 1999-06-01~1999-11-01 |
01550-0895A-000 |
from US $1.82 |
||
|
16
|
16
01550-10803-000
Bolt
2WD:T1; 1999-06-01~1999-11-01 |
01550-10803-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-1080A-000 Bolt2WD:T1; 1999-06-01~1999-11-01 |
01550-1080A-000 |
US $21.70 |
||
|
17
|
17
08316-10083-000
Nut
2WD:T1; 1999-06-01~1999-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUT2WD:T1; 1999-06-01~1999-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
08316-10103-000
Nut
2WD:T1; 1999-06-01~1999-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1010B-000 NUT2WD:T1; 1999-06-01~1999-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
19
|
19
11640-76A00-000 DAMPER,DYNAMIC2WD:T1; 1999-06-01~1999-11-01 |
11640-76A00-000 |
US $29.81 |
||
|
20
|
20
11640-78A10-000 DAMPER,DYNAMIC2WD:T1; 1999-06-01~1999-11-01 |
11640-78A10-000 |
US $18.95 |
||
|
21
|
21
08316-10083-000
Nut
2WD:T1; 1999-06-01~1999-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1008B-000 NUT2WD:T1; 1999-06-01~1999-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
22
|
22
11614-76A00-000
STOPPER,SIDE
2WD:T1; 1999-06-01~1999-11-01 |
11614-76A00-000 |
— | ||
