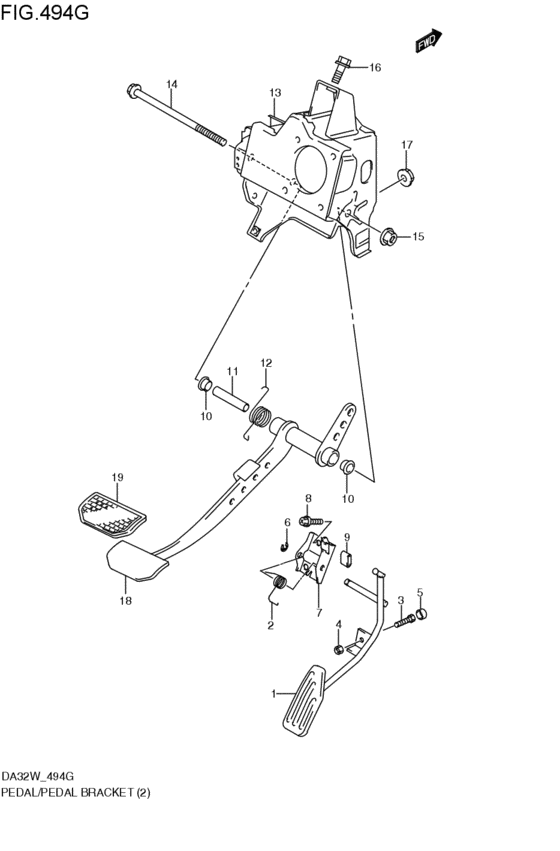

pedal / pedal bracket (199906 カラ 200004 マデ; T2; 1999-06-01~2000-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1999 - 2000
- Sales region
- Japan
- Engine
- G13B
- drive
- 4WD
- transmission
- AT
- grade
- PS
- type
- T2
- limited
- NORMAL
- Roof
- SR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-78A00-000
PEDAL,ACCELERATOR
T2; 1999-06-01~2000-04-01 |
49410-78A00-000 |
— | ||
|
2
|
2
49491-77A00-000
SPRING,ACCEL PEDAL RETURN
T2; 1999-06-01~2000-04-01 |
49491-77A00-000 |
— | ||
|
3
|
3
09100-06088-000 BOLT(6X30)T2; 1999-06-01~2000-04-01 |
09100-06088-000 |
US $22.40 |
||
|
4
|
4
08310-00063-000
Nut
T2; 1999-06-01~2000-04-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0006B-000 NUTNut gear shift link rod T2; 1999-06-01~2000-04-01 |
08310-0006B-000 |
from US $0.76 |
||
|
4
|
4
08310-0006A-000 NUTT2; 1999-06-01~2000-04-01 |
08310-0006A-000 |
from US $0.76 |
||
|
5
|
5
49452-76A00-000
CAP,ACCEL PEDAL STOPPER
T2; 1999-06-01~2000-04-01 |
49452-76A00-000 |
— | ||
|
6
|
6
08332-11073-000
E ring
T2; 1999-06-01~2000-04-01 |
08332-11073-000 |
— | ||
| replacement | |||||
|
6
|
6
08332-1107A-000 E RINGT2; 1999-06-01~2000-04-01 |
08332-1107A-000 |
from US $0.96 |
||
|
7
|
7
49511-76A00-000
Bracket, accelerator pedal
T2; 1999-06-01~2000-04-01 |
49511-76A00-000 |
— | ||
|
8
|
8
02162-06123-000
Bolt (6x12)
T2; 1999-06-01~2000-04-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt T2; 1999-06-01~2000-04-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket T2; 1999-06-01~2000-04-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
09329-01007-000 CUSHIONT2; 1999-06-01~2000-04-01 |
09329-01007-000 |
from US $3.74 |
||
|
10
|
10
09307-13005-000 BUSHBushing T2; 1999-06-01~2000-04-01 |
09307-13005-000 |
from US $2.72 |
||
|
11
|
11
49617-78A00-000 SPACER,BRAKE PEDALT2; 1999-06-01~2000-04-01 |
49617-78A00-000 |
US $7.69 |
||
|
12
|
12
49691-78A00-000 SPRING,PEDAL RETURNCHKK; T2; 1999-06-01~2000-04-01 |
49691-78A00-000 |
US $6.59 |
||
|
13
|
13
49710-78A11-000
BRACKET,PEDAL
T2; 1999-06-01~2000-04-01 |
49710-78A11-000 |
— | ||
|
14
|
14
09103-10142-000 BOLT(10X135)Bolt (10x135) T2; 1999-06-01~2000-04-01 |
09103-10142-000 |
from US $9.67 |
||
|
15
|
15
08316-10103-000
Nut
T2; 1999-06-01~2000-04-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1010B-000 NUTT2; 1999-06-01~2000-04-01 |
08316-1010B-000 |
from US $0.80 |
||
|
16
|
16
49738-78A00-000
Bolt, pedal bracket
T2; 1999-06-01~2000-04-01 |
49738-78A00-000 |
— | ||
| replacement | |||||
|
16
|
16
09135-08009-000 BOLT(8X20)T2; 1999-06-01~2000-04-01 |
09135-08009-000 |
US $25 |
||
|
17
|
17
08316-10083-000
Nut
T2; 1999-06-01~2000-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUTT2; 1999-06-01~2000-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
49610-63H10-000
PEDAL,BRAKE
T2; 1999-11-01~2000-04-01 |
49610-63H10-000 |
— | ||
|
19
|
19
49751-86300-000
Pad, brake pedal
T2; 1999-11-01~2000-04-01 |
49751-86300-000 |
— | ||
| replacement | |||||
|
19
|
19
49751-58J10-000 PAD,PEDALT2; 1999-11-01~2000-04-01 |
49751-58J10-000 |
from US $4.91 |
||
