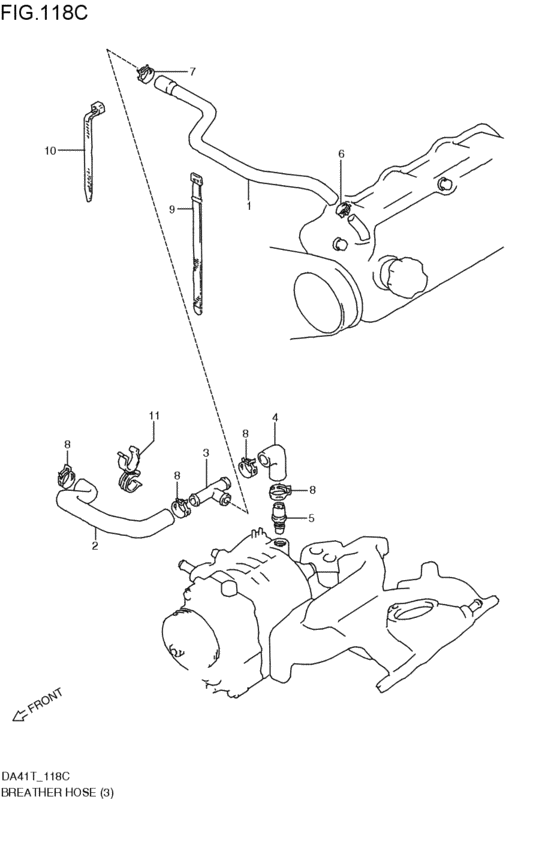

ブリーザホース (C:2V:SC:2WD; 1989-05-01~1989-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 1989
- Sales region
- Japan
- supercharge
- SC
- drive
- 2WD
- transmission
- MT
- grade
- KC
- number of the gears
- 5MT
- body
- K
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11191-63C10-000
ホース,ブリーザ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
11191-63C10-000 |
— | ||
|
2
|
2
11192-85300-000
ホース,ブリーザ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
11192-85300-000 |
— | ||
|
3
|
3
11197-85010-000 UNION,3WAY PCV HOSEC:2V:SC:2WD; 1989-05-01~1989-12-01 |
11197-85010-000 |
US $6.59 |
||
|
4
|
4
11193-85020-000
ホース,PCV
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
11193-85020-000 |
— | ||
|
5
|
5
18118-60C00-000 VALVE,PCVC:2V:SC:2WD; 1989-05-01~1989-12-01 |
18118-60C00-000 |
US $91.20 |
||
|
6
|
6
09401-13407-000
クリップ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-13407-000 |
— | ||
| replacement | |||||
|
6
|
6
09401-13419-000 CLIPC:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-13419-000 |
from US $1.60 |
||
|
7
|
7
09401-16402-000 Clip, 2nd air hose no.2C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-16402-000 |
US $2.15 |
||
| replacement | |||||
|
7
|
7
09401-16403-000 CLIPClip, 2nd air hose no.2 C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-16403-000 |
from US $3.86 |
||
|
8
|
8
09401-18402-000 クリップC:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-18402-000 |
US $1.10 |
||
| replacement | |||||
|
8
|
8
09401-18404-000 CLIPC:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-18404-000 |
from US $1.33 |
||
|
9
|
9
09407-22403-000 CLAMP(L:220)C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09407-22403-000 |
US $12.90 |
||
|
10
|
10
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09407-14403-000 |
from US $2.08 |
||
|
11
|
11
09408-00122-000
クランプ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09408-00122-000 |
— | ||
| replacement | |||||
|
11
|
11
34980-60B00-000 CLAMP,SPEEDOMETER CABLEClamp, fuel hose C:2V:SC:2WD; 1989-05-01~1989-12-01 |
34980-60B00-000 |
US $2.08 |
||
