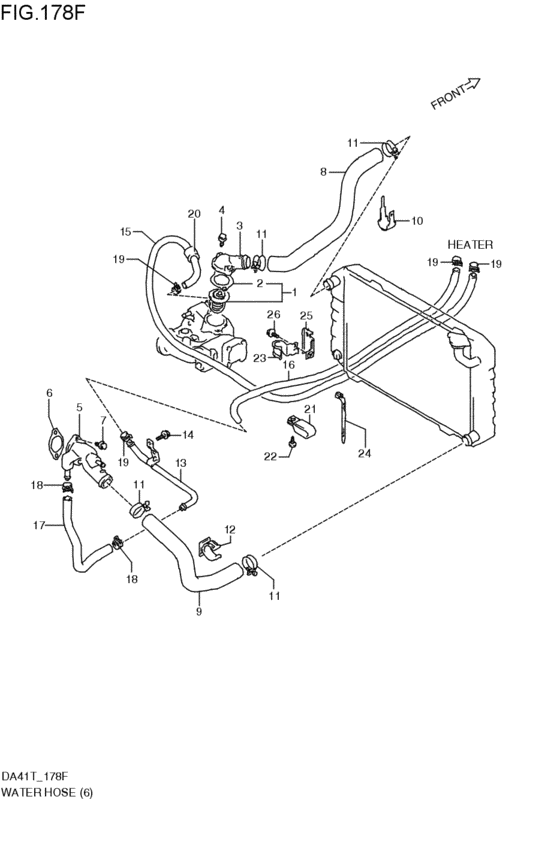

water hose (C:2V:SC:2WD; 1989-05-01~1989-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 1989
- Sales region
- Japan
- supercharge
- SC
- drive
- 2WD
- transmission
- MT
- grade
- KC
- number of the gears
- 5MT
- body
- K
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-85810-000
サーモスタットセット,ウォータ(82゜C)
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17600-85810-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-85811-000 THERMOSTAT SET,WATER 82 DEGC:2V:SC:2WD; 1989-05-01~1989-12-01 |
17600-85811-000 |
from US $18.88 |
||
|
1
|
1
17600-85820-000
サーモスタットセット,ウォータ(88゜C)
カンレイチシヨウ; C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17600-85820-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-85821-000 THERMOSTAT SET,WATER 88 DEGカンレイチシヨウ; C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17600-85821-000 |
from US $20.03 |
||
|
2
|
2
17569-82001-000
ガスケット,サーモキャップ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17569-82001-000 |
— | ||
| replacement | |||||
|
2
|
2
17569-82001-H17 GASKET,WTR THERMO CAPC:2V:SC:2WD; 1989-05-01~1989-12-01 |
17569-82001-H17 |
US $2.24 |
||
|
3
|
3
17561-85010-000
キャップ,サーモスタット
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17561-85010-000 |
— | ||
|
4
|
4
01517-08253-000
ボルト
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825A-000 BOLTC:2V:SC:2WD; 1989-05-01~1989-12-01 |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01550-0825B-000 BOLTC:2V:SC:2WD; 1989-05-01~1989-12-01 |
01550-0825B-000 |
from US $0.96 |
||
|
5
|
5
17550-85400-000
パイプ,ウォータ,インレット
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17550-85400-000 |
— | ||
| replacement | |||||
|
5
|
5
17550-85X50-000
PIPE,WATER INLET
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17550-85X50-000 |
— | ||
|
6
|
6
17559-73000-000
ガスケット,ウォータインレット
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17559-73000-000 |
— | ||
| replacement | |||||
|
6
|
6
17559-73010-000 GASKET,WATER INLET PIPEC:2V:SC:2WD; 1989-05-01~1989-12-01 |
17559-73010-000 |
from US $1.52 |
||
|
7
|
7
01517-06203-000
Bolt
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0620B-000 BOLTBolt, inspection cap C:2V:SC:2WD; 1989-05-01~1989-12-01 |
01550-0620B-000 |
from US $0.76 |
||
|
7
|
7
01550-0620A-000 BOLTC:2V:SC:2WD; 1989-05-01~1989-12-01 |
01550-0620A-000 |
from US $0.76 |
||
|
8
|
8
17841-63C00-000
ホース,ラジエータ,インレット
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17841-63C00-000 |
— | ||
| replacement | |||||
|
8
|
8
17841-63C10-000
ホース,ラジエータ,インレット
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17841-63C10-000 |
— | ||
|
9
|
9
17851-85581-000
ホース,ラジエータ,アウトレット
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17851-85581-000 |
— | ||
|
10
|
10
95781-85000-000 PROTECTOR,WATER HOSEC:2V:SC:2WD; 1989-05-01~1989-12-01 |
95781-85000-000 |
US $9.90 |
||
|
11
|
11
09400-36311-000
クランプ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09400-36311-000 |
— | ||
| replacement | |||||
|
11
|
11
09400-36312-000 CLAMPC:2V:SC:2WD; 1989-05-01~1989-12-01 |
09400-36312-000 |
from US $1.53 |
||
|
12
|
12
09403-32301-000 HOLDERC:2V:SC:2WD; 1989-05-01~1989-12-01 |
09403-32301-000 |
US $1.28 |
||
|
13
|
13
17880-63C10-000
パイプ,ヒータ,アウトレット
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17880-63C10-000 |
— | ||
|
14
|
14
01517-08123-000
ボルト
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
01517-08123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0812B-000 BoltPlug, drain C:2V:SC:2WD; 1989-05-01~1989-12-01 |
01550-0812B-000 |
from US $0.96 |
||
|
14
|
14
01550-0812A-000 BOLTC:2V:SC:2WD; 1989-05-01~1989-12-01 |
01550-0812A-000 |
from US $0.91 |
||
|
15
|
15
17874-72070-000 HOSEL:3000>1320; C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17874-72070-000 |
US $100.80 |
||
|
16
|
16
17874-72070-000 HOSEL:3000>1080; C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17874-72070-000 |
US $100.80 |
||
|
17
|
17
17873-85300-000
ホース,ヒータパイプ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17873-85300-000 |
— | ||
|
18
|
18
09401-20402-000
Clip, air hose no.3
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-20402-000 |
— | ||
| replacement | |||||
|
18
|
18
09401-20406-000 CLIPC:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-20406-000 |
US $1.98 |
||
|
19
|
19
09401-18401-000
Clamp
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-18401-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-18404-000 CLIPC:2V:SC:2WD; 1989-05-01~1989-12-01 |
09401-18404-000 |
from US $1.33 |
||
|
20
|
20
17885-60C00-000
クッション,ヒータホース
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17885-60C00-000 |
— | ||
| replacement | |||||
|
20
|
20
15868-67B00-000 PROTECTOR,FUEL HOSEC:2V:SC:2WD; 1989-05-01~1989-12-01 |
15868-67B00-000 |
US $2.56 |
||
|
21
|
21
09403-19401-000
クランプ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09403-19401-000 |
— | ||
| replacement | |||||
|
21
|
21
09403-19406-000 CLAMPC:2V:SC:2WD; 1989-05-01~1989-12-01 |
09403-19406-000 |
US $32.40 |
||
|
22
|
22
03141-06123-000
Screw 6x12
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0612A-000 SCREWC:2V:SC:2WD; 1989-05-01~1989-12-01 |
03141-0612A-000 |
US $0.76 |
||
|
23
|
23
09403-18304-000
クランプ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09403-18304-000 |
— | ||
|
24
|
24
09407-18402-000 CLAMP(L:165)Clamp (l:165) C:2V:SC:2WD; 1989-05-01~1989-12-01 |
09407-18402-000 |
from US $1.98 |
||
|
25
|
25
17879-60C00-000
ブラケット,ヒータホースクランプ
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
17879-60C00-000 |
— | ||
|
26
|
26
01517-06103-000
ボルト
C:2V:SC:2WD; 1989-05-01~1989-12-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0610A-000 BOLTC:2V:SC:2WD; 1989-05-01~1989-12-01 |
01550-0610A-000 |
from US $0.80 |
||
|
26
|
26
01550-0610B-000 BoltBolt C:2V:SC:2WD; 1989-05-01~1989-12-01 |
01550-0610B-000 |
from US $0.80 |
||
