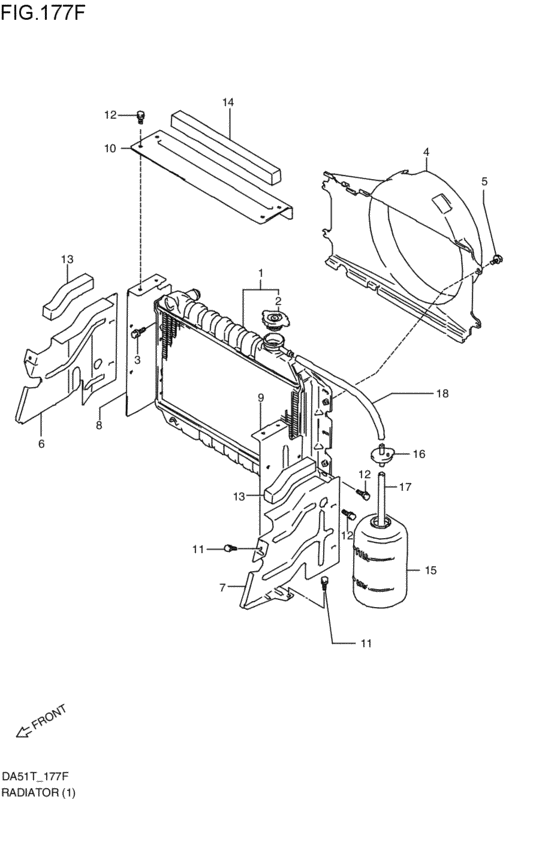

radiator (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1990
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- KA
- body
- K
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-70D00-000
Radiator assy
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17700-70D00-000 |
— | ||
|
2
|
2
17920-78020-000
CAP,0.9
TOYO; C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17920-78020-000 |
— | ||
|
3
|
3
01517-06103-000
ボルト
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610A-000 BOLTC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01550-0610A-000 |
from US $0.80 |
||
|
3
|
3
01550-0610B-000 BoltBolt C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01550-0610B-000 |
from US $0.80 |
||
|
4
|
4
17761-60C00-000
シュラウド,ファン
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17761-60C00-000 |
— | ||
|
5
|
5
01517-06123-000
Bolt
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLTC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
17811-70D00-000
ブラケット,ラジエータダクト,ライト
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17811-70D00-000 |
— | ||
|
7
|
7
17821-70D00-000
ブラケット,ラジエータダクト,レフト
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17821-70D00-000 |
— | ||
|
8
|
8
17812-70D00-000
ブラケット,ラジエータダクトリヤ,ライト
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17812-70D00-000 |
— | ||
|
9
|
9
17822-70D00-000
ブラケット,ラジエータダクトリヤ,レフト
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17822-70D00-000 |
— | ||
|
10
|
10
17831-70D00-000
ブラケット,ラジエータ,アッパ
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17831-70D00-000 |
— | ||
|
11
|
11
09116-06125-000
ボルト,6X16
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09116-06125-000 |
— | ||
| replacements | |||||
|
11
|
11
09116-06165-000 BOLT(6X16)Bolt, joint C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09116-06165-000 |
from US $4.13 |
||
|
11
|
11
09116-06144-000
Bolt
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09116-06144-000 |
— | ||
|
12
|
12
01517-06103-000
ボルト
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0610A-000 BOLTC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01550-0610A-000 |
from US $0.80 |
||
|
12
|
12
01550-0610B-000 BoltBolt C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01550-0610B-000 |
from US $0.80 |
||
|
13
|
13
17835-70D00-000
クッション,ラジエータダクト,フロント
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17835-70D00-000 |
— | ||
|
14
|
14
17836-70D00-000
クッション,ラジエータダクト,センタ
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17836-70D00-000 |
— | ||
|
15
|
15
17931-72000-000
タンク,ウォータリザーブ
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17931-72000-000 |
— | ||
| replacement | |||||
|
15
|
15
17931-80001-000 TANK,WATER RESERVEC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17931-80001-000 |
US $33.60 |
||
|
16
|
16
17932-79000-000
Cap,reserve tank
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17932-79000-000 |
— | ||
| replacement | |||||
|
16
|
16
17932-72000-000
Cap,reserve tank
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
17932-72000-000 |
— | ||
|
17
|
17
09352-70121-300
Hose 7x12.1x600
L:300>170; C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09352-70121-300 |
— | ||
| replacement | |||||
|
17
|
17
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:300>170; C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09352-70121-600 |
from US $5.93 |
||
|
18
|
18
09352-70121-300
Hose 7x12.1x600
L:300>190; C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09352-70121-300 |
— | ||
| replacement | |||||
|
18
|
18
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:300>190; C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09352-70121-600 |
from US $5.93 |
||
