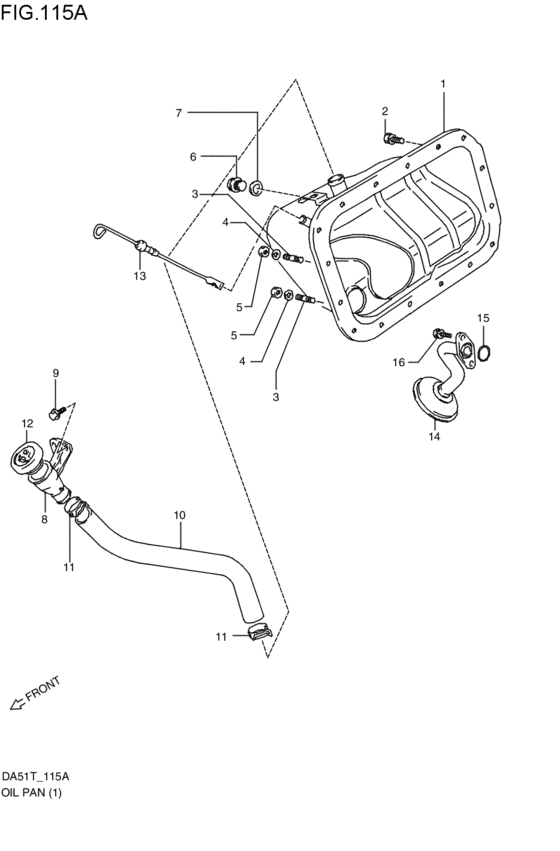

oil pan (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1990 - 1991
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- TA
- body
- T
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-60C04-000
パン,オイル
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
11510-60C04-000 |
— | ||
| replacement | |||||
|
1
|
1
11510-60C06-000
PAN,OIL
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
11510-60C06-000 |
— | ||
|
2
|
2
09117-06033-000 BOLT(6X12)C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09117-06033-000 |
US $1.06 |
||
|
3
|
3
01411-06123-000
Bolt, stud
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0612A-000 BOLT,STUDC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01411-0612A-000 |
from US $0.67 |
||
|
4
|
4
08321-21063-000 Lock washerC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCKC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
08310-11063-000 Nut m6x1x5C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUTC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09247-14027-000 PLUG(14X11.5)Plug, oil drain C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
6
|
6
09247-14044-000 DRAIN PLUG (M14x1.5)C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09247-14044-000 |
from US $1.33 |
||
|
7
|
7
09168-14012-000
Washer
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09168-14012-000 |
— | ||
| replacement | |||||
|
7
|
7
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09168-14015-000 |
from US $1.17 |
||
|
8
|
8
11531-60C00-000 FILLER,OILC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
11531-60C00-000 |
US $10.41 |
||
|
9
|
9
01517-06123-000
Bolt
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BOLTBolt, clamp C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 BOLTC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
11541-60C00-000
HOSE,OIL FILLER
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
11541-60C00-000 |
— | ||
|
11
|
11
09401-30402-000
Clip
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09401-30402-000 |
— | ||
| replacement | |||||
|
11
|
11
09401-30404-000 CLAMPClip C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09401-30404-000 |
from US $7.65 |
||
|
12
|
12
16921-60C00-000 Cap,oil fillerC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
16921-60C00-000 |
US $13.60 |
||
|
13
|
13
16910-60C21-000
ゲージ,オイルレベル
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
16910-60C21-000 |
— | ||
| replacement | |||||
|
13
|
13
16910-60C2V-000 GAUGE,OIL LEVELC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
16910-60C2V-000 |
US $10.19 |
||
|
14
|
14
16520-70D00-000
STRAINER,OIL PUMP
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
16520-70D00-000 |
— | ||
|
15
|
15
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
09280-16005-000 |
from US $1.40 |
||
|
16
|
16
01137-06163-000
ボルト
C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01137-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01570-0616B-000 BoltC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01570-0616B-000 |
from US $0.80 |
||
|
16
|
16
01570-0616A-000 BoltC:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01 |
01570-0616A-000 |
from US $0.80 |
||
