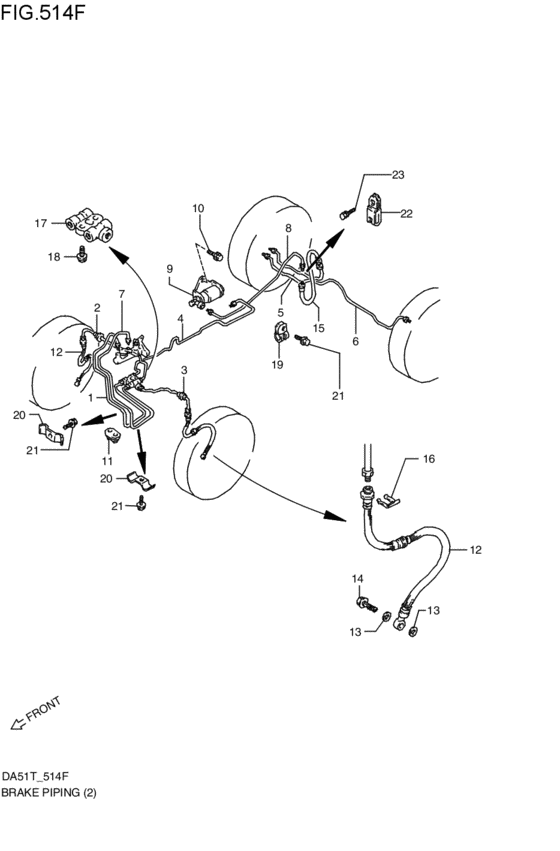

brakes piping (C:2WD:(TC,KC); 1990-01-01~1991-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1990
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- TC
- body
- T
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-70D01-000
パイプ,ブレーキ,NO.1
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51410-70D01-000 |
— | ||
|
2
|
2
51420-85000-000
パイプ,ブレーキ,NO.2
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51420-85000-000 |
— | ||
|
3
|
3
51430-85000-000
パイプ,ブレーキ,NO.3
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51430-85000-000 |
— | ||
|
4
|
4
51460-85011-000
パイプ,ブレーキ,NO.6
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51460-85011-000 |
— | ||
|
5
|
5
51470-85000-000 PIPE,RR BK HOSE TO R BK ASSYC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51470-85000-000 |
US $13.28 |
||
|
6
|
6
51480-85000-000
PIPE,R BK ASSY TO L BK ASSY
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51480-85000-000 |
— | ||
|
7
|
7
51510-70D00-000
パイプ,ブレーキ,NO.12
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51510-70D00-000 |
— | ||
|
8
|
8
51350-85011-000
パイプ,ブレーキ,NO.15
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51350-85011-000 |
— | ||
|
9
|
9
51940-85002-000
バルブアッシ,G.P
G.P; C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51940-85002-000 |
— | ||
|
10
|
10
01517-06123-000
Bolt
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLTC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
51751-85000-000 GROMMET,BRAKE PIPEC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51751-85000-000 |
US $2.24 |
||
|
12
|
12
51540-85752-000 HOSE,FR BRAKE FLEXIBLEC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51540-85752-000 |
US $54.10 |
||
|
13
|
13
09161-10009-000 WASHER(10X15X1.5)Lock washer C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
09161-10009-000 |
from US $1.06 |
||
|
14
|
14
09360-10026-000 Union boltC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
09360-10026-000 |
from US $1.85 |
||
|
15
|
15
51540-85050-000
ホース,リヤブレーキフレキシブル
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51540-85050-000 |
— | ||
| replacement | |||||
|
15
|
15
51560-70F00-000 HOSE,RR BRAKE FLEXIBLEC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51560-70F00-000 |
US $29.99 |
||
|
16
|
16
09383-13001-000 E RINGC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
16
|
16
09383-13003-000 E-RINGC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
09383-13003-000 |
from US $1.60 |
||
|
17
|
17
51640-85030-000 JOINT,5WAY BRAKEC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
51640-85030-000 |
US $45.60 |
||
|
18
|
18
01517-06203-000
Bolt
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0620B-000 BOLTBolt, inspection cap C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01550-0620B-000 |
from US $0.76 |
||
|
18
|
18
01550-0620A-000 BOLTC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01550-0620A-000 |
from US $0.76 |
||
|
19
|
19
09403-06401-000 CLAMPC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
09403-06401-000 |
from US $2.08 |
||
|
20
|
20
09403-07312-000 CLAMPC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
09403-07312-000 |
from US $0.92 |
||
|
21
|
21
09132-06006-000 SCREW(6X12)C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
09132-06006-000 |
US $1.60 |
||
|
22
|
22
09403-06404-000 CLAMPC:2WD:(TC,KC); 1990-01-01~1991-08-01 |
09403-06404-000 |
US $2.72 |
||
|
23
|
23
01137-06123-000
ボルト
C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01137-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
01570-0612A-000 BOLTBolt C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01570-0612A-000 |
from US $0.80 |
||
|
23
|
23
01570-0612B-000 BOLTBolt, upper C:2WD:(TC,KC); 1990-01-01~1991-08-01 |
01570-0612B-000 |
US $0.80 |
||
