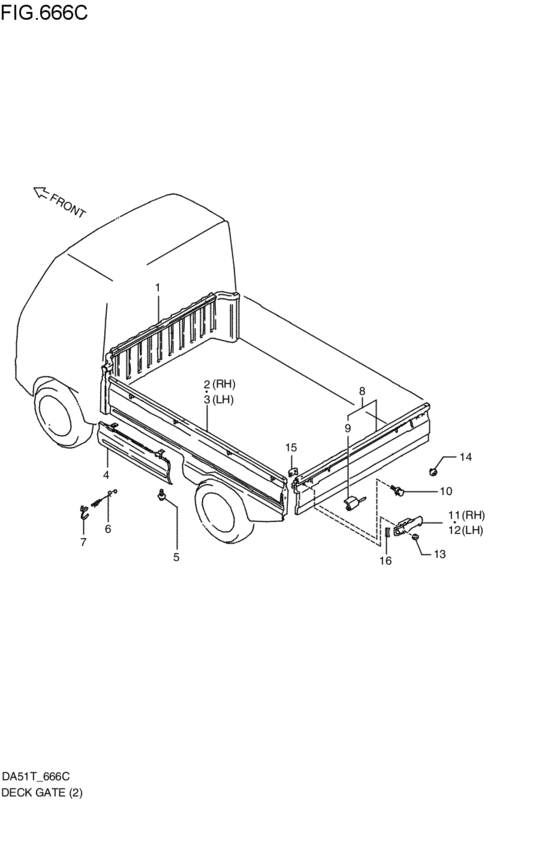

deck gate (キャリイ:イッポウカイ; C:(TU,TA,TC); 1990-01-01~1991-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1990
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- TC
- body
- T
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66600-85081-000
パネルアッシ,デッキ,フロント
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
66600-85081-000 |
— | ||
|
2
|
2
67100-70D80-000
パネルアッシ,デッキサイド,ライト
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
67100-70D80-000 |
— | ||
|
3
|
3
67400-70D80-000
パネルアッシ,デッキサイド,レフト
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
67400-70D80-000 |
— | ||
|
4
|
4
67430-85080-000
PANEL,SIDE SERVICE LID
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
67430-85080-000 |
— | ||
|
5
|
5
09116-06001-000 BOLT(6X12)C:(TU,TA,TC); 1990-01-01~1991-08-01 |
09116-06001-000 |
US $9.60 |
||
|
6
|
6
73961-79000-000 SPRING,SIDE SERVICEC:(TU,TA,TC); 1990-01-01~1991-08-01 |
73961-79000-000 |
US $6.33 |
||
|
7
|
7
73962-79000-000 HOOK,SIDE SERVICE LIDC:(TU,TA,TC); 1990-01-01~1991-08-01 |
73962-79000-000 |
US $3.28 |
||
|
8
|
8
67700-60C80-000
REAR GATE ASSY
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
67700-60C80-000 |
— | ||
|
9
|
9
67170-85090-000 HINGE,SIDE GATEC:(TU,TA,TC); 1990-01-01~1991-08-01 |
67170-85090-000 |
US $28.13 |
||
|
10
|
10
09103-06076-000
Bolt,6x16
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
09103-06076-000 |
— | ||
|
11
|
11
72870-60C10-000
ハンドル,リヤゲートロック,ライト
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
72870-60C10-000 |
— | ||
| replacement | |||||
|
11
|
11
72870-51F01-000 HANDLE,REAR GATE LOCKC:(TU,TA,TC); 1990-01-01~1991-08-01 |
72870-51F01-000 |
US $31.20 |
||
|
12
|
12
72880-60C10-000
ハンドル,リヤゲートロック,レフト
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
72880-60C10-000 |
— | ||
| replacement | |||||
|
12
|
12
72870-51F01-000 HANDLE,REAR GATE LOCKC:(TU,TA,TC); 1990-01-01~1991-08-01 |
72870-51F01-000 |
US $31.20 |
||
|
13
|
13
08316-16066-000
Nut
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
08316-16066-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUTC:(TU,TA,TC); 1990-01-01~1991-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
73941-79000-000
ストッパ,ゲートオープン
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
73941-79000-000 |
— | ||
| replacement | |||||
|
14
|
14
73941-79010-000 STOPPER,GATE OPENC:(TU,TA,TC); 1990-01-01~1991-08-01 |
73941-79010-000 |
from US $5.25 |
||
|
15
|
15
72867-70D00-000
PROTECTOR,DECK SIDE REAR
C:(TU,TA,TC); 1990-01-01~1991-08-01 |
72867-70D00-000 |
— | ||
|
16
|
16
72893-70D00-000 PROTECTOR,GATE LOCK HANDLEC:(TU,TA,TC); 1990-01-01~1991-08-01 |
72893-70D00-000 |
US $1.60 |
||
